One-Piece toilet for SensoWash®One-Piece toilet for SensoWash® DimensionDimension WeightWeight Order numberOrder number
only in combination with SensoWash, syphonic, 12" rough-in,
with dual flush piston valve, top flush, connecting elements for
SensoWash with concealed connections included, vertical outlet,
cUPC® listed*, 1.32/0.92 gpf
ColorsColors
00 White 20 HygieneGlaze (an antibacterial ceramic glaze that
provides almost indefinite effectiveness)
VariantVariant
© ADA height 15 3/8" x 28" Inch 126 lb 212151..01
© ADA height 15 3/8" x 28" Inch 126 lb 212151..01
InfoboxInfobox
* Complies with following standards: ASME A112.19.2/CSA B45.1 and ASME A112.19.14
Sanitary ceramics with the special WonderGliss surface finish will remain clean and attractive-looking for a long
time to come.
When ordering WonderGliss please add a "1" as eleventh digit to the model number.
Mounting set for One-Piece and Two-Piece toilets, outlet 3/8" male thread, wall connection 1/2" - female thread, 1/2'', North
American version
15" Inch 1.1 lb 001431
Suitable productsSuitable products
SensoWash® Starck C shower-toilet seat for Happy D.2* Rear-,
Lady- and Comfortwash, power actuated lid and seat, individual
adjustment of water-, air- and seat surface temperature as well
as nozzle position and jet strength, remote control included,
with concealed connections, 2 individually programmable user
profiles, heated seat, night light, warm air dryer, Quick release:
easy seat unit removal and attachment, on / off-button, selfcleaning wand, 14 5/8" x 20 1/4" Inch
14 5/8" x 20 1/4" Inch 610300
All drawings contain the necessary measurements which are subject to standard tolerances. They are stated in inch & mm and are nonbinding. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished ceramic piece.

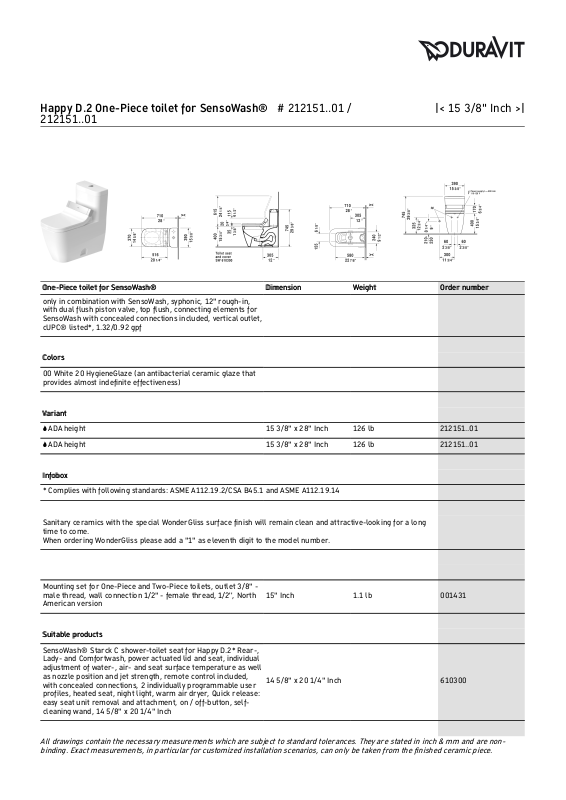

Happy D.2 One-Piece toilet for SensoWash® # 212151..01 /
212151..01
|< 15 3/8" Inch >|
