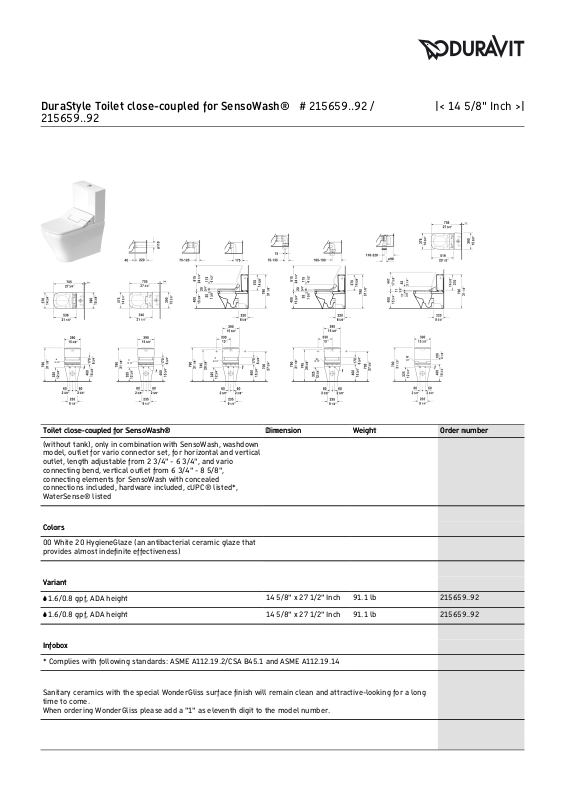

Toilet close-coupled for SensoWash®Toilet close-coupled for SensoWash® DimensionDimension WeightWeight Order numberOrder number
(without tank), only in combination with SensoWash, washdown
model, outlet for vario connector set, for horizontal and vertical
outlet, length adjustable from 2 3/4" - 6 3/4", and vario
connecting bend, vertical outlet from 6 3/4" - 8 5/8",
connecting elements for SensoWash with concealed
connections included, hardware included, cUPC® listed*,
WaterSense® listed
ColorsColors
00 White 20 HygieneGlaze (an antibacterial ceramic glaze that
provides almost indefinite effectiveness)
VariantVariant
© 1.6/0.8 gpf, ADA height
14 5/8" x 27 1/2" Inch 91.1 lb 215659..92
© 1.6/0.8 gpf, ADA height
14 5/8" x 27 1/2" Inch 91.1 lb 215659..92
InfoboxInfobox
* Complies with following standards: ASME A112.19.2/CSA B45.1 and ASME A112.19.14
Sanitary ceramics with the special WonderGliss surface finish will remain clean and attractive-looking for a long
time to come.
When ordering WonderGliss please add a "1" as eleventh digit to the model number.
DuraStyle Toilet close-coupled for SensoWash® # 215659..92 /
215659..92
|< 14 5/8" Inch >|
Page 2
Vario connecting bend for vertical outlet 1.5 lb 899025
Vario connector set incl. offset Ø 4 3/8" Inch 3.3 lb 001422
Suitable productsSuitable products
Tank with dual flush mechanism, Chrome, for bottom left
supply, cUPC® listed*, WaterSense® listed, 15 3/8" x 6 3/4"
Inch
15 3/8" x 6 3/4" Inch 093510
SensoWash® Starck C shower-toilet seat for DuraStyle* Rear-,
Lady- and Comfortwash, individual adjustment of water-, airand seat surface temperature as well as nozzle position and jet
strength, heated seat, warm air dryer, power actuated lid and
seat, night light, 2 individually programmable user profiles,
remote control included, self-cleaning wand, on / off-button,
with concealed connections, Quick release: easy seat unit
removal and attachment, 14 3/4" x 20 1/2" Inch
14 3/4" x 20 1/2" Inch 610200
SensoWash® Slim shower-toilet seat for DuraStyle* Rear-,
Lady- and Comfortwash, with slow close, night light, remote
control included, locking function via remote control, selfcleaning wand, on / off-button, with concealed connections,
automatic drainage in periods of prolonged disuse, 14 3/4" x 21
1/4" Inch
14 3/4" x 21 1/4" Inch 611200
All drawings contain the necessary measurements which are subject to standard tolerances. They are stated in inch & mm and are nonbinding. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished ceramic piece.
DuraStyle Toilet close-coupled for SensoWash® # 215659..92 /
215659..92
|< 14 5/8" Inch >|
