Washbasin groundWashbasin ground DimensionDimension WeightWeight Order numberOrder number
with faucet deck, hardware included, wall-mounted, cUPC®
listed*, 39 3/8" Inch
ColorsColors
00 White 08 Black
VariantVariant
p _ _ p with overflow 39 3/8" x 18 1/2" Inch 62.2 lb 045410..26
InfoboxInfobox
* Complies with following standards: ASME A112.19.2/CSA B45.1, When installing ceramics larger than 39 3/8", 2
sets of basin hardware # 6951000000 are required, Recommended in connection with two single lever basin
mixers, When mounting 2 one-hole faucets, required space in between is # 045412, 235012 = 22 1/4" and #
045410, 235010 = 18 1/4"
Sanitary ceramics with the special WonderGliss surface finish will remain clean and attractive-looking for a long
time to come.
When ordering WonderGliss please add a "1" as eleventh digit to the model number.
Accessory for ceramicsAccessory for ceramics
Push button drain assembly for washbasins with overflow 2" Inch 0.8 lb 005052
Design Siphon 3.3 lb 005036
Suitable productsSuitable products

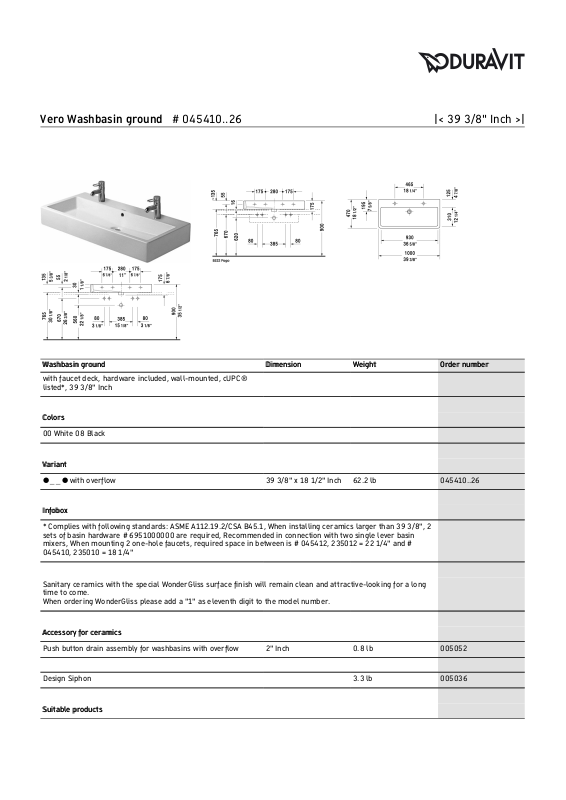

Vero Washbasin ground # 045410..26 |< 39 3/8" Inch >|
Page 2
Vanity unit wall-mounted 2 drawers, upper drawer including
cut-out for siphon and siphon cover, countertop including one
cut-out, for 1 above-counter basin centered, 47 1/4" x 21 5/8"
Inch
47 1/4" x 21 5/8" Inch KT6656
Vanity unit wall-mounted 1 pull-out compartment, countertop
including one cut-out, 48 5/8" x 22 1/4" Inch
48 5/8" x 22 1/4" Inch S19528 L/M/R
Vanity unit for console wall-mounted 1 pull-out compartment,
47 1/4" x 21 5/8" Inch
47 1/4" x 21 5/8" Inch XS4902
Vanity unit for console wall-mounted 2 drawers, upper drawer
including cut-out for siphon and siphon cover, 47 1/4" x 21 5/8"
Inch
47 1/4" x 21 5/8" Inch XS4912
Vanity unit for console floorstanding 2 pull-out compartments,
integrated legs with height adjustment, 47 1/4" x 21 5/8" Inch
47 1/4" x 21 5/8" Inch XS4922
All drawings contain the necessary measurements which are subject to standard tolerances. They are stated in inch & mm and are nonÂbinding. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished ceramic piece.
Vero Washbasin ground # 045410..26 |< 39 3/8" Inch >|
