Double furniture washbasinDouble furniture washbasin DimensionDimension WeightWeight Order numberOrder number
with overflow, with faucet deck, underside fully glazed,
hardware included, wall-mounted, 51 1/8" Inch
ColorsColors
00 White
VariantVariant
p
51 1/8" x 18 7/8" Inch 72.7 lb 2338130000
p p p
51 1/8" x 18 7/8" Inch 72.7 lb 2338130030
InfoboxInfobox
When installing ceramics larger than 47 1/4", 2 sets of basin hardware # 6951000000 are required, When
combined with pedestal or siphon cover, 2 of each are mandatory, Washbasin is not ADA compliant in combination
with pedestal, siphon cover or metal console
Push button drain assembly for washbasins with overflow 2" Inch 0.8 lb 005052
Siphon for washbasin with outlet pipe 11 3/4" 1 1/4" Inch 1.3 lb 005026
Design Siphon 3.3 lb 005036
Suitable productsSuitable products
Siphon cover for # 231955, 231960, 231965, 232012, 232010,
232080, 232065, 233813, 232460, 232455, 235714,
085830
Pedestal for # 231955, 231960, 231965, 232012, 232010,
232080, 232065, 233813, 232460, 232455, 235714,
085829
Vanity unit wall-mounted 1 pull-out compartment, for DuraStyle
# 233813, 48 3/8" x 17 3/4" Inch
48 3/8" x 17 3/4" Inch DS6398

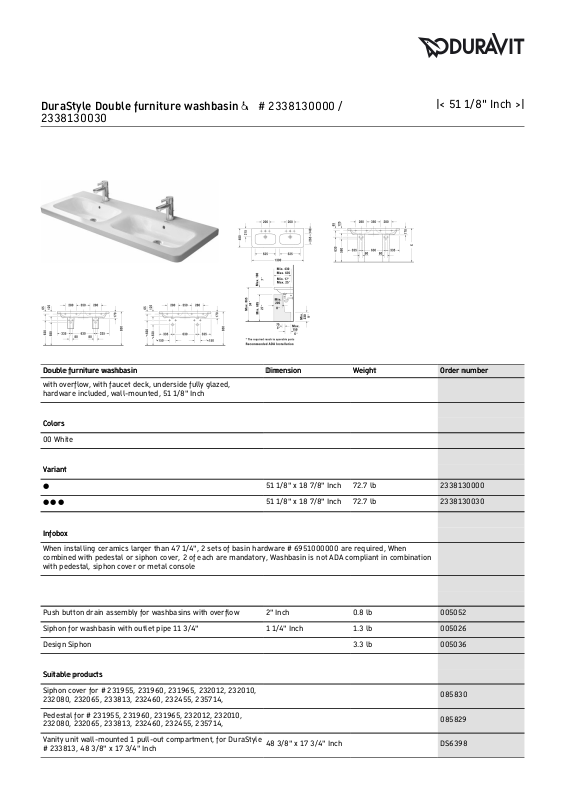

DuraStyle Double furniture washbasin Ÿ # 2338130000 /
2338130030
|< 51 1/8" Inch >|
Page 2
Vanity unit wall-mounted 2 drawers, upper drawer including
cut-out for siphon and siphon cover, for DuraStyle # 233813, 48
3/8" x 17 3/4" Inch
48 3/8" x 17 3/4" Inch DS6498
All drawings contain the necessary measurements which are subject to standard tolerances. They are stated in inch & mm and are nonbinding. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished ceramic piece.
DuraStyle Double furniture washbasin Ÿ # 2338130000 /
2338130030
|< 51 1/8" Inch >|
