Page 1
BathtubBathtub DimensionDimension WeightWeight Order numberOrder number
rectangle, drop-in or for panel, with two backrest slopes,
cUPC® listed*, Sanitary acrylic , Filling capacity 47.5 gal
ColorsColors
00 White
VariantVariant
incl. support frame, Base tub 70 7/8" x 31 1/2" Inch 75 lb 700298000000090
InfoboxInfobox
* Complies with the following standards: CSA B45.5/IAPMO Z124
Suitable panelsSuitable panels
Panel for niche (alcove), for # 700298 (70 7/8" x 31 1/2") 70 1/2" Inch DS8939
Panel for back-to-wall, for # 700298 (70 7/8" x 31 1/2") 70 1/2" x 31 1/8" Inch DS8778
Panel for corner right, for # 700298 (70 7/8" x 31 1/2") 70 1/2" x 31 1/8" Inch DS8783
Panel for corner left, for # 700298 (70 7/8" x 31 1/2") 70 1/2" x 31 1/8" Inch DS8788
Suitable productsSuitable products
Tile flange , 790112
Cable-driven waste and overflow , 790219
Bathtub anchors for mounting and support of bathtubs and
shower trays, 3 pieces,
790103
Cable-driven waste and overflow brass, 790250
Support frame (included), for bathtubs, 790133

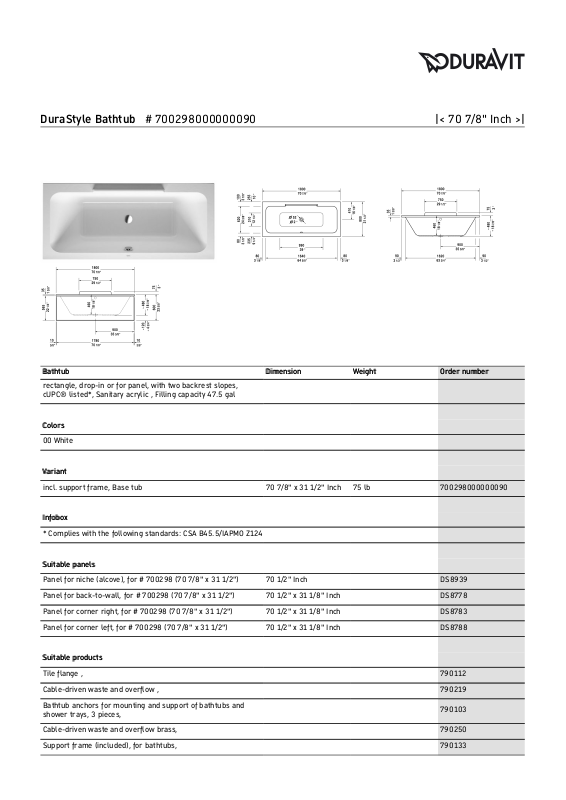

DuraStyle Bathtub # 700298000000090 |< 70 7/8" Inch >|
Page 2
All drawings contain the necessary measurements which are subject to standard tolerances. They are stated in inch & mm and are nonÂbinding. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished ceramic piece.
DuraStyle Bathtub # 700298000000090 |< 70 7/8" Inch >|
