Duravit CBWE1825 Specifications

Page 1

Two-Piece toilet Duravit Rimless®Two-Piece toilet Duravit Rimless® DimensionDimension WeightWeight Order numberOrder number

(without tank), WaterSense® listed, syphonic, 12" rough-in, vertical outlet, cUPC® listed*

ColorsColors

00 White 20 HygieneGlaze (an antibacterial ceramic glaze that provides almost indefinite effectiveness)

VariantVariant

14 3/8" x 27 3/4" Inch 72.8 lb 218801..00

14 3/8" x 27 3/4" Inch 72.8 lb 218801..85

InfoboxInfobox

* Complies with following standards: ASME A112.19.2/CSA B45.1 and ASME A112.19.14

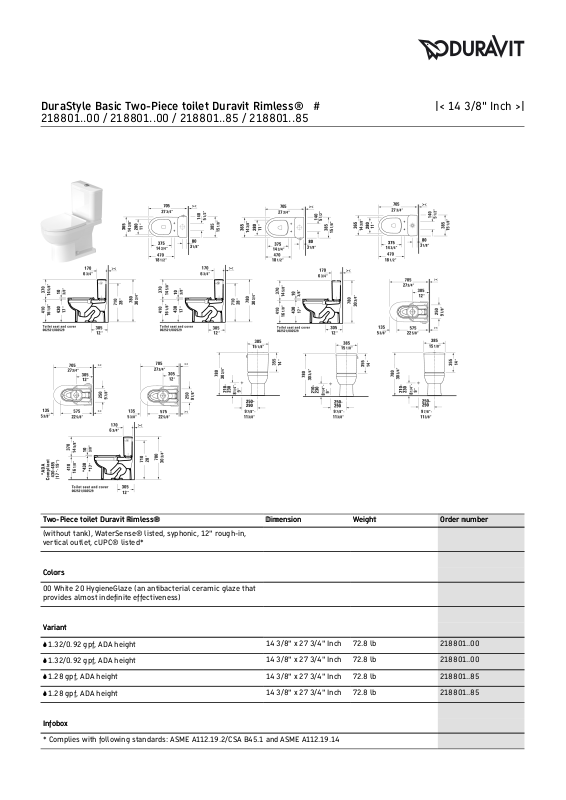

DuraStyle Basic Two-Piece toilet Duravit Rimless® #

218801..00 / 218801..00 / 218801..85 / 218801..85

|< 14 3/8" Inch >|

Page 2

Sanitary ceramics with the special WonderGliss surface finish will remain clean and attractive-looking for a long time to come. When ordering WonderGliss please add a "1" as eleventh digit to the model number.

Mounting set for One-Piece and Two-Piece toilets, outlet 3/8" male thread, wall connection 1/2" - female thread, 1/2'', North American version

17 3/4" Inch 1.1 lb 001417

Suitable productsSuitable products

Toilet seat and cover removable, elongated, hinges stainless steel, without slow close,

002521

Tank with dual flush piston valve, top flush, for bottom left supply, 1.32/0.92 gpf, WaterSense® listed, 15 1/8" x 6 3/4" Inch

15 1/8" x 6 3/4" Inch 094160

Tank for bottom left supply, 1.28 gpf, WaterSense® listed, 15 1/8" x 6 3/4" Inch

15 1/8" x 6 3/4" Inch 094150

Toilet seat and cover removable, elongated, hinges stainless steel, with slow close,

002529

All drawings contain the necessary measurements which are subject to standard tolerances. They are stated in inch & mm and are nonbinding. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished ceramic piece.

DuraStyle Basic Two-Piece toilet Duravit Rimless® #

218801..00 / 218801..00 / 218801..85 / 218801..85

|< 14 3/8" Inch >|
