Page 1
One-Piece toiletOne-Piece toilet DimensionDimension WeightWeight Order numberOrder number
back-to-wall, syphonic, 12" rough-in, with single flush piston
valve, top flush, suitable for SensoWash Starck, vertical outlet,
cUPC® listed*, 1.28 gpf
ColorsColors
00 White 20 HygieneGlaze (an antibacterial ceramic glaze that
provides almost indefinite effectiveness)
VariantVariant
© 15 3/4" x 28 1/8" Inch 106.5 lb 212301..05
© 15 3/4" x 28 1/8" Inch 106.5 lb 212301..05
InfoboxInfobox
* Complies with following standards: ASME A112.19.2/CSA B45.1, For suitable SensoWash® shower-toilet seats,
please see matrix on page xxx
Sanitary ceramics with the special WonderGliss surface finish will remain clean and attractive-looking for a long
time to come.
When ordering WonderGliss please add a "1" as eleventh digit to the model number.

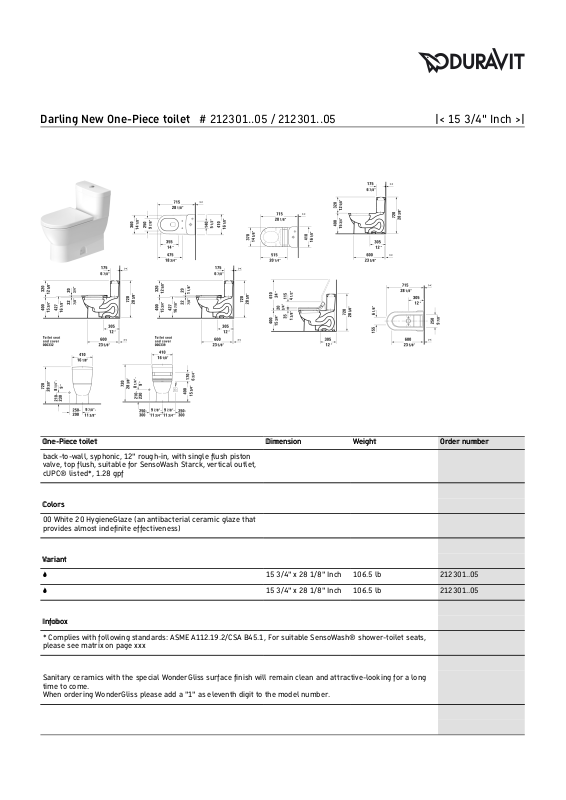

Darling New One-Piece toilet # 212301..05 / 212301..05 |< 15 3/4" Inch >|
Page 2
Mounting set for One-Piece and Two-Piece toilets, outlet 3/8" male thread, wall connection 1/2" - female thread, 1/2'', North
American version
17 3/4" Inch 1.1 lb 001417
Suitable productsSuitable products
SensoWash® Starck shower-toilet seat for Starck 2, Starck 3
and Darling New* Rear-, Lady- and Comfortwash, individual
adjustment of water-, air- and seat surface temperature as well
as nozzle position and jet strength, power actuated lid and seat,
night light, 2 individually programmable user profiles, remote
control included, self-cleaning wand, on / off-button, Quick
release: easy seat unit removal and attachment, 14 5/8" x 20
1/4" Inch
14 5/8" x 20 1/4" Inch 610000
Toilet seat and cover elongated, hinges stainless steel, without
slow close,
006332
Toilet seat and cover elongated, hinges stainless steel,
removable, with slow close,
006339
All drawings contain the necessary measurements which are subject to standard tolerances. They are stated in inch & mm and are nonbinding. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished ceramic piece.
Darling New One-Piece toilet # 212301..05 / 212301..05 |< 15 3/4" Inch >|
