Page 1

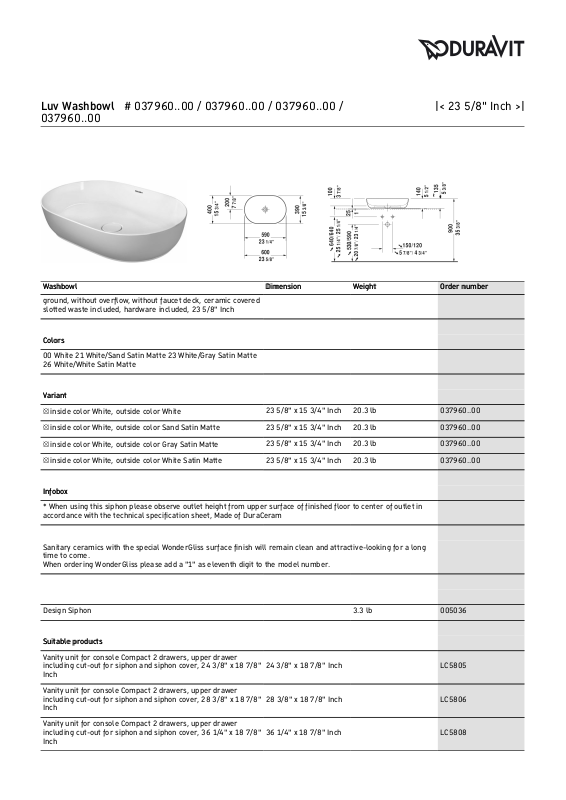

WashbowlWashbowl DimensionDimension WeightWeight Order numberOrder number
ground, without overflow, without faucet deck, ceramic covered
slotted waste included, hardware included, 23 5/8" Inch
ColorsColors
00 White 21 White/Sand Satin Matte 23 White/Gray Satin Matte
26 White/White Satin Matte
VariantVariant
• inside color White, outside color White
23 5/8" x 15 3/4" Inch 20.3 lb 037960..00
• inside color White, outside color Sand Satin Matte
23 5/8" x 15 3/4" Inch 20.3 lb 037960..00
• inside color White, outside color Gray Satin Matte
23 5/8" x 15 3/4" Inch 20.3 lb 037960..00
• inside color White, outside color White Satin Matte
23 5/8" x 15 3/4" Inch 20.3 lb 037960..00
InfoboxInfobox
* When using this siphon please observe outlet height from upper surface of finished floor to center of outlet in
accordance with the technical specification sheet, Made of DuraCeram
Sanitary ceramics with the special WonderGliss surface finish will remain clean and attractive-looking for a long
time to come.
When ordering WonderGliss please add a "1" as eleventh digit to the model number.
Design Siphon 3.3 lb 005036
Suitable productsSuitable products
Vanity unit for console Compact 2 drawers, upper drawer
including cut-out for siphon and siphon cover, 24 3/8" x 18 7/8"
Inch
24 3/8" x 18 7/8" Inch LC5805
Vanity unit for console Compact 2 drawers, upper drawer
including cut-out for siphon and siphon cover, 28 3/8" x 18 7/8"
Inch
28 3/8" x 18 7/8" Inch LC5806
Vanity unit for console Compact 2 drawers, upper drawer
including cut-out for siphon and siphon cover, 36 1/4" x 18 7/8"
Inch
36 1/4" x 18 7/8" Inch LC5808
Luv Washbowl # 037960..00 / 037960..00 / 037960..00 /
037960..00
|< 23 5/8" Inch >|
Page 2
Vanity unit for console Compact 2 drawers, upper drawer
including cut-out for siphon and siphon cover, 40 1/8" x 18 7/8"
Inch
40 1/8" x 18 7/8" Inch LC5809
Vanity unit for console 2 drawers, upper drawer including cutout for siphon and siphon cover, 24 3/8" x 21 5/8" Inch
24 3/8" x 21 5/8" Inch LC5815
Vanity unit for console 2 drawers, upper drawer including cutout for siphon and siphon cover, 28 3/8" x 21 5/8" Inch
28 3/8" x 21 5/8" Inch LC5816
Vanity unit for console 2 drawers, upper drawer including cutout for siphon and siphon cover, 32 1/4" x 21 5/8" Inch
32 1/4" x 21 5/8" Inch LC5817
Vanity unit for console 2 drawers, upper drawer including cutout for siphon and siphon cover, 36 1/4" x 21 5/8" Inch
36 1/4" x 21 5/8" Inch LC5818
Vanity unit for console 2 drawers, upper drawer including cutout for siphon and siphon cover, 40 1/8" x 21 5/8" Inch
40 1/8" x 21 5/8" Inch LC5819
Vanity unit for console floorstanding 1 pull-out compartment,
52 5/8" x 22 1/2" Inch
52 5/8" x 22 1/2" Inch LU9561
Vanity unit for console floorstanding 2 pull-out compartments,
68 1/4" x 22 1/2" Inch
68 1/4" x 22 1/2" Inch LU9562 B
Vanity unit for console floorstanding 2 pull-out compartments,
68 1/4" x 22 1/2" Inch
68 1/4" x 22 1/2" Inch LU9563 L/R
Vanity unit for console floorstanding 1 pull-out compartment,
25 1/4" x 17 3/4" Inch
25 1/4" x 17 3/4" Inch LU9560
Vanity unit for console floorstanding 1 drawer, 1 pull-out
compartment, upper drawer including cut-out for siphon and
siphon cover, 25 1/4" x 17 3/4" Inch
25 1/4" x 17 3/4" Inch LU9565
Vanity unit for console floorstanding 1 drawer, 1 pull-out
compartment, upper drawer including cut-out for siphon and
siphon cover, 52 5/8" x 22 1/2" Inch
52 5/8" x 22 1/2" Inch LU9566
Vanity unit for console floorstanding 2 drawers, 2 pull-out
compartments, upper drawer including cut-out for siphon and
siphon cover, 68 1/4" x 22 1/2" Inch
68 1/4" x 22 1/2" Inch LU9567 B
Vanity unit for console floorstanding 2 drawers, 2 pull-out
compartments, 68 1/4" x 22 1/2" Inch
68 1/4" x 22 1/2" Inch LU9568 L/R
Vanity unit for console wall-mounted 1 pull-out compartment,
31 1/2" x 21 5/8" Inch
31 1/2" x 21 5/8" Inch XS4900
Vanity unit for console wall-mounted 1 pull-out compartment,
39 3/8" x 21 5/8" Inch
39 3/8" x 21 5/8" Inch XS4901
Vanity unit for console wall-mounted 1 pull-out compartment,
47 1/4" x 21 5/8" Inch
47 1/4" x 21 5/8" Inch XS4902
Vanity unit for console wall-mounted 2 drawers, upper drawer
including cut-out for siphon and siphon cover, 31 1/2" x 21 5/8"
Inch
31 1/2" x 21 5/8" Inch XS4910
Vanity unit for console wall-mounted 2 drawers, upper drawer
including cut-out for siphon and siphon cover, 39 3/8" x 21 5/8"
Inch
39 3/8" x 21 5/8" Inch XS4911
Vanity unit for console wall-mounted 2 drawers, upper drawer
including cut-out for siphon and siphon cover, 47 1/4" x 21 5/8"
Inch
47 1/4" x 21 5/8" Inch XS4912
Vanity unit for console floorstanding 2 pull-out compartments,
integrated legs with height adjustment, 31 1/2" x 21 5/8" Inch
31 1/2" x 21 5/8" Inch XS4920
Luv Washbowl # 037960..00 / 037960..00 / 037960..00 /
037960..00
|< 23 5/8" Inch >|
Page 3
Vanity unit for console floorstanding 2 pull-out compartments,
integrated legs with height adjustment, 39 3/8" x 21 5/8" Inch
39 3/8" x 21 5/8" Inch XS4921
Vanity unit for console floorstanding 2 pull-out compartments,
integrated legs with height adjustment, 47 1/4" x 21 5/8" Inch
47 1/4" x 21 5/8" Inch XS4922
Vanity unit for console wall-mounted 2 pull-out compartments,
55 1/8" x 21 5/8" Inch
55 1/8" x 21 5/8" Inch XS4903 L/R
Vanity unit for console wall-mounted 2 pull-out compartments,
63" x 21 5/8" Inch
63" x 21 5/8" Inch XS4904 R/L
Vanity unit for console wall-mounted 4 drawers, 55 1/8" x 21
5/8" Inch
55 1/8" x 21 5/8" Inch XS4913 L/R
Vanity unit for console wall-mounted 4 drawers, 63" x 21 5/8"
Inch
63" x 21 5/8" Inch XS4914 L/R
Vanity unit for console floorstanding 4 pull-out compartments,
integrated legs with height adjustment, 55 1/8" x 21 5/8" Inch
55 1/8" x 21 5/8" Inch XS4923 R/L
Vanity unit for console floorstanding 4 pull-out compartments,
integrated legs with height adjustment, 63" x 21 5/8" Inch
63" x 21 5/8" Inch XS4924 L/R
Vanity unit for console wall-mounted 2 pull-out compartments,
55 1/8" x 2" Inch
55 1/8" x 2" Inch XS4906 B
Vanity unit for console wall-mounted 2 pull-out compartments,
63" x 21 5/8" Inch
63" x 21 5/8" Inch XS4907 B
Vanity unit for console wall-mounted 4 drawers, upper drawer
including cut-out for siphon and siphon cover, 55 1/8" x 21 5/8"
Inch
55 1/8" x 21 5/8" Inch XS4916 B
Vanity unit for console wall-mounted 4 drawers, upper drawer
including cut-out for siphon and siphon cover, 63" x 21 5/8"
Inch
63" x 21 5/8" Inch XS4917 B
Vanity unit for console floorstanding 4 pull-out compartments,
integrated legs with height adjustment, 55 1/8" x 21 5/8" Inch
55 1/8" x 21 5/8" Inch XS4926 B
Vanity unit for console floorstanding 4 pull-out compartments,
integrated legs with height adjustment, 63" x 21 5/8" Inch
63" x 21 5/8" Inch XS4927 B
Vanity unit for console floorstanding 1 pull-out compartment,
36 7/8" x 22 1/2" Inch
36 7/8" x 22 1/2" Inch LU9564
Vanity unit for console floorstanding 1 drawer, 1 pull-out
compartment, upper drawer including cut-out for siphon and
siphon cover, 36 7/8" x 22 1/2" Inch
36 7/8" x 22 1/2" Inch LU9569
Console for above-counter basin and vanity basin 1 console with
one cut-out, price per section of 3 7/8", basic price until 31
1/2", 1 3/4" thickness, 21 5/8" Inch
21 5/8" Inch LC102C
Console for above-counter basin and vanity basin 1 console with
two cut-outs, price per section of 3 7/8", basic price until 31
1/2", 1 3/4" thickness, 21 5/8" Inch
21 5/8" Inch LC103C
Console for above-counter basin and vanity basin 1 console with
one cut-out, price per section of 3 7/8", basic price until 31
1/2", 1 1/8" thickness, 21 5/8" Inch
21 5/8" Inch LC106C
Console for above-counter basin and vanity basin 1 console with
two cut-outs, price per section of 3 7/8", basic price until 31
1/2", 1 1/8" thickness, 21 5/8" Inch
21 5/8" Inch LC107C
Luv Washbowl # 037960..00 / 037960..00 / 037960..00 /
037960..00
|< 23 5/8" Inch >|
Page 4
Console for above-counter basin and vanity basin Compact 1
console with one cut-out, price per section of 3 7/8", basic price
until 31 1/2", 1 3/4" thickness, 18 7/8" Inch
18 7/8" Inch LC100C
Console for above-counter basin and vanity basin Compact 1
console with two cut-outs, price per section of 3 7/8", basic
price until 31 1/2", 1 3/4" thickness, 18 7/8" Inch
18 7/8" Inch LC101C
Console for above-counter basin and vanity basin Compact 1
console with one cut-out, price per section of 3 7/8", basic price
until 31 1/2", 1 1/8" thickness, 18 7/8" Inch
18 7/8" Inch LC104C
Console for above-counter basin and vanity basin Compact 1
console with two cut-outs, price per section of 3 7/8", basic
price until 31 1/2", 1 1/8" thickness, 18 7/8" Inch
18 7/8" Inch LC105C
Vanity unit wall-mounted 1 pull-out compartment, 1 console
with one cut-out, 51 1/8" x 21 5/8" Inch
51 1/8" x 21 5/8" Inch WT4977 L/R
Vanity unit wall-mounted 1 pull-out compartment, 1 console
with two cut-outs, 51 1/8" x 21 5/8" Inch
51 1/8" x 21 5/8" Inch WT4978 B
Vanity unit wall-mounted 2 drawers, upper drawer including
cut-out for siphon and siphon cover, 1 console with one cut-out,
31 1/2" x 21 5/8" Inch
31 1/2" x 21 5/8" Inch WT4985
Vanity unit wall-mounted 2 drawers, upper drawer including
cut-out for siphon and siphon cover, 1 console with one cut-out,
39 3/8" x 21 5/8" Inch
39 3/8" x 21 5/8" Inch WT4986
Vanity unit wall-mounted 2 drawers, upper drawer including
cut-out for siphon and siphon cover, 1 console with one cut-out,
51 1/8" x 21 5/8" Inch
51 1/8" x 21 5/8" Inch WT4987 L/R
Vanity unit wall-mounted 2 drawers, upper drawer including
cut-out for siphon and siphon cover, 1 console with two cutouts, 51 1/8" x 21 5/8" Inch
51 1/8" x 21 5/8" Inch WT4988 B
Vanity unit wall-mounted 1 pull-out compartment, 1 console
with one cut-out, 51 1/8" x 21 5/8" Inch
51 1/8" x 21 5/8" Inch WT4982 L/R
Vanity unit wall-mounted 1 pull-out compartment, 1 console
with two cut-outs, 51 1/8" x 21 5/8" Inch
51 1/8" x 21 5/8" Inch WT4983 B
Vanity unit wall-mounted 2 drawers, upper drawer including
cut-out for siphon and siphon cover, 1 console with one cut-out,
31 1/2" x 21 5/8" Inch
31 1/2" x 21 5/8" Inch WT4990
Vanity unit wall-mounted 2 drawers, upper drawer including
cut-out for siphon and siphon cover, 1 console with one cut-out,
39 3/8" x 21 5/8" Inch
39 3/8" x 21 5/8" Inch WT4991
Vanity unit wall-mounted 2 drawers, upper drawer including
cut-out for siphon and siphon cover, 1 console with one cut-out,
51 1/8" x 21 5/8" Inch
51 1/8" x 21 5/8" Inch WT4992 L/R
Vanity unit wall-mounted 2 drawers, upper drawer including
cut-out for siphon and siphon cover, 1 console with two cutouts, 51 1/8" x 21 5/8" Inch
51 1/8" x 21 5/8" Inch WT4993 B
Vanity unit wall-mounted 1 pull-out compartment, 1 console
with one cut-out, 31 1/2" x 21 5/8" Inch
31 1/2" x 21 5/8" Inch DE4947
Vanity unit wall-mounted 1 pull-out compartment, 1 console
with one cut-out, 39 3/8" x 21 5/8" Inch
39 3/8" x 21 5/8" Inch DE4948
Vanity unit wall-mounted 1 pull-out compartment, 1 console
with one cut-out, 47 1/4" x 21 5/8" Inch
47 1/4" x 21 5/8" Inch DE4949
Luv Washbowl # 037960..00 / 037960..00 / 037960..00 /
037960..00
|< 23 5/8" Inch >|
Page 5
Vanity unit wall-mounted 1 drawer, 1 pull-out compartment,
upper drawer including cut-out for siphon and siphon cover, 1
console with one cut-out, 31 1/2" x 21 5/8" Inch
31 1/2" x 21 5/8" Inch DE4967
Vanity unit wall-mounted 1 drawer, 1 pull-out compartment,
upper drawer including cut-out for siphon and siphon cover, 1
console with one cut-out, 39 3/8" x 21 5/8" Inch
39 3/8" x 21 5/8" Inch DE4968
Vanity unit wall-mounted 1 drawer, 1 pull-out compartment,
upper drawer including cut-out for siphon and siphon cover, 1
console with one cut-out, 47 1/4" x 21 5/8" Inch
47 1/4" x 21 5/8" Inch DE4969
All drawings contain the necessary measurements which are subject to standard tolerances. They are stated in inch & mm and are nonbinding. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished ceramic piece.
Luv Washbowl # 037960..00 / 037960..00 / 037960..00 /
037960..00
|< 23 5/8" Inch >|
Loading...
