One-Piece toilet Duravit Rimless®One-Piece toilet Duravit Rimless® DimensionDimension WeightWeight Order numberOrder number
rimless, syphonic, 12" rough-in, vertical outlet, 1.28 gpf
ColorsColors
00 White 20 HygieneGlaze (an antibacterial ceramic glaze that
provides almost indefinite effectiveness)
VariantVariant
with single flush mechanism with side lever left 14 3/8" x 28 1/8" Inch 91.9 lb 219501..U3
with single flush mechanism with side lever right 14 3/8" x 28 1/8" Inch 91.9 lb 219501..U4
with single flush mechanism with side lever left 14 3/8" x 28 1/8" Inch 91.9 lb 219501..U3
with single flush mechanism with side lever right 14 3/8" x 28 1/8" Inch 91.9 lb 219501..U4
Sanitary ceramics with the special WonderGliss surface finish will remain clean and attractive-looking for a long
time to come.
When ordering WonderGliss please add a "1" as eleventh digit to the model number.
Mounting set for One-Piece and Two-Piece toilets, outlet 3/8" male thread, wall connection 1/2" - female thread, 1/2'', North
American version
17 3/4" Inch 1.1 lb 001417

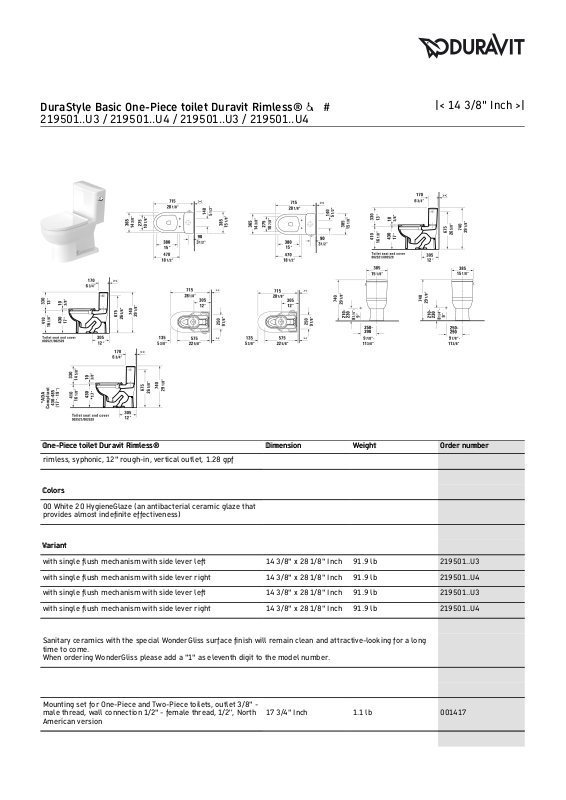

DuraStyle Basic One-Piece toilet Duravit Rimless® Ÿ #
219501..U3 / 219501..U4 / 219501..U3 / 219501..U4
|< 14 3/8" Inch >|
Page 2
Suitable productsSuitable products
Toilet seat and cover removable, elongated, hinges stainless
steel, without slow close,
002521
Toilet seat and cover removable, elongated, hinges stainless
steel, with slow close,
002529
All drawings contain the necessary measurements which are subject to standard tolerances. They are stated in inch & mm and are nonbinding. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished ceramic piece.
DuraStyle Basic One-Piece toilet Duravit Rimless® Ÿ #
219501..U3 / 219501..U4 / 219501..U3 / 219501..U4
|< 14 3/8" Inch >|
