Page 1
Two-piece toilet for SensoWash®Two-piece toilet for SensoWash® DimensionDimension WeightWeight Order numberOrder number
(without tank), only in combination with SensoWash, syphonic,
12" rough-in, connecting elements for SensoWash with
concealed connections included, vertical outlet, cUPC® listed*,
WaterSense® listed, 1.28 gpf
ColorsColors
00 White 20 HygieneGlaze (an antibacterial ceramic glaze that
provides almost indefinite effectiveness)
VariantVariant
©
14 5/8" x 27 1/2" Inch 78.3 lb 212651..00
©
14 5/8" x 27 1/2" Inch 78.3 lb 212651..00
InfoboxInfobox
* Complies with following standards: ASME A112.19.2/CSA B45.1
Sanitary ceramics with the special WonderGliss surface finish will remain clean and attractive-looking for a long
time to come.
When ordering WonderGliss please add a "1" as eleventh digit to the model number.
Mounting set for One-Piece and Two-Piece toilets, outlet 3/8" male thread, wall connection 1/2" - female thread, 1/2'', North
American version
17 3/4" Inch 1.1 lb 001417
Suitable productsSuitable products
Tank with single flush piston valve, top flush, bottom left supply,
cUPC® listed*, WaterSense® listed, 1.28 gpf, 16" x 6 7/8" Inch
16" x 6 7/8" Inch 093120

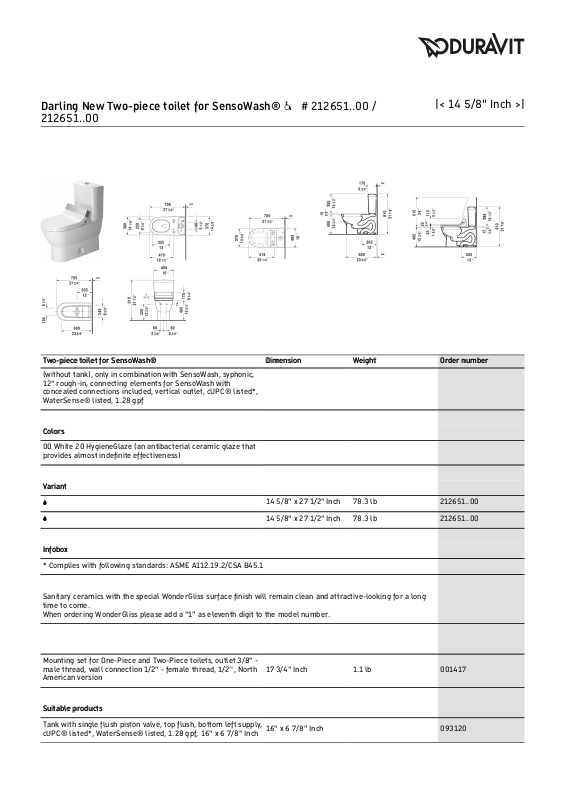

Darling New Two-piece toilet for SensoWash® Ÿ # 212651..00 /
212651..00
|< 14 5/8" Inch >|
Page 2
SensoWash® Starck C shower-toilet seat for ME by Starck,
Starck 2, Starck 3 and Darling New* Rear-, Lady- and
Comfortwash, individual adjustment of water-, air- and seat
surface temperature as well as nozzle position and jet strength,
heated seat, warm air dryer, power actuated lid and seat, night
light, 2 individually programmable user profiles, remote control
included, self-cleaning wand, on / off-button, with concealed
connections, Quick release: easy seat unit removal and
attachment, 14 5/8" x 20 1/4" Inch
14 5/8" x 20 1/4" Inch 610001
All drawings contain the necessary measurements which are subject to standard tolerances. They are stated in inch & mm and are nonbinding. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished ceramic piece.
Darling New Two-piece toilet for SensoWash® Ÿ # 212651..00 /
212651..00
|< 14 5/8" Inch >|
