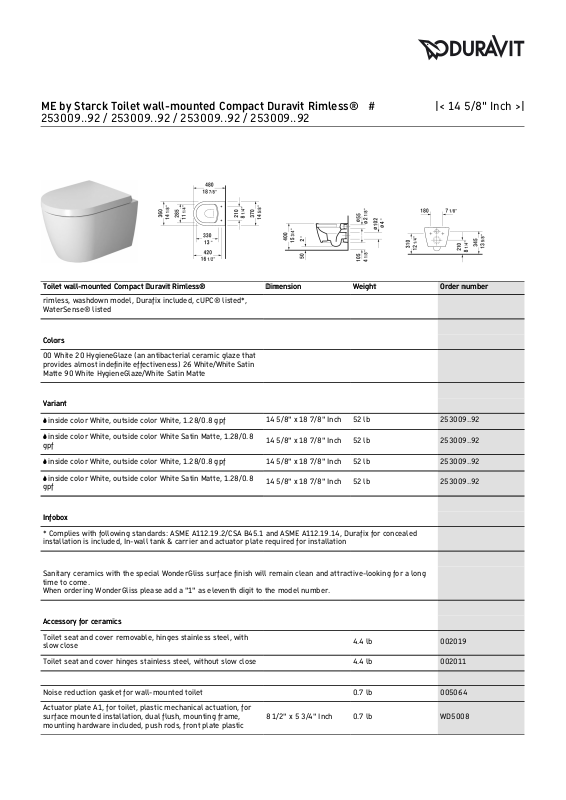

Page 1
Toilet wall-mounted Compact Duravit Rimless®Toilet wall-mounted Compact Duravit Rimless® DimensionDimension WeightWeight Order numberOrder number
rimless, washdown model, Durafix included, cUPC® listed*,
WaterSense® listed
ColorsColors
00 White 20 HygieneGlaze (an antibacterial ceramic glaze that
provides almost indefinite effectiveness) 26 White/White Satin
Matte 90 White HygieneGlaze/White Satin Matte
VariantVariant
© inside color White, outside color White, 1.28/0.8 gpf
14 5/8" x 18 7/8" Inch 52 lb 253009..92
© inside color White, outside color White Satin Matte, 1.28/0.8
gpf
14 5/8" x 18 7/8" Inch 52 lb 253009..92
© inside color White, outside color White, 1.28/0.8 gpf
14 5/8" x 18 7/8" Inch 52 lb 253009..92
© inside color White, outside color White Satin Matte, 1.28/0.8
gpf
14 5/8" x 18 7/8" Inch 52 lb 253009..92
InfoboxInfobox
* Complies with following standards: ASME A112.19.2/CSA B45.1 and ASME A112.19.14, Durafix for concealed
installation is included, In-wall tank & carrier and actuator plate required for installation
Sanitary ceramics with the special WonderGliss surface finish will remain clean and attractive-looking for a long
time to come.
When ordering WonderGliss please add a "1" as eleventh digit to the model number.
Accessory for ceramicsAccessory for ceramics
Toilet seat and cover removable, hinges stainless steel, with
slow close
4.4 lb 002019
Toilet seat and cover hinges stainless steel, without slow close 4.4 lb 002011
Noise reduction gasket for wall-mounted toilet 0.7 lb 005064
Actuator plate A1, for toilet, plastic mechanical actuation, for
surface mounted installation, dual flush, mounting frame,
mounting hardware included, push rods, front plate plastic
8 1/2" x 5 3/4" Inch 0.7 lb WD5008
ME by Starck Toilet wall-mounted Compact Duravit Rimless® #
253009..92 / 253009..92 / 253009..92 / 253009..92
|< 14 5/8" Inch >|
Page 2
Toilet in-wall tank & carrier, Standard WaterSense® listed, For
2"x4" and 2"x6" wall installation, for toilets with a projection of
<= 24 5/8", adjustable feet 0" - 9 1/2", SensoWash ready,
mechanical front flush actuation, includes in-wall tank, marking
of filling height, dual flush, insulated against condensation,
Scope of delivery, HDPE wall-mounted toilet connection bend
DN 90/90, PE wall-mounted toilet connection set DN 90, wallmounted mounting rods M12, mounting hardware included, 2
bolt caps, cUPC® listed*, Load capacity = 880 lbs
23 1/4" x 45 1/4" Inch 35.3 lb WD1022
All drawings contain the necessary measurements which are subject to standard tolerances. They are stated in inch & mm and are nonbinding. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished ceramic piece.
ME by Starck Toilet wall-mounted Compact Duravit Rimless® #
253009..92 / 253009..92 / 253009..92 / 253009..92
|< 14 5/8" Inch >|
