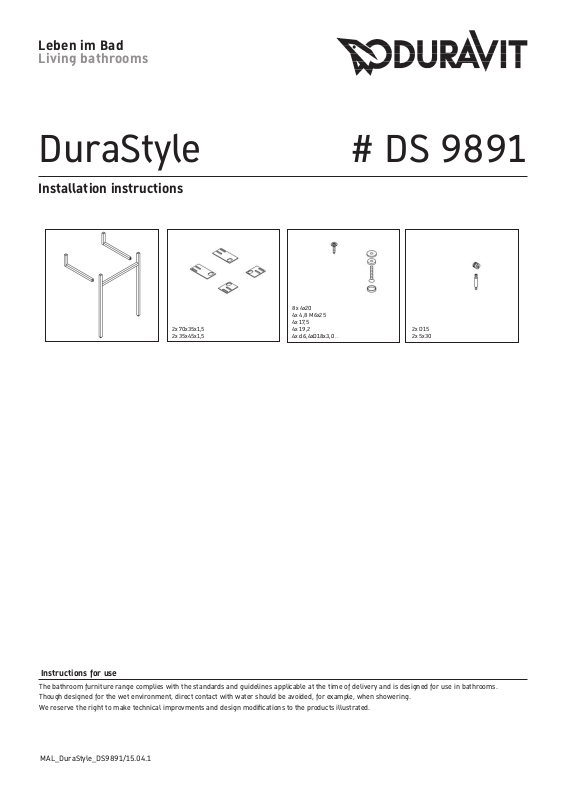

Page 1
Leben im Bad
Living bathrooms
DuraStyle
Installation instructions
2x 70x35x1,5
2x 35x45x1,5
8x 4x20
4x 4,8 M6x25
4x 17,5
4x 19,2
4x d6,4xD18x3,0
# DS 9891
2x D15
2x 5x30
Instructions for use
The bathroom furniture range complies with the standards and guidelines applicable at the time of delivery and is designed for use in bathrooms.
Though designed for the wet environment, direct contact with water should be avoided, for example, when showering.
We reserve the right to make technical improvments and design modifications to the products illustrated.
MAL_DuraStyle_DS9891/15.04.1
Page 2
1 2
3
Using screw driver, screw four
screws counter-clockwise.
Using screw driver, screw four screws counter-clockwise.
Connect smaller left and right plates with the left and right console legs.
Connect left and right mounting
with left and right tower rails.
4 5 6
Add two screws. Connect towel rails to the
console legs.
Using screw driver tighten the
towel rails.
Using screw driver, screw two
screws counter-clockwise.
7
The height of the console can
be adjusted by turning the
bottom screws either clockwise
or counter-clockwise.
MAL_DuraStyle_DS9891/15.04.1
Page 3
8 9 10
11
Check that four screws, eight
washers and four caps are
included.
Connect the console to the
washbasin using screws and
washers.
Attach four caps to the
console.
Installation is complete.
MAL_DuraStyle_DS9891/15.04.1
Page 4
Furniture complies with applicable requirements of the referenced standard(s):
Safety Household and Commercial Furnishings (UL 962, 3rd ed. Issued: 07/07/08, Revised: 08/05/13)
Portable Luminaires CSA C22.2 No. 12 - 1982 (R2004)
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical furnishing, basic precautions should always be followed, including the following:
Read all instructions before using this furnishing.
DANGER To reduce the risk of electric shock:
1. Always power down all circuits before cleaning.
WARNING To reduce the risk of burns, fire, electric shock, or injury to persons:
1.Disconnect from power before putting on or taking off parts. A minimum of two people is required to remove and
replace cabinet doors.
2. Close supervision is necessary when this furnishing is used by, or near children, invalids, or disabled persons.
3. Use this furnishing only for its intended use as described in these instructions. Do not use attachments not
recommended by the manufacture.
4. Never operate this furnishing if it has a damaged cord or plug, if it is not working properly, if it has been dropped
or damaged, or dropped into water. Return the furnishing to a service center for examination and repair.
5. Never drop or insert any object into any opening.
6. Do not use outdoors.
7. Do not operate where aerosol (spray) products are being used or where oxygen is being administered.
8. For loading always put heavier items at the bottom and not near the top in order to help prevent the
possibility of the furnishing tipping over.
MAXIMUM SHELF LOAD IN POUNDS ALLOWED: 6.61 lbs
9. To disconnect, power down all circuits.
10. Risk of Injury to Persons - do not place video equipment such as televisions or computer monitors on
furnishing.
GROUNDING INSTRUCTIONS
This product must be connected to a grounded metal, permanent wiring system, or an equipment - grounding
conductor must be run with the circuit conductors and connected to the equipment grounding terminal or lead
on the product.
ABOUT THE PRODUCT
Products requiring electricity are designed to be switched at the wall and hardwired to a circuit provided by
the customer. Product should be installed according to electrical code by a qualified technician. Read important
safety instructions carefully. Direct wetting should be avoided. This products is intended for household/residential
use only. We reserve the right to make technical improvements and to enhance the appearance of the products
shown.
SAVE THESE INSTRUCTIONS
MAL_DuraStyle_DS9891/15.04.1
