Page 1
Furniture handrinse basinFurniture handrinse basin DimensionDimension WeightWeight Order numberOrder number
without overflow, with faucet deck, ceramic covered slotted
waste included, underside fully glazed, hardware included,
wall-mounted, 17 3/4" Inch
ColorsColors
00 White
VariantVariant
p 17 3/4" x 13 3/4" Inch 21.8 lb 0732450041
• 17 3/4" x 13 3/4" Inch 21.8 lb 0732450070
InfoboxInfobox
Metal console: Towel rail can be mounted right or left , Made of DuraCeram, For glass inserts matching to furniture
lacquer finishes, please see page XXX
Sanitary ceramics with the special WonderGliss surface finish will remain clean and attractive-looking for a long
time to come.
When ordering WonderGliss please add a "1" as eleventh digit to the model number.
Towel rail square tube 1/2", Chrome, for washbasin # 073245 15 3/4" Inch 0.9 lb 003122
Suitable productsSuitable products
Metal console floorstanding ** height adjustable +2", hardware
included, for handrinse basin # 073245, towel rail right or left,
reversible, 20 1/4" x 13 1/8" Inch
20 1/4" x 13 1/8" Inch 003109

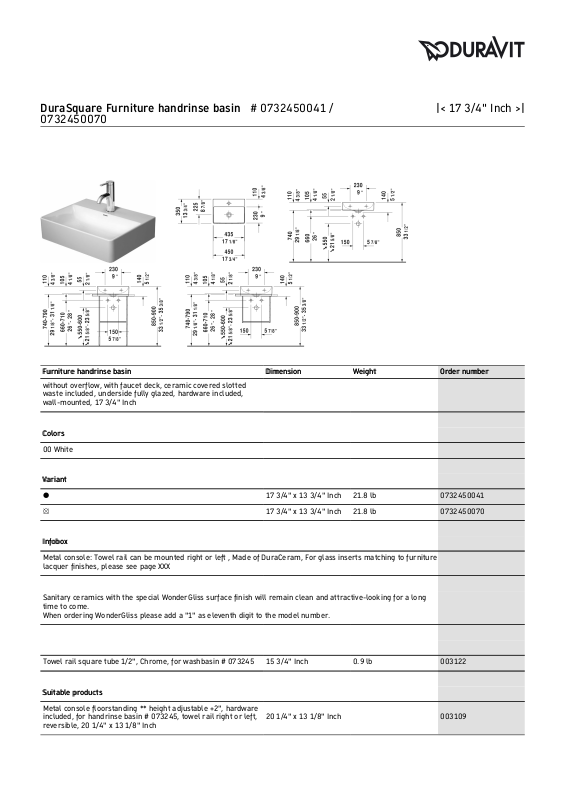

DuraSquare Furniture handrinse basin # 0732450041 /
0732450070
|< 17 3/4" Inch >|
Page 2
Metal console wall-mounted ** hardware included, for
handrinse basin # 073245, towel rail right or left, reversible,
20 1/4" x 13 1/8" Inch
20 1/4" x 13 1/8" Inch 003110
Glass inserts safety glass, for metal console # 003109, 003110,
16 1/2" x 10 3/8" Inch
16 1/2" x 10 3/8" Inch 009966
Vanity unit wall-mounted 1 door, for DuraSquare # 073245, 17
1/8" x 13 3/8" Inch
17 1/8" x 13 3/8" Inch XS4060 L/R
Vanity unit floorstanding 1 door, integrated legs with height
adjustment, for DuraSquare # 073245, 17 1/8" x 13 3/8" Inch
17 1/8" x 13 3/8" Inch XS4441 L/R
All drawings contain the necessary measurements which are subject to standard tolerances. They are stated in inch & mm and are nonbinding. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished ceramic piece.
DuraSquare Furniture handrinse basin # 0732450041 /
0732450070
|< 17 3/4" Inch >|
