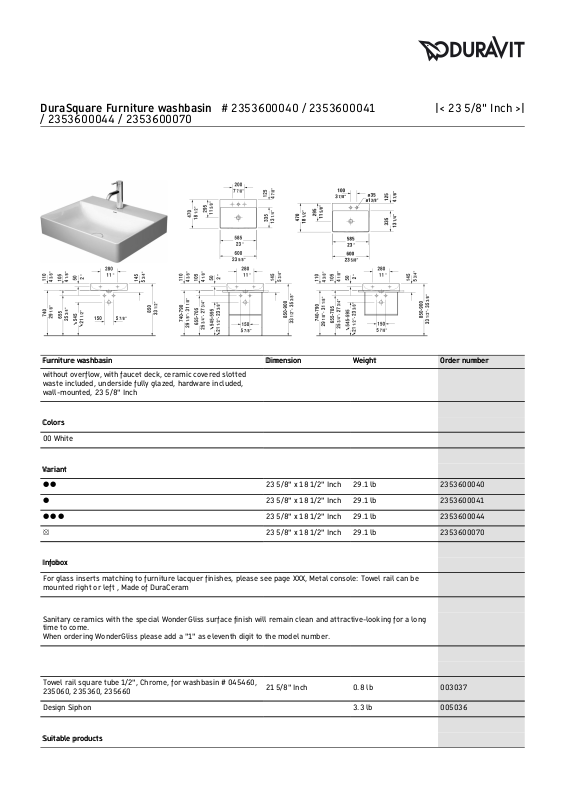

Furniture washbasinFurniture washbasin DimensionDimension WeightWeight Order numberOrder number
without overflow, with faucet deck, ceramic covered slotted
waste included, underside fully glazed, hardware included,
wall-mounted, 23 5/8" Inch
ColorsColors
00 White
VariantVariant
p p 23 5/8" x 18 1/2" Inch 29.1 lb 2353600040
p 23 5/8" x 18 1/2" Inch 29.1 lb 2353600041
p p p 23 5/8" x 18 1/2" Inch 29.1 lb 2353600044
• 23 5/8" x 18 1/2" Inch 29.1 lb 2353600070
InfoboxInfobox
For glass inserts matching to furniture lacquer finishes, please see page XXX, Metal console: Towel rail can be
mounted right or left , Made of DuraCeram
Sanitary ceramics with the special WonderGliss surface finish will remain clean and attractive-looking for a long
time to come.
When ordering WonderGliss please add a "1" as eleventh digit to the model number.
Towel rail square tube 1/2", Chrome, for washbasin # 045460,
235060, 235360, 235660
21 5/8" Inch 0.8 lb 003037
Design Siphon 3.3 lb 005036
Suitable productsSuitable products
DuraSquare Furniture washbasin # 2353600040 / 2353600041
/ 2353600044 / 2353600070
|< 23 5/8" Inch >|
Page 2
Glass inserts safety glass, for metal console # 003101, 003102,
22 1/2" x 15" Inch
22 1/2" x 15" Inch 009964
Metal console wall-mounted ** hardware included, for
washbasin # 235360, towel rail right or left, reversible, 26 1/8"
x 17 3/4" Inch
26 1/8" x 17 3/4" Inch 003102
Metal console floorstanding ** height adjustable +2", hardware
included, for washbasin # 235360, towel rail right or left,
reversible, 26 1/8" x 17 3/4" Inch
26 1/8" x 17 3/4" Inch 003101
Vanity unit wall-mounted 2 drawers, upper drawer including
cut-out for siphon and siphon cover, 23" x 18 1/8" Inch
23" x 18 1/8" Inch XS4161
Vanity unit floorstanding 2 pull-out compartments, integrated
legs with height adjustment, 23" x 18 1/8" Inch
23" x 18 1/8" Inch XS4442
Vanity unit wall-mounted 1 pull-out compartment, 23" x 18 1/8"
Inch
23" x 18 1/8" Inch XS4061
All drawings contain the necessary measurements which are subject to standard tolerances. They are stated in inch & mm and are nonbinding. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished ceramic piece.
DuraSquare Furniture washbasin # 2353600040 / 2353600041
/ 2353600044 / 2353600070
|< 23 5/8" Inch >|
