Glass insertsGlass inserts DimensionDimension WeightWeight Order numberOrder number
safety glass, for metal console # 003101, 003102
ColorsColors
82 Cubic line 83 White 84 Black 85 Jade 86 Apricot pearl 87
Flannel Gray 88 Stone blue
VariantVariant
Cubic line 22 1/2" x 15" Inch 9.9 lb 009964..00
White 22 1/2" x 15" Inch 9.9 lb 009964..00
Black 22 1/2" x 15" Inch 9.9 lb 009964..00
Jade 22 1/2" x 15" Inch 9.9 lb 009964..00
Apricot Pearl 22 1/2" x 15" Inch 9.9 lb 009964..00
Flannel Gray 22 1/2" x 15" Inch 9.9 lb 009964..00
Stone Blue 22 1/2" x 15" Inch 9.9 lb 009964..00
Suitable productsSuitable products
Furniture washbasin without overflow, with faucet deck,
ceramic covered slotted waste included, underside fully glazed,
hardware included, wall-mounted, 23 5/8" x 18 1/2" Inch
23 5/8" x 18 1/2" Inch 235360
Metal console wall-mounted ** hardware included, for
washbasin # 235360, towel rail right or left, reversible, 26 1/8"
x 17 3/4" Inch
26 1/8" x 17 3/4" Inch 003102
Metal console floorstanding ** height adjustable +2", hardware
included, for washbasin # 235360, towel rail right or left,
reversible, 26 1/8" x 17 3/4" Inch
26 1/8" x 17 3/4" Inch 003101
All drawings contain the necessary measurements which are subject to standard tolerances. They are stated in inch & mm and are nonbinding. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished ceramic piece.

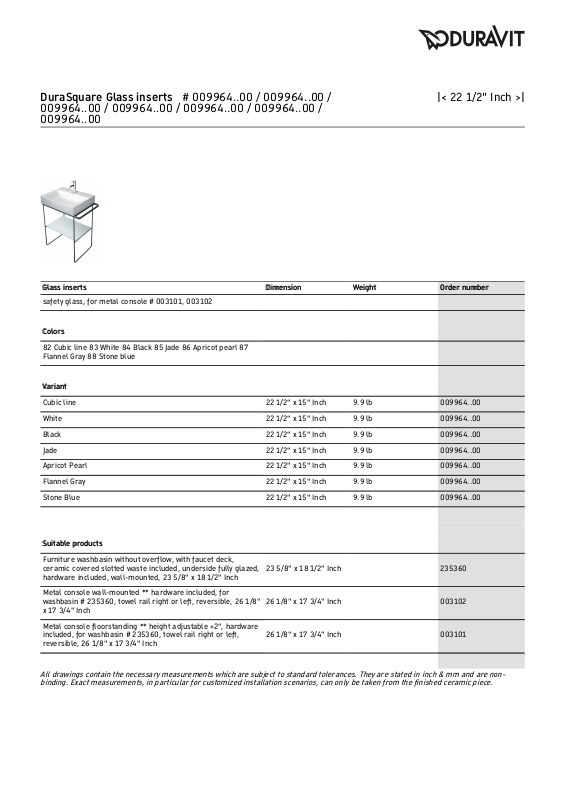

DuraSquare Glass inserts # 009964..00 / 009964..00 /
009964..00 / 009964..00 / 009964..00 / 009964..00 /
009964..00
|< 22 1/2" Inch >|
