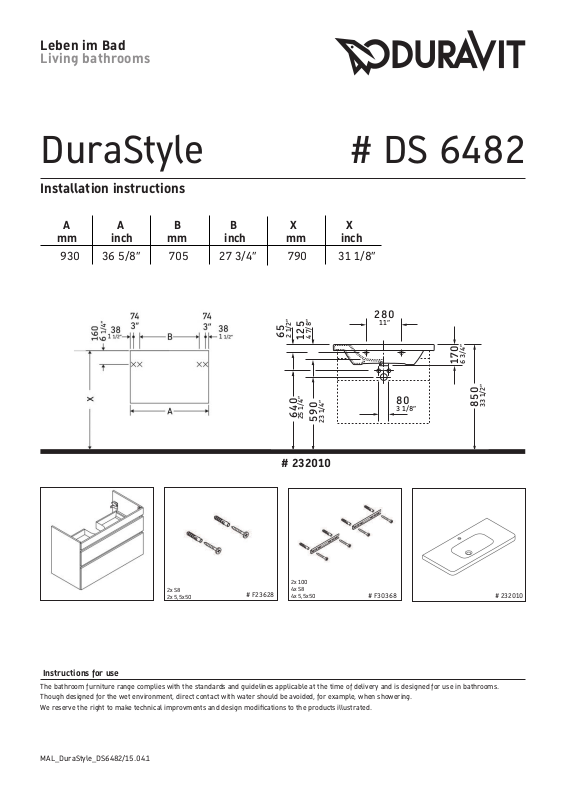

Page 1
Leben im Bad
80
850
170
640
590
65
125
280
25 1/4”
23 1/4”
2 1/2”
4 7/8”
11”
3 1/8”
6 3/4”
33 1/2”
Living bathrooms
DuraStyle

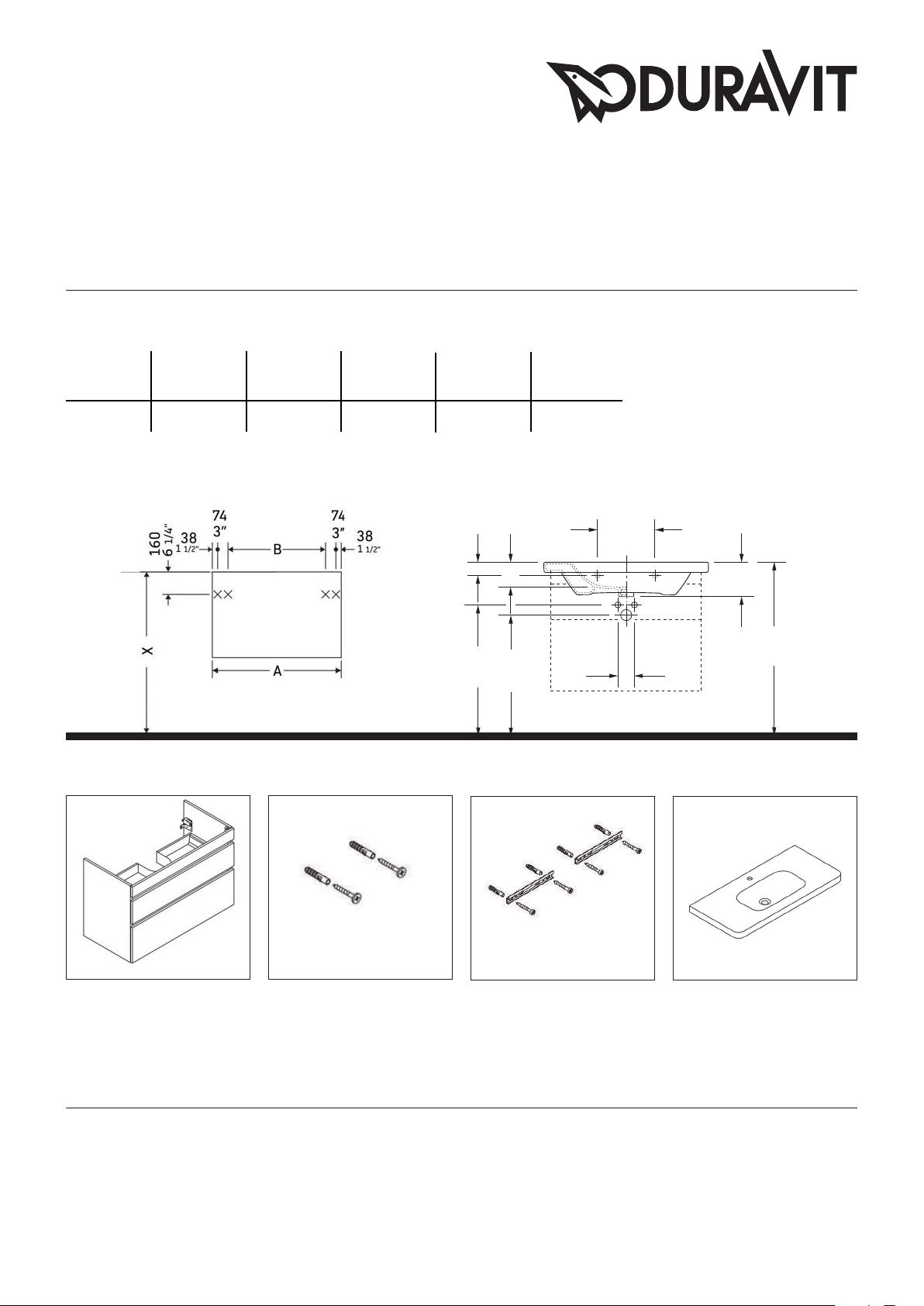

# DS 6482
Installation instructions
A A B B X X
mm inch mm inch mm inch
930 36 5/8” 705 27 3/4” 790 31 1/8”
# 232010
2x 100
2x S8
2x 5,5x50
Instructions for use
The bathroom furniture range complies with the standards and guidelines applicable at the time of delivery and is designed for use in bathrooms.
Though designed for the wet environment, direct contact with water should be avoided, for example, when showering.
We reserve the right to make technical improvments and design modifications to the products illustrated.
# F23628
4x S8
4x 5,5x50
# F30368
# 232010
MAL_DuraStyle_DS6482/15.04.1
Page 2

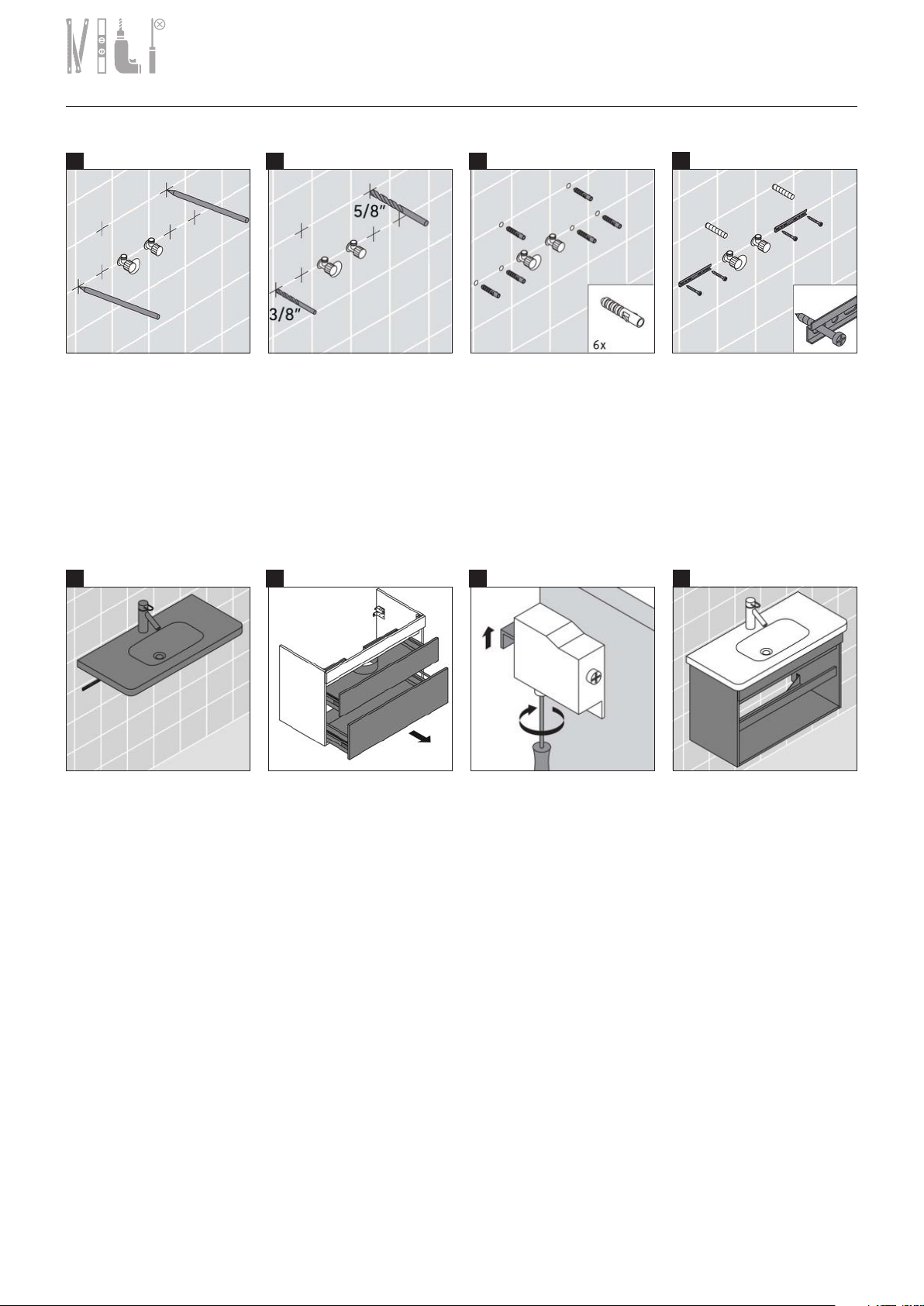

1 2 3
4
Reference the washbasin
specification to establish the
position of mounting bolts,
mark the holes to be drilled for
Using a 3/8“ and 5/8“ drill bit,
drill the anchor holes that
have been marked.
the anchors.
5 6 7
When mounting the washbasin
Remove the vanity drawer. Using the screwdriver adjust
into a wood stud wall, there
must be adequate bracing. We
recommend doubling up 2 x 6‘
or 2 x 8‘s between the studs to
form a solid anchoring point.
Screw mounting bolts into the
pre-drilled holes with an
adjustable wrench. Screw in
the full length of the mounting
bolt, so that the lag thread is no
longer visible. Carefully
slide washbasin onto the
mounting bolts, Insert the
white plastic sleeve over bolt
and into the hole in the
washbasin. Install provided
washer and nut. Hand tighten
the nut, so the washbasin is
secure. Install the siphon.
The plastic anchors provided
are for concrete wall
applications.
the vanity mounting hinge
system clockwise.
For wood stud walls, bolts should
be screwed into wood backing.
8
Slide the vanity under the
washbasin. Tighten mounting
bolts with a wrench until the
washbasin is stable.
MAL_DuraStyle_DS6482/15.04.1
Page 3
9 10 11
12

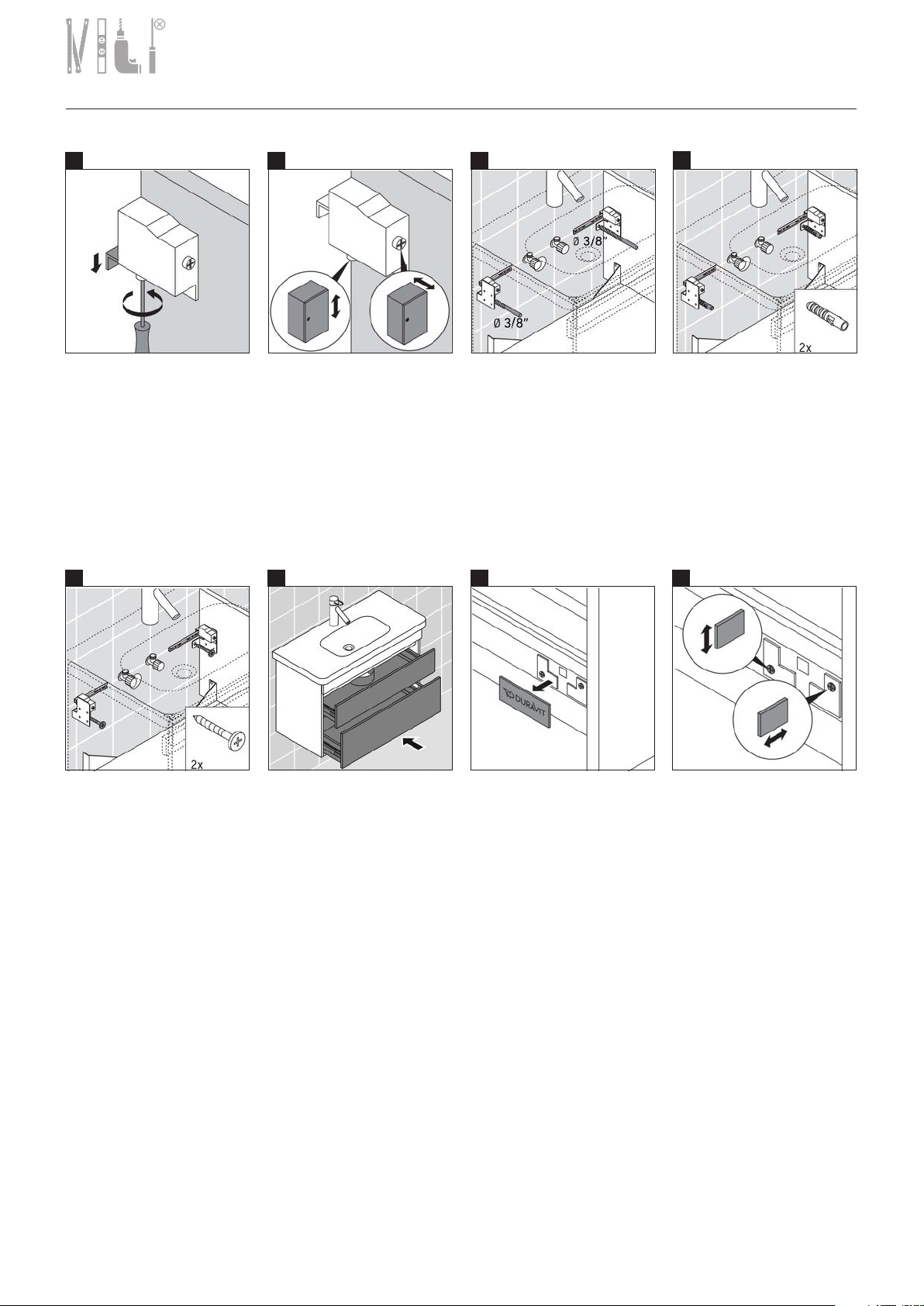

Using the crewdriver adjust
the vanity mounting hinge
system counter-clockwise.
13 14 15
For wood stud walls bolts should
Screw two set screws until
desired leveling of the vanity
has been reached.
Install the vanity drawer. Remove plate with Duravit logo.
be screwed into wood backing.
Using the appropriate bit
for the wall material, drill pilot
holes.
The plastic anchors provided
are for concrete wall
applications.
16
Level the vanity drawer by
adjusting the two screws.
MAL_DuraStyle_DS6482/15.04.1
Page 4
17 18

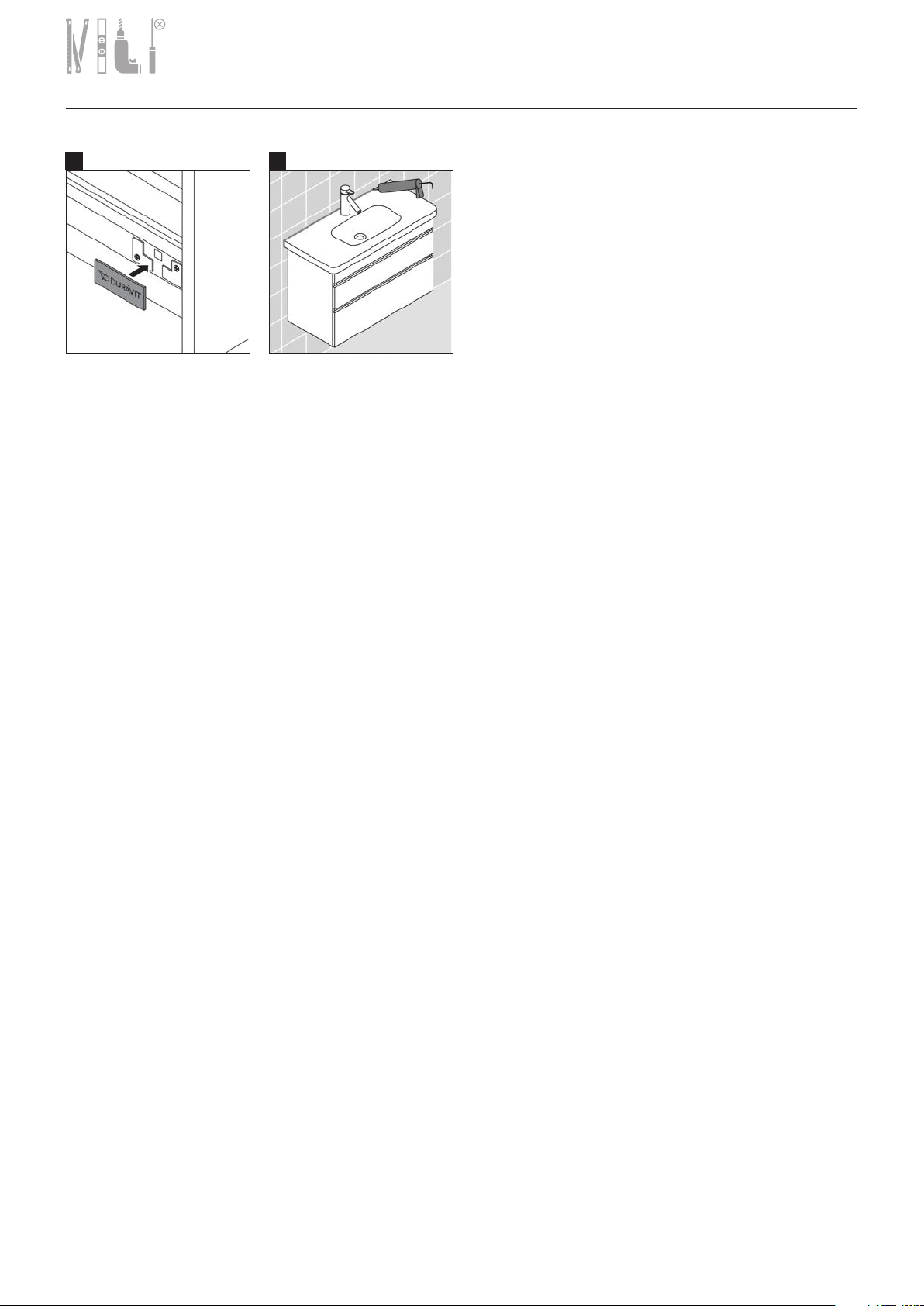

Install plate with Duravit logo. Apply silicon bead between
washbasin and the wall.
MAL_DuraStyle_DS6482/15.04.1
Page 5
Furniture complies with applicable requirements of the referenced standard(s):
Safety Household and Commercial Furnishings (UL 962, 3rd ed. Issued: 07/07/08, Revised: 08/05/13)
Portable Luminaires CSA C22.2 No. 12 - 1982 (R2004)
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical furnishing, basic precautions should always be followed, including the following:
Read all instructions before using this furnishing.
DANGER To reduce the risk of electric shock:
1. Always power down all circuits before cleaning.
WARNING To reduce the risk of burns, fire, electric shock, or injury to persons:
1.Disconnect from power before putting on or taking off parts. A minimum of two people is required to remove and
replace cabinet doors.
2. Close supervision is necessary when this furnishing is used by, or near children, invalids, or disabled persons.
3. Use this furnishing only for its intended use as described in these instructions. Do not use attachments not
recommended by the manufacture.
4. Never operate this furnishing if it has a damaged cord or plug, if it is not working properly, if it has been dropped
or damaged, or dropped into water. Return the furnishing to a service center for examination and repair.
5. Never drop or insert any object into any opening.
6. Do not use outdoors.
7. Do not operate where aerosol (spray) products are being used or where oxygen is being administered.
8. For loading always put heavier items at the bottom and not near the top in order to help prevent the
possibility of the furnishing tipping over.
MAXIMUM SHELF LOAD IN POUNDS ALLOWED: 6.61 lbs
9. To disconnect, power down all circuits.
10. Risk of Injury to Persons - do not place video equipment such as televisions or computer monitors on
furnishing.
GROUNDING INSTRUCTIONS
This product must be connected to a grounded metal, permanent wiring system, or an equipment - grounding
conductor must be run with the circuit conductors and connected to the equipment grounding terminal or lead
on the product.
ABOUT THE PRODUCT
Products requiring electricity are designed to be switched at the wall and hardwired to a circuit provided by
the customer. Product should be installed according to electrical code by a qualified technician. Read important
safety instructions carefully. Direct wetting should be avoided. This products is intended for household/residential
use only. We reserve the right to make technical improvements and to enhance the appearance of the products
shown.
SAVE THESE INSTRUCTIONS
MAL_DuraStyle_DS6482/15.04.1
