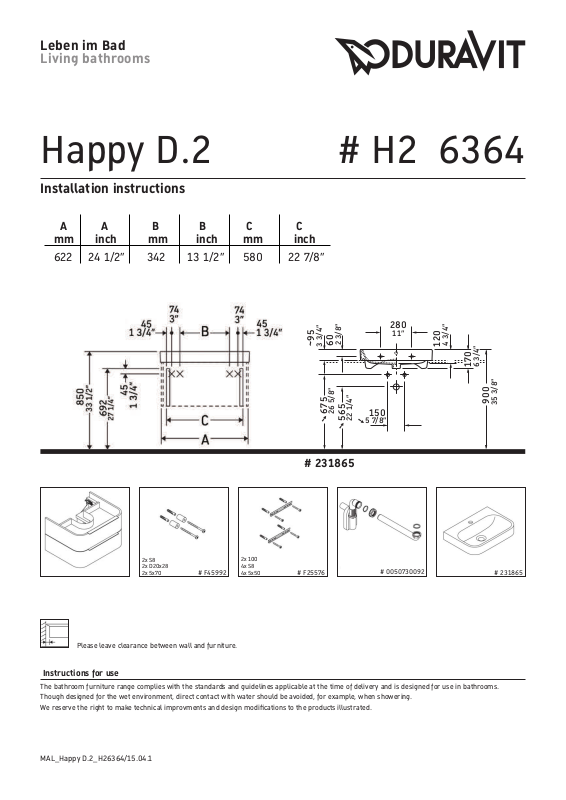

Page 1
Leben im Bad
280
900
170
120
150
95
60
675
565
~
35 3/8”
26 5/8”
22 1/4”
5 7/8”
3 3/4”
2 3/8”
11”
4 3/4”
6 3/4”
Living bathrooms
Happy D.2

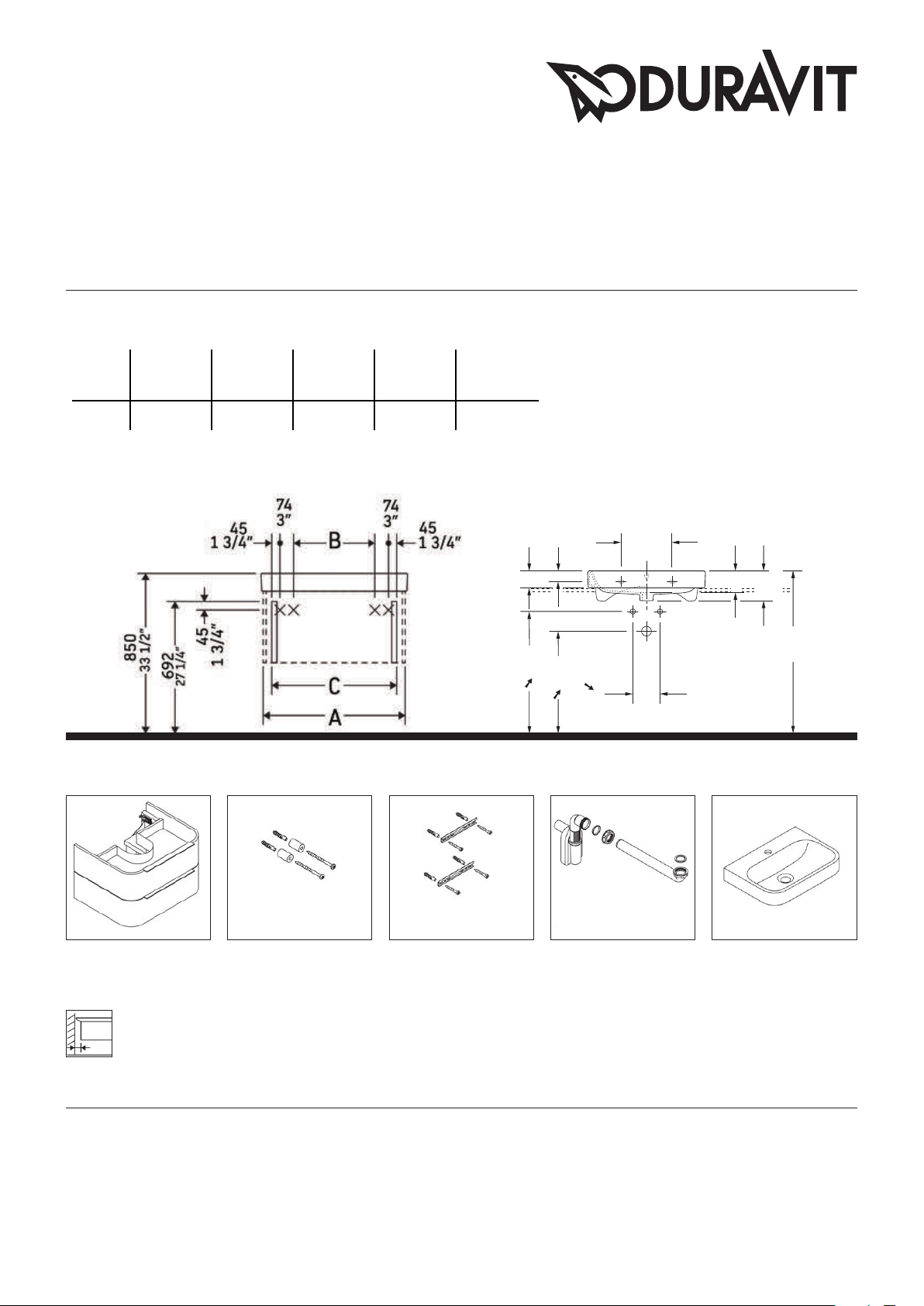

Installation instructions
A A B B C C
mm inch mm inch mm inch
622 24 1/2” 342 13 1/2” 580 22 7/8”
# H2 6364
# 231865
2x S8
2x D20x28
2x 5x70
Please leave clearance between wall and furniture.
Instructions for use
The bathroom furniture range complies with the standards and guidelines applicable at the time of delivery and is designed for use in bathrooms.
Though designed for the wet environment, direct contact with water should be avoided, for example, when showering.
We reserve the right to make technical improvments and design modifications to the products illustrated.
# F45992
2x 100
4x S8
4x 5x50
# F25576
# 0050730092
# 231865
MAL_Happy D.2_H26364/15.04.1
Page 2

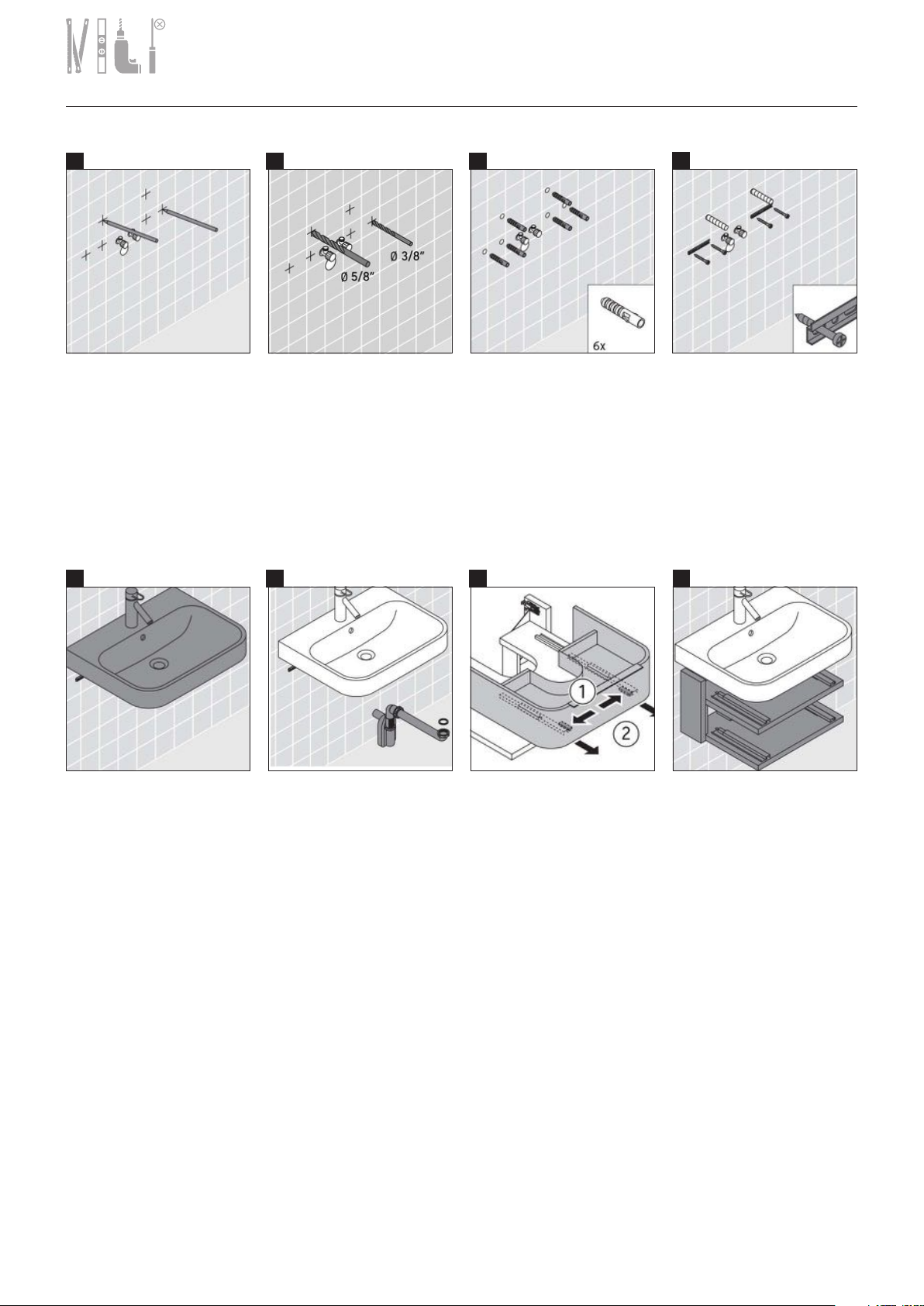

1 2 3
4
Reference the washbasin
specification to establish the
position of mounting bolts,
mark the holes to be drilled for
Using a 3/8“ and 5/8“
drill bit, drill the anchor
holes that have been marked.
the anchors.
5 6 7
When mounting the washbasin
Install the faucet and siphon. Push and lock in pins, (1)
into a wood stud wall, there
must be adequate bracing. We
recommend doubling up 2 x 6‘
or 2 x 8‘s between the studs to
form a solid anchoring point.
Screw mounting bolts into the
predrilled holes with an
adjustable wrench. Screw in
the full length of the mounting
bolt, so that the lag thread is
no longer visible. Carefully
slide washbasin onto the
mounting bolts. Insert the
white plastic sleeve over bolt
and into the hole in the
washbasin. Install provided
washer and nut. Hand tighten
the nut, so the washbasin is
secure.
The plastic anchors provided
are for concrete wall
applications.
and remove the drawer. (2)
For wood stud walls, bolts
should be screwed into wood
backing.
8
Slide the vanity under the
washbasin. Tighten mounting
nuts with a wrench until the
washbasin is stable.
MAL_Happy D.2_H26364/15.04.1
Page 3

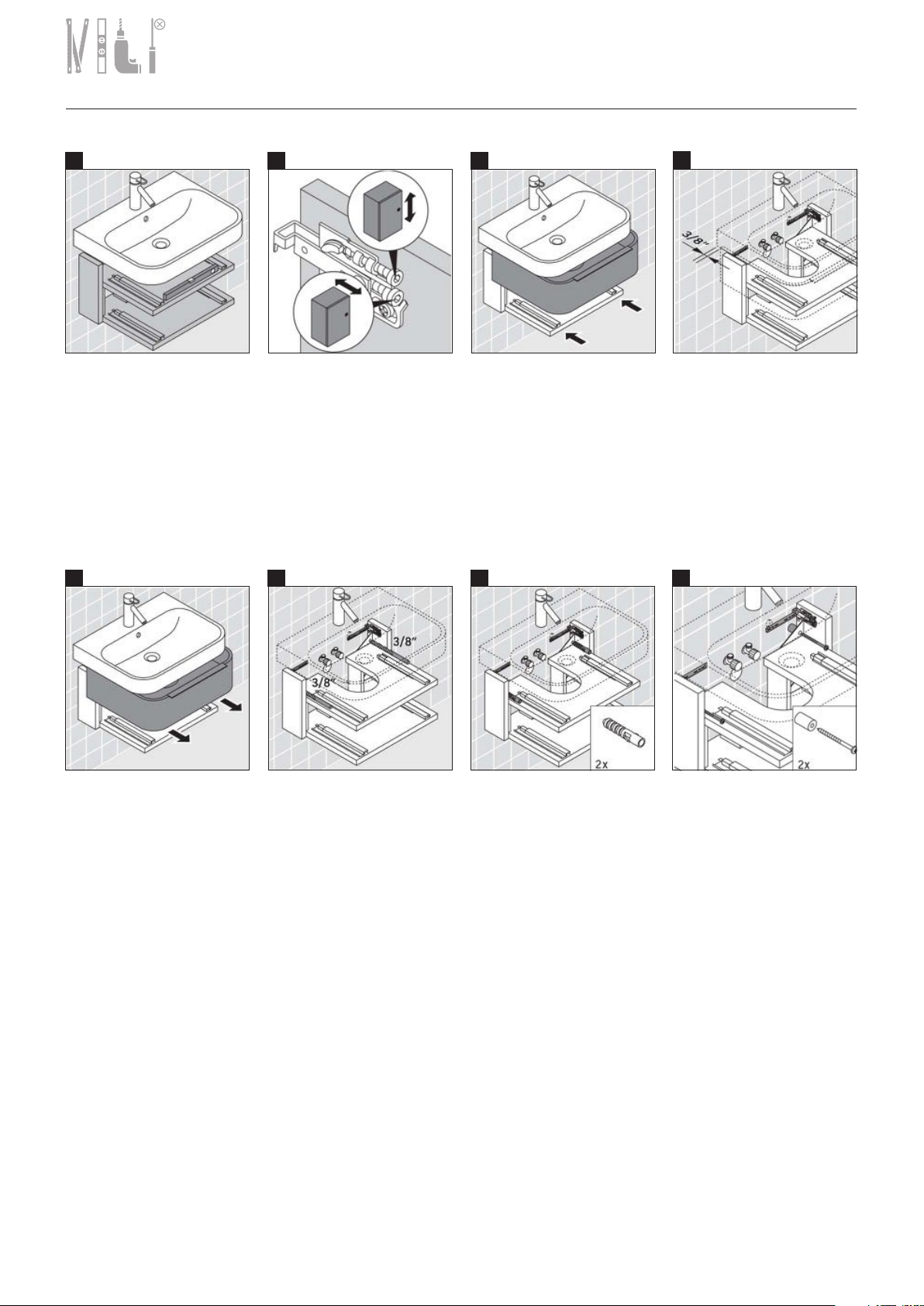

9 10 11
12
Check the vanity is leveled, and
securely attached to the wall.
Check the screws which allow
adjustment of the unit. the top
screw will adjust up and down
and the bottom screw will
adjust front to back.
13 14 15
Remove the vanity drawer. Using a 3/8“ drill bit, drill the
anchor holes that have been
marked.
Install the vanity drawer. Check the vanity drawer distance
from the wall. (3/8“)
16
The plastic anchors provided
Install spacer and a screw.
are for concrete wall
applications.
MAL_Happy D.2_H26364/15.04.1
Page 4

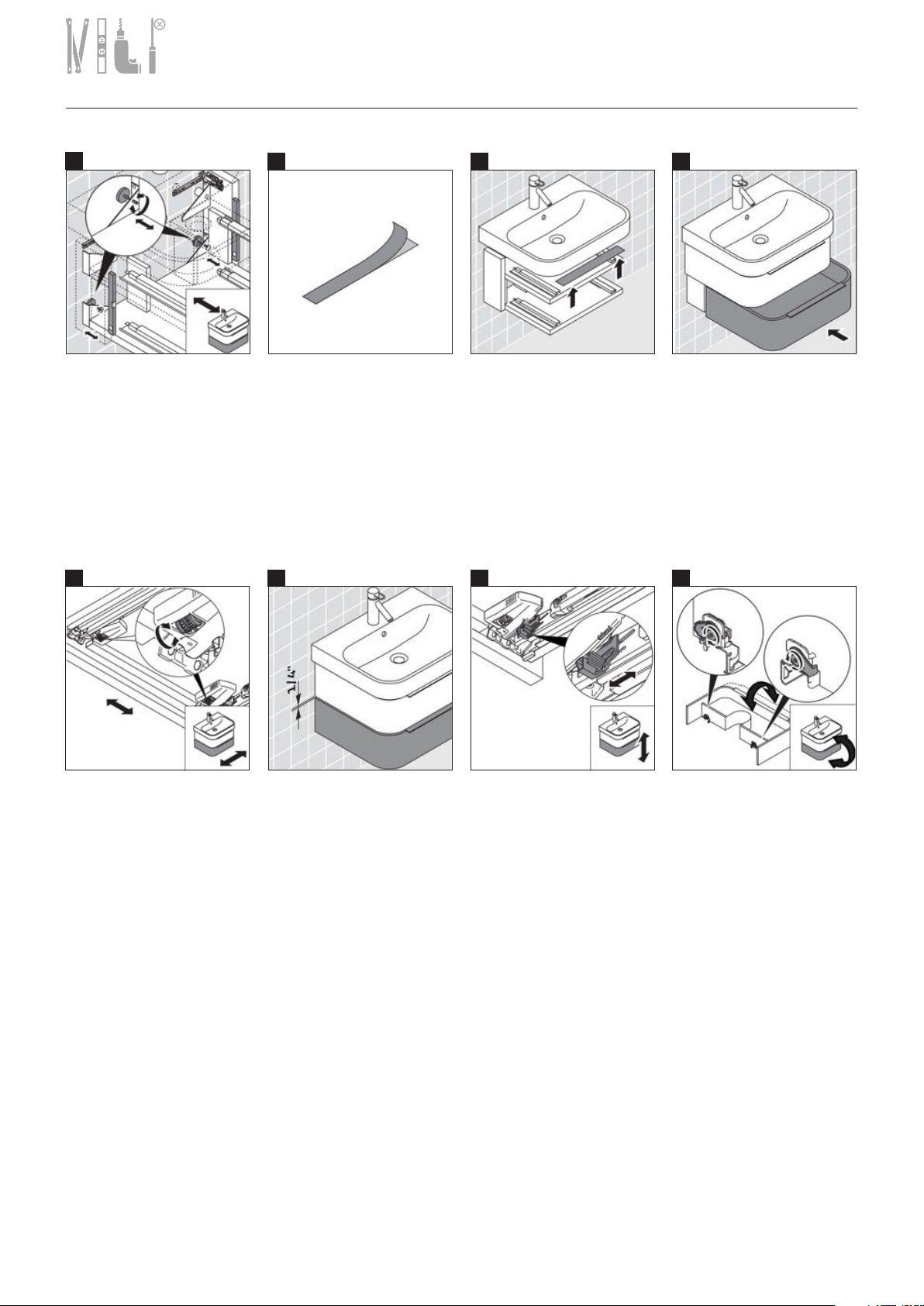

17
18 19
20
Check the vaniry is leveled and
Peal off the strip liner. Now press the strip directly
make adjustments using
screws.
21 22 23
Make drawer adjustment.
(left and right)
Check the gap between the
vanity drawers. (1/4“)
onto the vanity.
Make drawer adjustment.
(up and down)
Install the vanity draws.
24
Make additional adjustment,
if necessary.
MAL_Happy D.2_H26364/15.04.1
Page 5

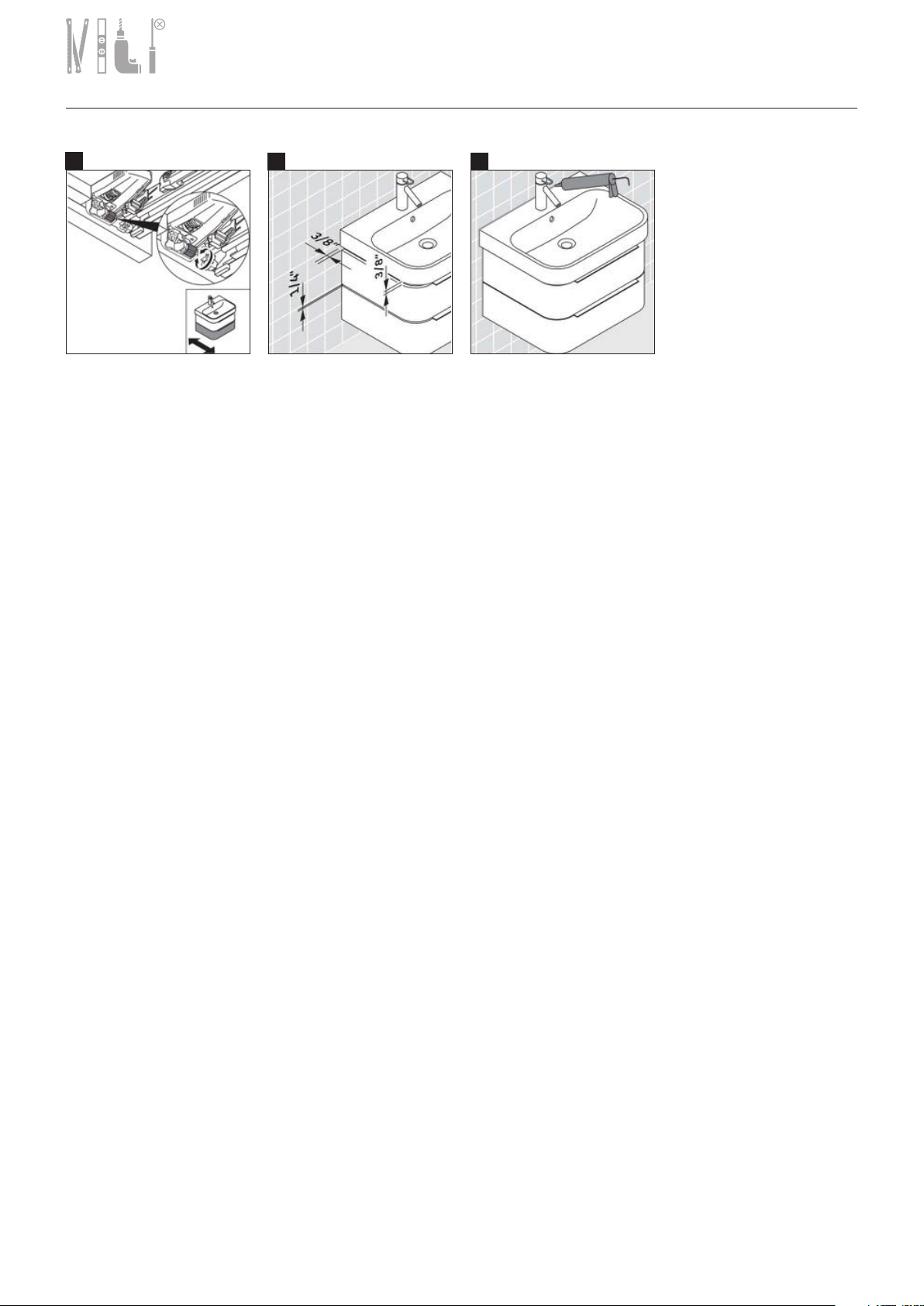

25
26 27
Make drawer adjustment.
(front and back)
Check the all gaps. Apply silicon bead between
washbasin and the wall.
MAL_Happy D.2_H26364/15.04.1
Page 6
Furniture complies with applicable requirements of the referenced standard(s):
Safety Household and Commercial Furnishings (UL 962, 3rd ed. Issued: 07/07/08, Revised: 08/05/13)
Portable Luminaires CSA C22.2 No. 12 - 1982 (R2004)
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical furnishing, basic precautions should always be followed, including the following:
Read all instructions before using this furnishing.
DANGER To reduce the risk of electric shock:
1. Always power down all circuits before cleaning.
WARNING To reduce the risk of burns, fire, electric shock, or injury to persons:
1.Disconnect from power before putting on or taking off parts. A minimum of two people is required to remove and
replace cabinet doors.
2. Close supervision is necessary when this furnishing is used by, or near children, invalids, or disabled persons.
3. Use this furnishing only for its intended use as described in these instructions. Do not use attachments not
recommended by the manufacture.
4. Never operate this furnishing if it has a damaged cord or plug, if it is not working properly, if it has been dropped
or damaged, or dropped into water. Return the furnishing to a service center for examination and repair.
5. Never drop or insert any object into any opening.
6. Do not use outdoors.
7. Do not operate where aerosol (spray) products are being used or where oxygen is being administered.
8. For loading always put heavier items at the bottom and not near the top in order to help prevent the
possibility of the furnishing tipping over.
MAXIMUM SHELF LOAD IN POUNDS ALLOWED: 6.61 lbs
9. To disconnect, power down all circuits.
10. Risk of Injury to Persons - do not place video equipment such as televisions or computer monitors on
furnishing.
GROUNDING INSTRUCTIONS
This product must be connected to a grounded metal, permanent wiring system, or an equipment - grounding
conductor must be run with the circuit conductors and connected to the equipment grounding terminal or lead
on the product.
ABOUT THE PRODUCT
Products requiring electricity are designed to be switched at the wall and hardwired to a circuit provided by
the customer. Product should be installed according to electrical code by a qualified technician. Read important
safety instructions carefully. Direct wetting should be avoided. This products is intended for household/residential
use only. We reserve the right to make technical improvements and to enhance the appearance of the products
shown.
SAVE THESE INSTRUCTIONS
MAL_Happy D.2_H26364/15.04.1
Page 7
Duravit NYC
105 Madison Avenue
New York, NY 10016
Toll Free 888-DURAVIT
Phone 212-686-0033
Fax 212-686-8033
[email protected]
www.duravit.nyc
Duravit USA, Inc.
2205 Northmont Pkwy., Ste. 200
Duluth, GA 30096
Toll Free 888-DURAVIT
Phone 770-931-3575
Fax 770-931-8454
[email protected]
www.duravit.us
Best. -Nr. H26364/15.04.1
