Mirror cabinetMirror cabinet DimensionDimension WeightWeight Order numberOrder number
built-in version, Standard-Version, cEGS/IAPMO®*, 1 mirror
door, 2 glass shelves, external switch, built-in only in
combination with built-in set, LED (life span > 30,000 hours),
LED module permanently enclosed, Mirrors cabinets require a
GFCI 110 V 60 Hz power source and are hardwired to a circuit
provided by the customer. , LED module 4000 kelvin light color,
8 Watt
ColorsColors
M00
VariantVariant
24" x 5 7/8" Inch LM7820L0000
InfoboxInfobox
# LM 7820 L/R is available from stock, On/off function only possible with external wall switch, Built-in set please
see page XXX, * Complies with following standards: UL 962 and CSA C22.2 No. 12-1982, Required specification for
ordering:, - Hinges left (L) or right (R), - built-in yes / no
Suitable productsSuitable products
Magnetic strip in stainless steel , 3 1/2" Inch 3 1/2" Inch UV9709
Recess frame for LM mirror cabinet Built-in frame: recess
mounting frame in MDF White, width = X, height = 31"; recess
mounting frame in White Aluminum, width = X, height = 32";
frame strength = 1", 26" x 5 1/2" Inch
26" x 5 1/2" Inch LM9875
All drawings contain the necessary measurements which are subject to standard tolerances. They are stated in inch & mm and are nonbinding. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished ceramic piece.

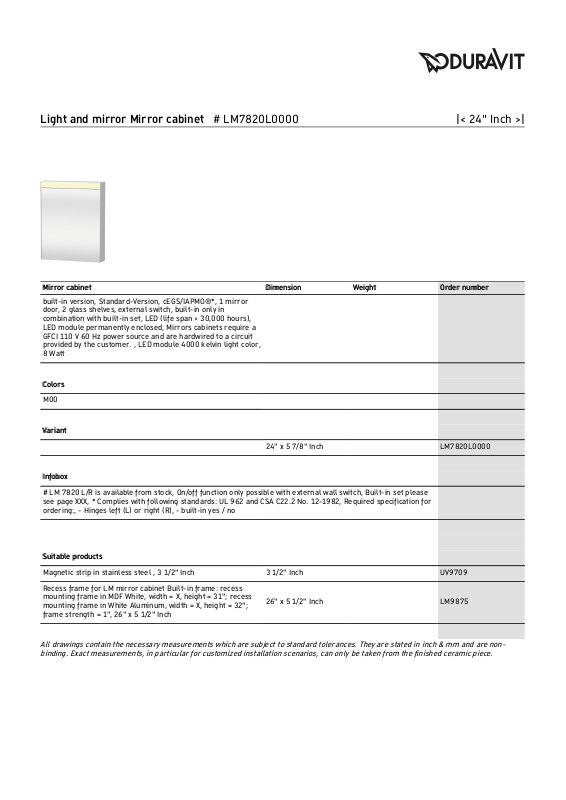

Light and mirror Mirror cabinet # LM7820L0000 |< 24" Inch >|
