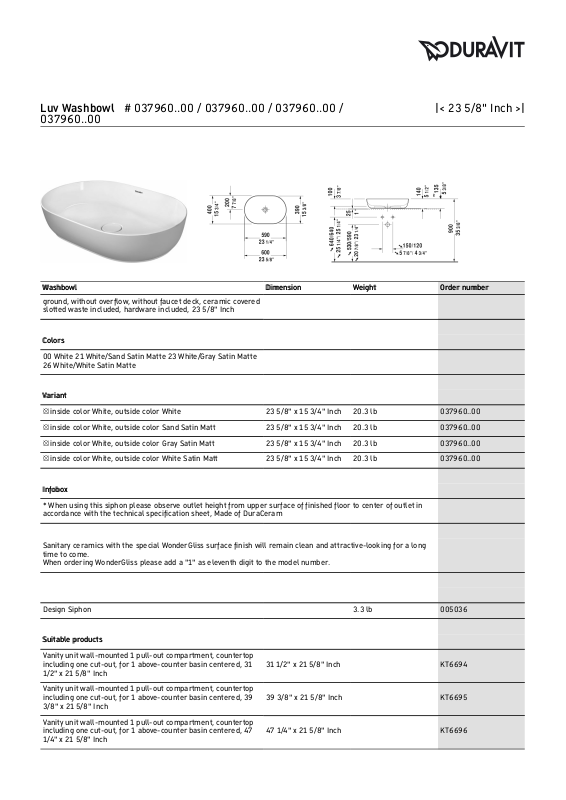

WashbowlWashbowl DimensionDimension WeightWeight Order numberOrder number
ground, without overflow, without faucet deck, ceramic covered
slotted waste included, hardware included, 23 5/8" Inch
ColorsColors
00 White 21 White/Sand Satin Matte 23 White/Gray Satin Matte
26 White/White Satin Matte
VariantVariant
• inside color White, outside color White 23 5/8" x 15 3/4" Inch 20.3 lb 037960..00
• inside color White, outside color Sand Satin Matt 23 5/8" x 15 3/4" Inch 20.3 lb 037960..00
• inside color White, outside color Gray Satin Matt 23 5/8" x 15 3/4" Inch 20.3 lb 037960..00
• inside color White, outside color White Satin Matt 23 5/8" x 15 3/4" Inch 20.3 lb 037960..00
InfoboxInfobox
* When using this siphon please observe outlet height from upper surface of finished floor to center of outlet in
accordance with the technical specification sheet, Made of DuraCeram
Sanitary ceramics with the special WonderGliss surface finish will remain clean and attractive-looking for a long
time to come.
When ordering WonderGliss please add a "1" as eleventh digit to the model number.
Design Siphon 3.3 lb 005036
Suitable productsSuitable products
Vanity unit wall-mounted 1 pull-out compartment, countertop
including one cut-out, for 1 above-counter basin centered, 31
1/2" x 21 5/8" Inch
31 1/2" x 21 5/8" Inch KT6694
Vanity unit wall-mounted 1 pull-out compartment, countertop
including one cut-out, for 1 above-counter basin centered, 39
3/8" x 21 5/8" Inch
39 3/8" x 21 5/8" Inch KT6695
Vanity unit wall-mounted 1 pull-out compartment, countertop
including one cut-out, for 1 above-counter basin centered, 47
1/4" x 21 5/8" Inch
47 1/4" x 21 5/8" Inch KT6696
Luv Washbowl # 037960..00 / 037960..00 / 037960..00 /
037960..00
|< 23 5/8" Inch >|
Page 2
Vanity unit wall-mounted 2 drawers, upper drawer including
cut-out for siphon and siphon cover, countertop including one
cut-out, for 1 above-counter basin centered, 31 1/2" x 21 5/8"
Inch
31 1/2" x 21 5/8" Inch KT6654
Vanity unit wall-mounted 2 drawers, upper drawer including
cut-out for siphon and siphon cover, countertop including one
cut-out, for 1 above-counter basin centered, 39 3/8" x 21 5/8"
Inch
39 3/8" x 21 5/8" Inch KT6655
Vanity unit wall-mounted 4 drawers, drawer beneath basin
including cut-out for siphon and siphon cover, 1 countertop with
one cut-out or two cut-outs, for 1 or 2 above-counter basin(s),
55 1/8" x 21 5/8" Inch
55 1/8" x 21 5/8" Inch KT6657 B/L/R
Happy D.2 vanity unit for console Compact 2 drawers, upper
drawer including cut-out for siphon and siphon cover, 23 5/8" x
18 7/8" Inch
23 5/8" x 18 7/8" Inch H25505
Happy D.2 vanity unit for console Compact 2 drawers, upper
drawer including cut-out for siphon and siphon cover, 27 1/2" x
18 7/8" Inch
27 1/2" x 18 7/8" Inch H25506
Happy D.2 vanity unit for console Compact 2 drawers, upper
drawer including cut-out for siphon and siphon cover, 31 1/2" x
18 7/8" Inch
31 1/2" x 18 7/8" Inch H25507
Happy D.2 vanity unit for console Compact 2 drawers, upper
drawer including cut-out for siphon and siphon cover, 35 3/8" x
18 7/8" Inch
35 3/8" x 18 7/8" Inch H25508
Happy D.2 vanity unit for console Compact 2 drawers, upper
drawer including cut-out for siphon and siphon cover, 39 3/8" x
18 7/8" Inch
39 3/8" x 18 7/8" Inch H25509
Happy D.2 vanity unit for console 2 drawers, upper drawer
including cut-out for siphon and siphon cover, 23 5/8" x 21 5/8"
Inch
23 5/8" x 21 5/8" Inch H25515
Happy D.2 vanity unit for console 2 drawers, upper drawer
including cut-out for siphon and siphon cover, 27 1/2" x 21 5/8"
Inch
27 1/2" x 21 5/8" Inch H25516
Happy D.2 vanity unit for console 2 drawers, upper drawer
including cut-out for siphon and siphon cover, 31 1/2" x 21 5/8"
Inch
31 1/2" x 21 5/8" Inch H25517
Happy D.2 vanity unit for console 2 drawers, upper drawer
including cut-out for siphon and siphon cover, 35 3/8" x 21 5/8"
Inch
35 3/8" x 21 5/8" Inch H25518
Happy D.2 vanity unit for console 2 drawers, upper drawer
including cut-out for siphon and siphon cover, 39 3/8" x 21 5/8"
Inch
39 3/8" x 21 5/8" Inch H25519
X-Large vanity unit for console Compact 2 drawers, upper
drawer including cut-out for siphon and siphon cover, 23 5/8" x
18 7/8" Inch
23 5/8" x 18 7/8" Inch XL5405
X-Large vanity unit for console Compact 2 drawers, upper
drawer including cut-out for siphon and siphon cover, 27 1/2" x
18 7/8" Inch
27 1/2" x 18 7/8" Inch XL5406
X-Large vanity unit for console Compact 2 drawers, upper
drawer including cut-out for siphon and siphon cover, 31 1/2" x
18 7/8" Inch
31 1/2" x 18 7/8" Inch XL5407
Luv Washbowl # 037960..00 / 037960..00 / 037960..00 /
037960..00
|< 23 5/8" Inch >|
Page 3
X-Large vanity unit for console Compact 2 drawers, upper
drawer including cut-out for siphon and siphon cover, 35 3/8" x
18 7/8" Inch
35 3/8" x 18 7/8" Inch XL5408
X-Large vanity unit for console Compact 2 drawers, upper
drawer including cut-out for siphon and siphon cover, 39 3/8" x
18 7/8" Inch
39 3/8" x 18 7/8" Inch XL5409
X-Large vanity unit for console 2 drawers, upper drawer
including cut-out for siphon and siphon cover, 23 5/8" x 21 5/8"
Inch
23 5/8" x 21 5/8" Inch XL5415
X-Large vanity unit for console 2 drawers, upper drawer
including cut-out for siphon and siphon cover, 27 1/2" x 21 5/8"
Inch
27 1/2" x 21 5/8" Inch XL5416
X-Large vanity unit for console 2 drawers, upper drawer
including cut-out for siphon and siphon cover, 31 1/2" x 21 5/8"
Inch
31 1/2" x 21 5/8" Inch XL5417
X-Large vanity unit for console 2 drawers, upper drawer
including cut-out for siphon and siphon cover, 35 3/8" x 21 5/8"
Inch
35 3/8" x 21 5/8" Inch XL5418
X-Large vanity unit for console 2 drawers, upper drawer
including cut-out for siphon and siphon cover, 39 3/8" x 21 5/8"
Inch
39 3/8" x 21 5/8" Inch XL5419
DuraStyle vanity unit for console Compact 2 drawers, upper
drawer including cut-out for siphon and siphon cover, 23 5/8" x
18 7/8" Inch
23 5/8" x 18 7/8" Inch DS5305
DuraStyle vanity unit for console Compact 2 drawers, upper
drawer including cut-out for siphon and siphon cover, 27 1/2" x
18 7/8" Inch
27 1/2" x 18 7/8" Inch DS5306
DuraStyle vanity unit for console Compact 2 drawers, upper
drawer including cut-out for siphon and siphon cover, 31 1/2" x
18 7/8" Inch
31 1/2" x 18 7/8" Inch DS5307
DuraStyle vanity unit for console Compact 2 drawers, upper
drawer including cut-out for siphon and siphon cover, 35 3/8" x
18 7/8" Inch
35 3/8" x 18 7/8" Inch DS5308
DuraStyle vanity unit for console Compact 2 drawers, upper
drawer including cut-out for siphon and siphon cover, 39 3/8" x
18 7/8" Inch
39 3/8" x 18 7/8" Inch DS5309
DuraStyle vanity unit for console 2 drawers, upper drawer
including cut-out for siphon and siphon cover, 23 5/8" x 21 5/8"
Inch
23 5/8" x 21 5/8" Inch DS5315
DuraStyle vanity unit for console 2 drawers, upper drawer
including cut-out for siphon and siphon cover, 27 1/2" x 21 5/8"
Inch
27 1/2" x 21 5/8" Inch DS5316
DuraStyle vanity unit for console 2 drawers, upper drawer
including cut-out for siphon and siphon cover, 31 1/2" x 21 5/8"
Inch
31 1/2" x 21 5/8" Inch DS5317
DuraStyle vanity unit for console 2 drawers, upper drawer
including cut-out for siphon and siphon cover, 35 3/8" x 21 5/8"
Inch
35 3/8" x 21 5/8" Inch DS5318
DuraStyle vanity unit for console 2 drawers, upper drawer
including cut-out for siphon and siphon cover, 39 3/8" x 21 5/8"
Inch
39 3/8" x 21 5/8" Inch DS5319
Luv Washbowl # 037960..00 / 037960..00 / 037960..00 /
037960..00
|< 23 5/8" Inch >|
Page 4
L-Cube vanity unit for console Compact 2 drawers, upper
drawer including cut-out for siphon and siphon cover, 24 3/8" x
18 7/8" Inch
24 3/8" x 18 7/8" Inch LC5805
L-Cube vanity unit for console Compact 2 drawers, upper
drawer including cut-out for siphon and siphon cover, 28 3/8" x
18 7/8" Inch
28 3/8" x 18 7/8" Inch LC5806
L-Cube vanity unit for console Compact 2 drawers, upper
drawer including cut-out for siphon and siphon cover, 32 1/4" x
18 7/8" Inch
32 1/4" x 18 7/8" Inch LC5807
L-Cube vanity unit for console Compact 2 drawers, upper
drawer including cut-out for siphon and siphon cover, 36 1/4" x
18 7/8" Inch
36 1/4" x 18 7/8" Inch LC5808
L-Cube vanity unit for console Compact 2 drawers, upper
drawer including cut-out for siphon and siphon cover, 40 1/8" x
18 7/8" Inch
40 1/8" x 18 7/8" Inch LC5809
L-Cube vanity unit for console 2 drawers, upper drawer
including cut-out for siphon and siphon cover, 24 3/8" x 21 5/8"
Inch
24 3/8" x 21 5/8" Inch LC5815
L-Cube vanity unit for console 2 drawers, upper drawer
including cut-out for siphon and siphon cover, 28 3/8" x 21 5/8"
Inch
28 3/8" x 21 5/8" Inch LC5816
L-Cube vanity unit for console 2 drawers, upper drawer
including cut-out for siphon and siphon cover, 32 1/4" x 21 5/8"
Inch
32 1/4" x 21 5/8" Inch LC5817
L-Cube vanity unit for console 2 drawers, upper drawer
including cut-out for siphon and siphon cover, 36 1/4" x 21 5/8"
Inch
36 1/4" x 21 5/8" Inch LC5818
L-Cube vanity unit for console 2 drawers, upper drawer
including cut-out for siphon and siphon cover, 40 1/8" x 21 5/8"
Inch
40 1/8" x 21 5/8" Inch LC5819
Ketho vanity unit for console Compact 2 drawers, upper drawer
including cut-out for siphon and siphon cover, 23 5/8" x 18 7/8"
Inch
23 5/8" x 18 7/8" Inch KT5205
Ketho vanity unit for console Compact 2 drawers, upper drawer
including cut-out for siphon and siphon cover, 27 1/2" x 18 7/8"
Inch
27 1/2" x 18 7/8" Inch KT5206
Ketho vanity unit for console Compact 2 drawers, upper drawer
including cut-out for siphon and siphon cover, 31 1/2" x 18 7/8"
Inch
31 1/2" x 18 7/8" Inch KT5207
Ketho vanity unit for console Compact 2 drawers, upper drawer
including cut-out for siphon and siphon cover, 35 3/8" x 18 7/8"
Inch
35 3/8" x 18 7/8" Inch KT5208
Ketho vanity unit for console Compact 2 drawers, upper drawer
including cut-out for siphon and siphon cover, 38 3/8" x 18 7/8"
Inch
38 3/8" x 18 7/8" Inch KT5209
Ketho vanity unit for console 2 drawers, upper drawer including
cut-out for siphon and siphon cover, 23 5/8" x 21 5/8" Inch
23 5/8" x 21 5/8" Inch KT5215
Ketho vanity unit for console 2 drawers, upper drawer including
cut-out for siphon and siphon cover, 27 1/2"x 21 5/8" Inch
27 1/2"x 21 5/8" Inch KT5216
Ketho vanity unit for console 2 drawers, upper drawer including
cut-out for siphon and siphon cover, 31 1/2" x 21 5/8" Inch
31 1/2" x 21 5/8" Inch KT5217
Luv Washbowl # 037960..00 / 037960..00 / 037960..00 /
037960..00
|< 23 5/8" Inch >|
Page 5
Ketho vanity unit for console 2 drawers, upper drawer including
cut-out for siphon and siphon cover, 35 3/8" x 21 5/8" Inch
35 3/8" x 21 5/8" Inch KT5218
Ketho vanity unit for console 2 drawers, upper drawer including
cut-out for siphon and siphon cover, 39 3/8" x 21 5/8" Inch
39 3/8" x 21 5/8" Inch KT5219
Vero vanity unit for console Compact 2 drawers, upper drawer
including cut-out for siphon and siphon cover, 23 5/8" x 17 5/8"
Inch
23 5/8" x 17 5/8" Inch VE5605
Vero vanity unit for console Compact 2 drawers, upper drawer
including cut-out for siphon and siphon cover, 27 1/2" x 17 5/8"
Inch
27 1/2" x 17 5/8" Inch VE5606
Vero vanity unit for console Compact 2 drawers, upper drawer
including cut-out for siphon and siphon cover, 31 1/2" x 17 5/8"
Inch
31 1/2" x 17 5/8" Inch VE5607
Vero vanity unit for console Compact 2 drawers, upper drawer
including cut-out for siphon and siphon cover, 35 3/8" x 17 5/8"
Inch
35 3/8" x 17 5/8" Inch VE5608
Vero vanity unit for console Compact 2 drawers, upper drawer
including cut-out for siphon and siphon cover, 39 3/8" x 17 5/8"
Inch
39 3/8" x 17 5/8" Inch VE5609
Vero vanity unit for console 2 drawers, upper drawer including
cut-out for siphon and siphon cover, 23 5/8" x 20 3/8" Inch
23 5/8" x 20 3/8" Inch VE5615
Vero vanity unit for console 2 drawers, upper drawer including
cut-out for siphon and siphon cover, 27 1/2" x 20 3/8" Inch
27 1/2" x 20 3/8" Inch VE5616
Vero vanity unit for console 2 drawers, upper drawer including
cut-out for siphon and siphon cover, 31 1/2" x 20 3/8" Inch
31 1/2" x 20 3/8" Inch VE5617
Vero vanity unit for console 2 drawers, upper drawer including
cut-out for siphon and siphon cover, 35 3/8" x 20 3/8" Inch
35 3/8" x 20 3/8" Inch VE5618
Vero vanity unit for console 2 drawers, upper drawer including
cut-out for siphon and siphon cover, 39 3/8" x 20 3/8" Inch
39 3/8" x 20 3/8" Inch VE5619
Vanity unit for console floorstanding 1 pull-out compartment,
52 5/8" x 22 1/2" Inch
52 5/8" x 22 1/2" Inch LU9561
Vanity unit for console floorstanding 2 pull-out compartments,
68 1/4" x 22 1/2" Inch
68 1/4" x 22 1/2" Inch LU9562 B
Vanity unit for console floorstanding 2 pull-out compartments,
68 1/4" x 22 1/2" Inch
68 1/4" x 22 1/2" Inch LU9563 L/R
Vanity unit for console floorstanding 1 pull-out compartment,
25 1/4" x 17 3/4" Inch
25 1/4" x 17 3/4" Inch LU9560
Vanity unit for console floorstanding 1 drawer, 1 pull-out
compartment, upper drawer including cut-out for siphon and
siphon cover, 25 1/4" x 17 3/4" Inch
25 1/4" x 17 3/4" Inch LU9565
Vanity unit for console floorstanding 1 drawer, 1 pull-out
compartment, upper drawer including cut-out for siphon and
siphon cover, 52 5/8" x 22 1/2" Inch
52 5/8" x 22 1/2" Inch LU9566
Vanity unit for console floorstanding 2 drawers, 2 pull-out
compartments, upper drawer including cut-out for siphon and
siphon cover, 68 1/4" x 22 1/2" Inch
68 1/4" x 22 1/2" Inch LU9567 B
Vanity unit for console floorstanding 2 drawers, 2 pull-out
compartments, 68 1/4" x 22 1/2" Inch
68 1/4" x 22 1/2" Inch LU9568 L/R
Luv Washbowl # 037960..00 / 037960..00 / 037960..00 /
037960..00
|< 23 5/8" Inch >|
Page 6
Brioso vanity unit for console Compact 2 drawers, upper drawer
including cut-out for siphon and siphon cover, 24 3/8" x 18 7/8"
Inch
24 3/8" x 18 7/8" Inch BR5105
Brioso vanity unit for console Compact 2 drawers, upper drawer
including cut-out for siphon and siphon cover, 28 3/8" x 18 7/8"
Inch
28 3/8" x 18 7/8" Inch BR5106
Brioso vanity unit for console Compact 2 drawers, upper drawer
including cut-out for siphon and siphon cover, 32 1/4" x 18 7/8"
Inch
32 1/4" x 18 7/8" Inch BR5107
Brioso vanity unit for console Compact 2 drawers, upper drawer
including cut-out for siphon and siphon cover, 36 1/4" x 18 7/8"
Inch
36 1/4" x 18 7/8" Inch BR5108
Brioso vanity unit for console Compact 2 drawers, upper drawer
including cut-out for siphon and siphon cover, 40 1/8" x 18 7/8"
Inch
40 1/8" x 18 7/8" Inch BR5109
Brioso vanity unit for console 2 drawers, upper drawer
including cut-out for siphon and siphon cover, 24 3/8" x 21 5/8"
Inch
24 3/8" x 21 5/8" Inch BR5115
Brioso vanity unit for console 2 drawers, upper drawer
including cut-out for siphon and siphon cover, 28 3/8" x 21 5/8"
Inch
28 3/8" x 21 5/8" Inch BR5116
Brioso vanity unit for console 2 drawers, upper drawer
including cut-out for siphon and siphon cover, 32 1/4" x 21 5/8"
Inch
32 1/4" x 21 5/8" Inch BR5117
Brioso vanity unit for console 2 drawers, upper drawer
including cut-out for siphon and siphon cover, 36 1/4" x 21 5/8"
Inch
36 1/4" x 21 5/8" Inch BR5118
Brioso vanity unit for console 2 drawers, upper drawer
including cut-out for siphon and siphon cover, 40 1/8" x 21 5/8"
Inch
40 1/8" x 21 5/8" Inch BR5119
Vanity unit for console wall-mounted 1 pull-out compartment,
31 1/2" x 21 5/8" Inch
31 1/2" x 21 5/8" Inch XS4900
Vanity unit for console wall-mounted 1 pull-out compartment,
39 3/8" x 21 5/8" Inch
39 3/8" x 21 5/8" Inch XS4901
Vanity unit for console wall-mounted 1 pull-out compartment,
47 1/4" x 21 5/8" Inch
47 1/4" x 21 5/8" Inch XS4902
Vanity unit for console wall-mounted 2 drawers, upper drawer
including cut-out for siphon and siphon cover, 31 1/2" x 21 5/8"
Inch
31 1/2" x 21 5/8" Inch XS4910
Vanity unit for console wall-mounted 2 drawers, upper drawer
including cut-out for siphon and siphon cover, 39 3/8" x 21 5/8"
Inch
39 3/8" x 21 5/8" Inch XS4911
Vanity unit for console wall-mounted 2 drawers, upper drawer
including cut-out for siphon and siphon cover, 47 1/4" x 21 5/8"
Inch
47 1/4" x 21 5/8" Inch XS4912
Vanity unit for console floorstanding 2 pull-out compartments,
integrated legs with height adjustment, 31 1/2" x 21 5/8" Inch
31 1/2" x 21 5/8" Inch XS4920
Vanity unit for console floorstanding 2 pull-out compartments,
integrated legs with height adjustment, 39 3/8" x 21 5/8" Inch
39 3/8" x 21 5/8" Inch XS4921
Luv Washbowl # 037960..00 / 037960..00 / 037960..00 /
037960..00
|< 23 5/8" Inch >|
Page 7
Vanity unit for console floorstanding 2 pull-out compartments,
integrated legs with height adjustment, 47 1/4" x 21 5/8" Inch
47 1/4" x 21 5/8" Inch XS4922
Vanity unit for console wall-mounted 2 pull-out compartments,
55 1/8" x 21 5/8" Inch
55 1/8" x 21 5/8" Inch XS4903 L/R
Vanity unit for console wall-mounted 2 pull-out compartments,
63" x 21 5/8" Inch
63" x 21 5/8" Inch XS4904 R/L
Vanity unit for console wall-mounted 4 drawers, 55 1/8" x 21
5/8" Inch
55 1/8" x 21 5/8" Inch XS4913 L/R
Vanity unit for console wall-mounted 4 drawers, 63" x 21 5/8"
Inch
63" x 21 5/8" Inch XS4914 L/R
Vanity unit for console floorstanding 4 pull-out compartments,
integrated legs with height adjustment, 55 1/8" x 21 5/8" Inch
55 1/8" x 21 5/8" Inch XS4923 R/L
Vanity unit for console floorstanding 4 pull-out compartments,
integrated legs with height adjustment, 63" x 21 5/8" Inch
63" x 21 5/8" Inch XS4924 L/R
Vanity unit for console wall-mounted 2 pull-out compartments,
55 1/8" x 2" Inch
55 1/8" x 2" Inch XS4906 B
Vanity unit for console wall-mounted 2 pull-out compartments,
63" x 21 5/8" Inch
63" x 21 5/8" Inch XS4907 B
Vanity unit for console wall-mounted 4 drawers, upper drawer
including cut-out for siphon and siphon cover, 55 1/8" x 21 5/8"
Inch
55 1/8" x 21 5/8" Inch XS4916 B
Vanity unit for console wall-mounted 4 drawers, upper drawer
including cut-out for siphon and siphon cover, 63" x 21 5/8"
Inch
63" x 21 5/8" Inch XS4917 B
Vanity unit for console floorstanding 4 pull-out compartments,
integrated legs with height adjustment, 55 1/8" x 21 5/8" Inch
55 1/8" x 21 5/8" Inch XS4926 B
Vanity unit for console floorstanding 4 pull-out compartments,
integrated legs with height adjustment, 63" x 21 5/8" Inch
63" x 21 5/8" Inch XS4927 B
XViu vanity unit for console Compact 2 drawers, upper drawer
including cut-out for siphon and siphon cover, 23 5/8" x 18 7/8"
Inch
23 5/8" x 18 7/8" Inch XV5905
XViu vanity unit for console Compact 2 drawers, upper drawer
including cut-out for siphon and siphon cover, 27 1/2" x 18 7/8"
Inch
27 1/2" x 18 7/8" Inch XV5906
XViu vanity unit for console Compact 2 drawers, upper drawer
including cut-out for siphon and siphon cover, 31 1/2" x 18 7/8"
Inch
31 1/2" x 18 7/8" Inch XV5907
XViu vanity unit for console Compact 2 drawers, upper drawer
including cut-out for siphon and siphon cover, 35 3/8" x 18 7/8"
Inch
35 3/8" x 18 7/8" Inch XV5908
XViu vanity unit for console Compact 2 drawers, upper drawer
including cut-out for siphon and siphon cover, 39 3/8" x 18 7/8"
Inch
39 3/8" x 18 7/8" Inch XV5909
All drawings contain the necessary measurements which are subject to standard tolerances. They are stated in inch & mm and are nonbinding. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished ceramic piece.
Luv Washbowl # 037960..00 / 037960..00 / 037960..00 /
037960..00
|< 23 5/8" Inch >|
Loading...
