Page 1
Furniture washbasinFurniture washbasin DimensionDimension WeightWeight Order numberOrder number
with faucet deck, hardware included, wall-mounted, cUPC
listed, 33 1/2" Inch
ColorsColors
00 White
VariantVariant
p with overflow
33 1/2" x 19 1/8" Inch 49.3 lb 0304800000
p p p with overflow
33 1/2" x 19 1/8" Inch 49.3 lb 0304800087
InfoboxInfobox
Suitable for universal vanity units and vanity units of Ketho, L-Cube and X-Large, Washbasin is not ADA compliant
in combination with pedestal, siphon cover or metal console
Sanitary ceramics with the special WonderGliss surface finish will remain clean and attractive-looking for a long
time to come.
When ordering WonderGliss please add a "1" as eleventh digit to the model number.
Space-saving siphon 1 1/4" Inch 0.9 lb 005076
Suitable productsSuitable products
Pedestal for # 030065, 030060, 030055, 030410, 030480,
030470, 033213, 030760, 030750, 28" x 8 1/4" Inch
28" x 8 1/4" Inch 086516
Siphon cover for # 030065, 030060, 030055, 030410, 030480,
030470, 033213, 030760, 030750, 6 3/4" x 11 1/4" Inch
6 3/4" x 11 1/4" Inch 086515
Vanity unit wall-mounted 1 pull-out compartment, for Starck 3
# 030480, 31 1/2" x 18 1/4" Inch
31 1/2" x 18 1/4" Inch KT6664

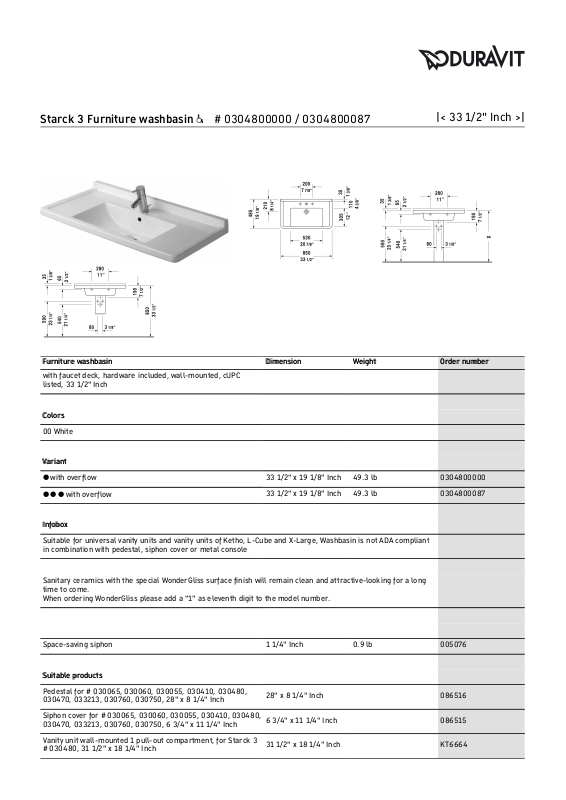

Starck 3 Furniture washbasin Ÿ # 0304800000 / 0304800087
|< 33 1/2" Inch >|
Page 2
Vanity unit wall-mounted 2 drawers, upper drawer including
cut-out for siphon and siphon cover, for Starck 3 # 030480, 31
1/2" x 18 1/4" Inch
31 1/2" x 18 1/4" Inch KT6644
Vanity unit wall-mounted 1 pull-out compartment, for Starck 3
# 030480, 31 1/2" x 18 1/2" Inch
31 1/2" x 18 1/2" Inch DS6388
Vanity unit wall-mounted 2 drawers, upper drawer including
cut-out for siphon and siphon cover, for Starck 3 # 030480, 31
1/2" x 18 1/2" Inch
31 1/2" x 18 1/2" Inch DS6488
Vanity unit wall-mounted 1 pull-out compartment,
compartment consists of glass dividers and 2 boxes
(small/large), for Starck 3 # 030480, 030470, 23 5/8" x 18
3/8" Inch
23 5/8" x 18 3/8" Inch XL6056
Vanity unit wall-mounted 1 pull-out compartment,
compartment consists of glass dividers and 2 boxes
(small/large), for Starck 3 # 030410, 030480, 31 1/2" x 18 3/8"
Inch
31 1/2" x 18 3/8" Inch XL6057
Vanity unit floorstanding 2 pull-out compartments, upper
drawer including cut-out for siphon and siphon cover, for
Starck 3 # 030480, 31 1/2" x 18 1/2" Inch
31 1/2" x 18 1/2" Inch XL6536
Vanity unit wall-mounted 1 pull-out compartment, for Starck 3
# 030480, 32 1/4" x 18 1/2" Inch
32 1/4" x 18 1/2" Inch LC6165
Vanity unit wall-mounted with 2 drawers, upper drawer
including cut-out for siphon and siphon cover, for Starck 3 #
030480, 32 1/4" x 18 1/2" Inch
32 1/4" x 18 1/2" Inch LC6265
Vanity unit floorstanding 2 pull-out compartments, upper
drawer including cut-out for siphon and siphon cover, for
Starck 3 # 030480, 32 1/4" x 18 1/2" Inch
32 1/4" x 18 1/2" Inch LC6609
Vanity unit wall-mounted 1 pull-out compartment, for Starck 3
# 030480, 32 1/4" x 18 1/2" Inch
32 1/4" x 18 1/2" Inch BR4042
Vanity unit wall-mounted with 2 drawers, upper drawer
including cut-out for siphon and siphon cover, for Starck 3 #
030480, 32 1/4" x 18 1/2" Inch
32 1/4" x 18 1/2" Inch BR4142
Vanity unit floorstanding 2 pull-out compartments, upper
drawer including cut-out for siphon and siphon cover, for
Starck 3 # 030480, 32 1/4" x 18 1/2" Inch
32 1/4" x 18 1/2" Inch BR4422
All drawings contain the necessary measurements which are subject to standard tolerances. They are stated in inch & mm and are nonbinding. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished ceramic piece.
Starck 3 Furniture washbasin Ÿ # 0304800000 / 0304800087
|< 33 1/2" Inch >|
