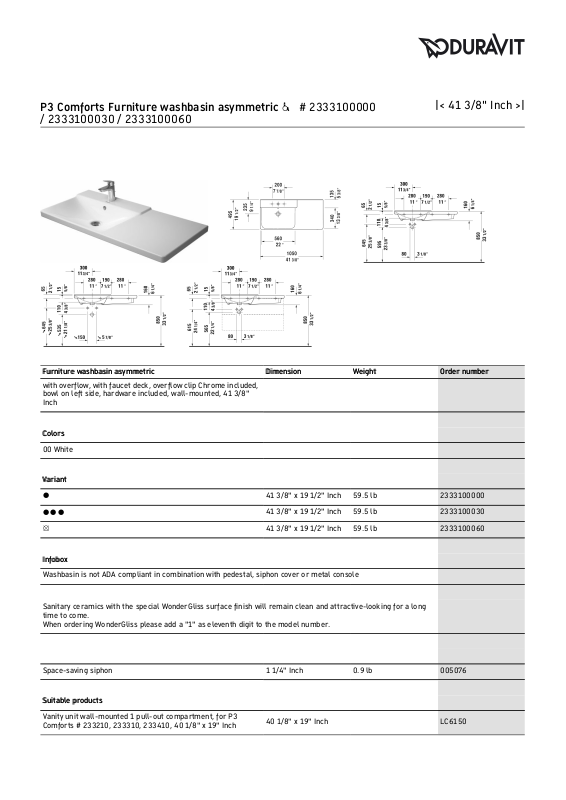

Page 1
Furniture washbasin asymmetricFurniture washbasin asymmetric DimensionDimension WeightWeight Order numberOrder number
with overflow, with faucet deck, overflow clip Chrome included,
bowl on left side, hardware included, wall-mounted, 41 3/8"
Inch
ColorsColors
00 White
VariantVariant
p
41 3/8" x 19 1/2" Inch 59.5 lb 2333100000
p p p
41 3/8" x 19 1/2" Inch 59.5 lb 2333100030
•
41 3/8" x 19 1/2" Inch 59.5 lb 2333100060
InfoboxInfobox
Washbasin is not ADA compliant in combination with pedestal, siphon cover or metal console
Sanitary ceramics with the special WonderGliss surface finish will remain clean and attractive-looking for a long
time to come.
When ordering WonderGliss please add a "1" as eleventh digit to the model number.
Space-saving siphon 1 1/4" Inch 0.9 lb 005076
Suitable productsSuitable products
Vanity unit wall-mounted 1 pull-out compartment, for P3
Comforts # 233210, 233310, 233410, 40 1/8" x 19" Inch
40 1/8" x 19" Inch LC6150
P3 Comforts Furniture washbasin asymmetric Ÿ # 2333100000
/ 2333100030 / 2333100060
|< 41 3/8" Inch >|
Page 2
Vanity unit wall-mounted 2 drawers, upper drawer including
cut-out for siphon and siphon cover, for P3 Comforts # 233310
basin left, 40 1/8" x 19" Inch
40 1/8" x 19" Inch LC6251
Vanity unit floorstanding 2 pull-out compartments, for P3
Comforts # 233210, 233310, 233410, 40 1/8" x 19" Inch
40 1/8" x 19" Inch LC6602
All drawings contain the necessary measurements which are subject to standard tolerances. They are stated in inch & mm and are nonbinding. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished ceramic piece.
P3 Comforts Furniture washbasin asymmetric Ÿ # 2333100000
/ 2333100030 / 2333100060
|< 41 3/8" Inch >|
