Page 1

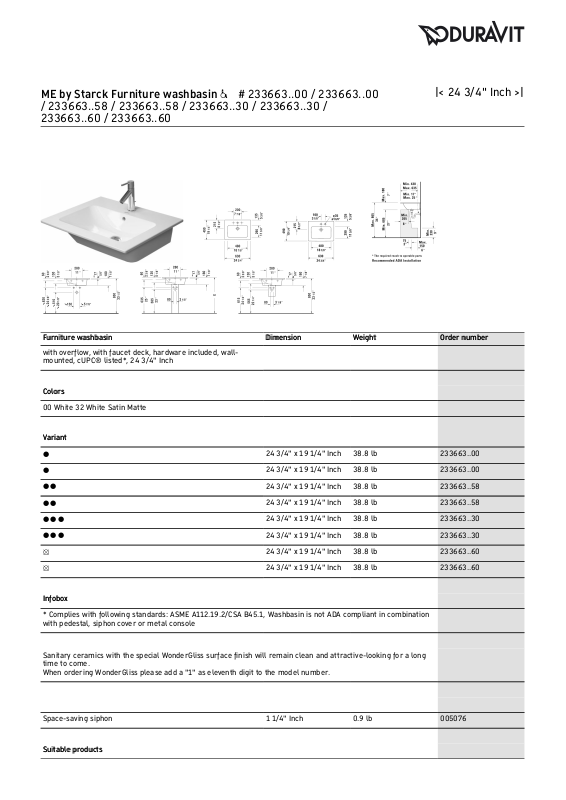

Furniture washbasinFurniture washbasin DimensionDimension WeightWeight Order numberOrder number
with overflow, with faucet deck, hardware included, wallmounted, cUPC® listed*, 24 3/4" Inch
ColorsColors
00 White 32 White Satin Matte
VariantVariant
p
24 3/4" x 19 1/4" Inch 38.8 lb 233663..00
p
24 3/4" x 19 1/4" Inch 38.8 lb 233663..00
p p
24 3/4" x 19 1/4" Inch 38.8 lb 233663..58
p p
24 3/4" x 19 1/4" Inch 38.8 lb 233663..58
p p p
24 3/4" x 19 1/4" Inch 38.8 lb 233663..30
p p p
24 3/4" x 19 1/4" Inch 38.8 lb 233663..30
•
24 3/4" x 19 1/4" Inch 38.8 lb 233663..60
•
24 3/4" x 19 1/4" Inch 38.8 lb 233663..60
InfoboxInfobox
* Complies with following standards: ASME A112.19.2/CSA B45.1, Washbasin is not ADA compliant in combination
with pedestal, siphon cover or metal console
Sanitary ceramics with the special WonderGliss surface finish will remain clean and attractive-looking for a long
time to come.
When ordering WonderGliss please add a "1" as eleventh digit to the model number.
Space-saving siphon 1 1/4" Inch 0.9 lb 005076
Suitable productsSuitable products
ME by Starck Furniture washbasin Ÿ # 233663..00 / 233663..00
/ 233663..58 / 233663..58 / 233663..30 / 233663..30 /
233663..60 / 233663..60
|< 24 3/4" Inch >|
Page 2
Vanity unit wall-mounted 1 pull-out compartment, for ME by
Starck # 233663, 24 3/8" x 19" Inch
24 3/8" x 19" Inch LC6140
Vanity unit wall-mounted 2 drawers, upper drawer including
cut-out for siphon and siphon cover, for ME by Starck #
233663, 24 3/8" x 19" Inch
24 3/8" x 19" Inch LC6240
Vanity unit floorstanding 2 pull-out compartments, upper
drawer including cut-out for siphon and siphon cover, for ME by
Starck # 233663, 24 3/8" x 19" Inch
24 3/8" x 19" Inch LC6625
Pedestal for # 233565, 233560, 233555, 233613, 233612,
233610, 233683, 233663, 236112, 233653, 6 7/8" x 8 1/4"
Inch
6 7/8" x 8 1/4" Inch 085839
Siphon cover for # 233565, 233560, 233555, 233613, 233612,
233610, 233683, 233663, 236112, 233653, 6 3/4" x 11 3/4"
Inch
6 3/4" x 11 3/4" Inch 085840
Vanity unit wall-mounted 1 pull-out compartment, for ME by
Starck # 233663, 23 5/8" x 18 3/4" Inch
23 5/8" x 18 3/4" Inch KT6418
Vanity unit wall-mounted 2 drawers, upper drawer including
cut-out for siphon and siphon cover, for ME by Starck #
233663, 23 5/8" x 18 3/4" Inch
23 5/8" x 18 3/4" Inch KT6428
Vanity unit wall-mounted 1 pull-out compartment, for ME by
Starck # 233663, 24 3/8" x 18 7/8" Inch
24 3/8" x 18 7/8" Inch BR4001
Vanity unit wall-mounted 2 drawers, upper drawer including
cut-out for siphon and siphon cover, for ME by Starck #
233663, 24 3/8" x 18 7/8" Inch
24 3/8" x 18 7/8" Inch BR4101
Vanity unit floorstanding 2 pull-out compartments, upper
drawer including cut-out for siphon and siphon cover, for ME by
Starck # 233663, 24 3/8" x 18 7/8" Inch
24 3/8" x 18 7/8" Inch BR4401
Vanity unit wall-mounted 1 pull-out compartment, for ME by
Starck # 233663, 24" x 18 7/8" Inch
24" x 18 7/8" Inch XS4071
Vanity unit wall-mounted 2 drawers, upper drawer including
cut-out for siphon and siphon cover, for ME by Starck #
233663, 24" x 18 7/8" Inch
24" x 18 7/8" Inch XS4171
Vanity unit floorstanding 2 pull-out compartments, upper
drawer including cut-out for siphon and siphon cover,
integrated legs with height adjustment, for ME by Starck #
233663, 24" x 18 7/8" Inch
24" x 18 7/8" Inch XS4445
Vanity unit wall-mounted 1 pull-out compartment, for ME by
Starck # 233663, 23 5/8" x 18 3/4" Inch
23 5/8" x 18 3/4" Inch XB6030
Vanity unit wall-mounted 2 drawers, upper drawer including
cut-out for siphon and siphon cover, for ME by Starck #
233663, 23 5/8" x 18 3/4" Inch
23 5/8" x 18 3/4" Inch XB6120
Vanity unit wall-mounted 1 pull-out compartment, for ME by
Starck # 233663, 24" x 18 7/8" Inch
24" x 18 7/8" Inch XV4025
Vanity unit wall-mounted 2 drawers, upper drawer including
cut-out for siphon and siphon cover, for ME by Starck #
233663, 24" x 18 7/8" Inch
24" x 18 7/8" Inch XV4125
Vanity unit floorstanding 2 pull-out compartments, upper
drawer including cut-out for siphon and siphon cover, for ME by
Starck # 233663, 24" x 18 7/8" Inch
24" x 18 7/8" Inch XV4481
ME by Starck Furniture washbasin Ÿ # 233663..00 / 233663..00
/ 233663..58 / 233663..58 / 233663..30 / 233663..30 /
233663..60 / 233663..60
|< 24 3/4" Inch >|
Page 3
All drawings contain the necessary measurements which are subject to standard tolerances. They are stated in inch & mm and are nonbinding. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished ceramic piece.
ME by Starck Furniture washbasin Ÿ # 233663..00 / 233663..00
/ 233663..58 / 233663..58 / 233663..30 / 233663..30 /
233663..60 / 233663..60
|< 24 3/4" Inch >|
