Page 1
Furniture washbasinFurniture washbasin DimensionDimension WeightWeight Order numberOrder number
with faucet deck, underside fully glazed, wall-mounted,
hardware included, cUPC listed, 41 3/8" Inch
ColorsColors
00 White
VariantVariant
p with overflow
41 3/8" x 19 1/4" Inch 71.4 lb 0329100000
• with overflow
41 3/8" x 19 1/4" Inch 71.4 lb 0329100060
p p p with overflow
41 3/8" x 19 1/4" Inch 71.4 lb 0329100087
InfoboxInfobox
For installing ceramics larger than 39 3/8", 2 sets of basin hardware # 6951000000 are required, Washbasin is
not ADA compliant in combination with pedestal, siphon cover or metal console
Sanitary ceramics with the special WonderGliss surface finish will remain clean and attractive-looking for a long
time to come.
When ordering WonderGliss please add a "1" as eleventh digit to the model number.
Metal console height adjustable +2", for furniture washbasin #
032910
7.3 lb 003072

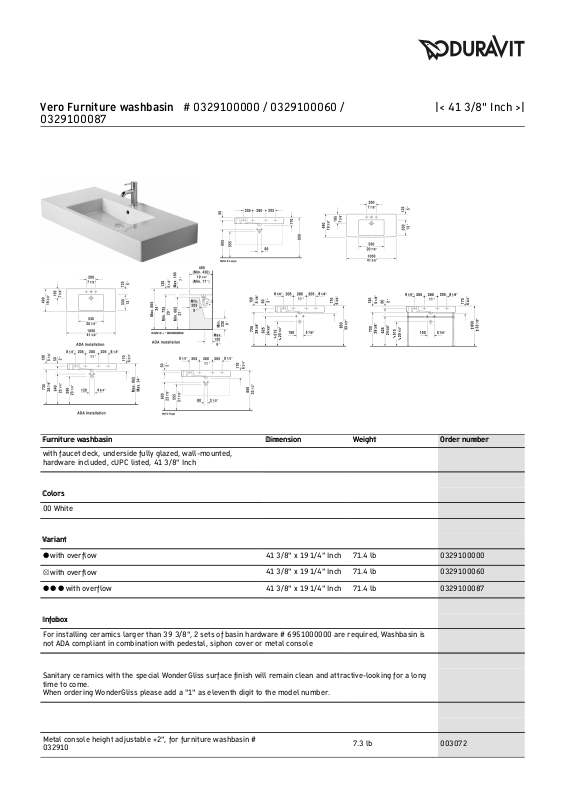

Vero Furniture washbasin # 0329100000 / 0329100060 /
0329100087
|< 41 3/8" Inch >|
Page 2
Towel rail square tube 1/2", Chrome 39 3/4" Inch 1.3 lb 003035
Space-saving siphon 1 1/4" Inch 0.9 lb 005076
Design Siphon 3.3 lb 005036
Suitable productsSuitable products
Vanity unit wall-mounted 1 pull-out compartment, 3 glass
dividers, 2 box drawers large, 2 box drawers small, (not
ground), for Vero # 032910, 39 3/8" x 18 1/4" / 15" Inch
39 3/8" x 18 1/4" / 15"
Inch
FO9573
Vanity unit wall-mounted 1 pull-out compartment, for Vero #
032910 (not ground), 39 3/8" x 17 7/8" Inch
39 3/8" x 17 7/8" Inch KT6691
Vanity unit wall-mounted 2 drawers, upper drawer including
cut-out for siphon and siphon cover, for Vero # 032910 (not
ground), 39 3/8" x 17 7/8" Inch
39 3/8" x 17 7/8" Inch KT6641
Vanity unit wall-mounted 2 drawers, upper drawer including
cut-out for siphon and siphon cover, for Vero # 032910 (not
ground), 39 3/8" x 18 1/2" Inch
39 3/8" x 18 1/2" Inch DL6321
Vanity unit wall-mounted 1 pull-out compartment,
compartment consists of glass dividers and 2 boxes
(small/large), for Vero # 032910 (not ground), 39 3/8" x 18
3/8" Inch
39 3/8" x 18 3/8" Inch XL6053
Vanity unit wall-mounted 2 drawers, upper drawer including
cut-out for siphon and siphon cover, for Vero # 032910 (not
ground), 39 3/8" x 18 3/8" Inch
39 3/8" x 18 3/8" Inch XL6353
Vanity unit wall-mounted 1 pull-out compartment, pull-out
compartment including cut-out for siphon and siphon cover, for
Vero # 032910 (not ground), 39 3/8" x 17 1/2" Inch
39 3/8" x 17 1/2" Inch VE6114
Vanity unit wall-mounted 2 drawers, upper drawer including
cut-out for siphon and siphon cover, for Vero # 032910 (not
ground), 39 3/8" x 17 1/2" Inch
39 3/8" x 17 1/2" Inch VE6214
Vanity unit floorstanding 1 pull-out compartment, 2 drawers,
upper drawer including cut-out for siphon and siphon cover, for
Vero # 032910 (not ground), 39 3/8" x 17 1/2" Inch
39 3/8" x 17 1/2" Inch VE6414
Vanity unit floorstanding 2 pull-out compartments, for Vero #
032910 (not ground), 39 3/8" x 18 1/2" Inch
39 3/8" x 18 1/2" Inch XL6544
Vanity unit floorstanding 3 drawers, upper drawer including
cut-out for siphon and siphon cover, for Vero # 032910 (not
ground), 39 3/8" x 18 1/2" Inch
39 3/8" x 18 1/2" Inch XL6554
All drawings contain the necessary measurements which are subject to standard tolerances. They are stated in inch & mm and are nonbinding. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished ceramic piece.
Vero Furniture washbasin # 0329100000 / 0329100060 /
0329100087
|< 41 3/8" Inch >|
