Furniture washbasinFurniture washbasin DimensionDimension WeightWeight Order numberOrder number
with faucet deck, underside fully glazed, hardware included,
wall-mounted, 47 1/4" Inch
ColorsColors
00 White
VariantVariant
p with overflow
47 1/4" x 18 7/8" Inch 62.8 lb 2320120000
p p p with overflow
47 1/4" x 18 7/8" Inch 62.8 lb 2320120030
InfoboxInfobox
For installing ceramics larger than 47 1/4", 2 sets of basin hardware # 6951000000 are required, Washbasin is
not ADA compliant in combination with pedestal, siphon cover or metal console
Sanitary ceramics with the special WonderGliss surface finish will remain clean and attractive-looking for a long
time to come.
When ordering WonderGliss please add a "1" as eleventh digit to the model number.
Accessory for ceramicsAccessory for ceramics
Push button drain assembly for washbasins with overflow 2" Inch 0.8 lb 005052
Siphon for washbasin with outlet pipe 11 3/4" 1 1/4" Inch 1.3 lb 005026
Suitable productsSuitable products
Siphon cover for # 231955, 231960, 231965, 232012, 232010,
232080, 232065, 232610, 232680, 232510, 232580, 233813,
232460, 232455,
085830

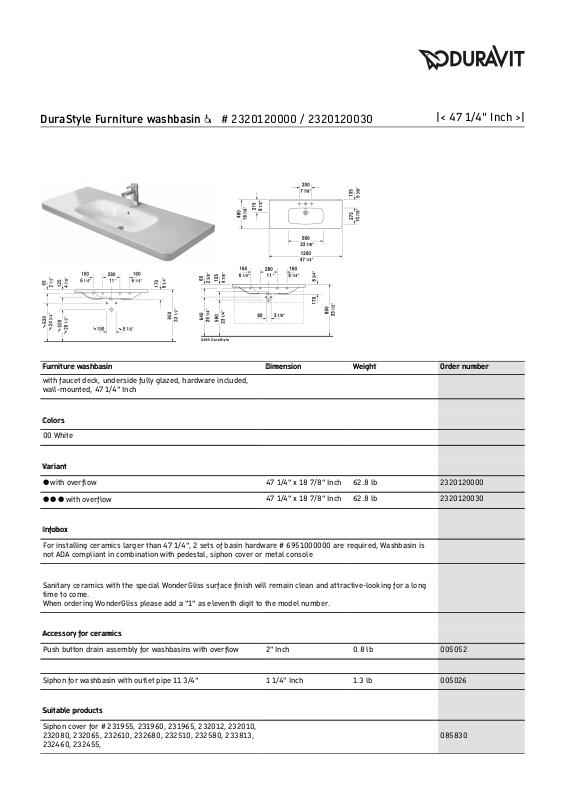

DuraStyle Furniture washbasin Ÿ # 2320120000 / 2320120030
|< 47 1/4" Inch >|
Page 2
Pedestal for # 231955, 231960, 231965, 232012, 232010,
232080, 232065, 232610, 232680, 232510, 232580, 233813,
232460, 232455,
085829
Vanity unit wall-mounted 2 drawers, upper drawer including
cut-out for siphon and siphon cover, for DuraStyle # 232012, 44
1/2" x 17 5/8" Inch
44 1/2" x 17 5/8" Inch DS6495
Vanity unit wall-mounted 1 pull-out compartment, for DuraStyle
# 232012, 44 1/2" x 17 5/8" Inch
44 1/2" x 17 5/8" Inch DS6395
Funiture - ACC towel rail for DuraStyle # 232012, 44 7/8" x 17
3/8" Inch
44 7/8" x 17 3/8" Inch DS9894
Furniture - ACC towel rail with included shelf for DuraStyle #
232012, 44 7/8" x 17 3/8" Inch
44 7/8" x 17 3/8" Inch DS9884
All drawings contain the necessary measurements which are subject to standard tolerances. They are stated in inch & mm and are nonbinding. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished ceramic piece.
DuraStyle Furniture washbasin Ÿ # 2320120000 / 2320120030
|< 47 1/4" Inch >|
