Above-counter basinAbove-counter basin DimensionDimension WeightWeight Order numberOrder number
ground, with faucet deck, back side glazed, hardware included,
cUPC listed, 23 3/8" Inch
ColorsColors
00 White 08 Black
VariantVariant
p with overflow
23 3/8" x 18 1/4" Inch 39.5 lb 045260..00
• with overflow
23 3/8" x 18 1/4" Inch 39.5 lb 045260..60
p p p with overflow
23 3/8" x 18 1/4" Inch 39.5 lb 045260..30
InfoboxInfobox
* When using this siphon please observe outlet height from upper surface of finished floor to center of outlet in
accordance with the technical specification sheet, Installation with a distance to the wall is required
Sanitary ceramics with the special WonderGliss surface finish will remain clean and attractive-looking for a long
time to come.
When ordering WonderGliss please add a "1" as eleventh digit to the model number.
Design Siphon 3.3 lb 005036

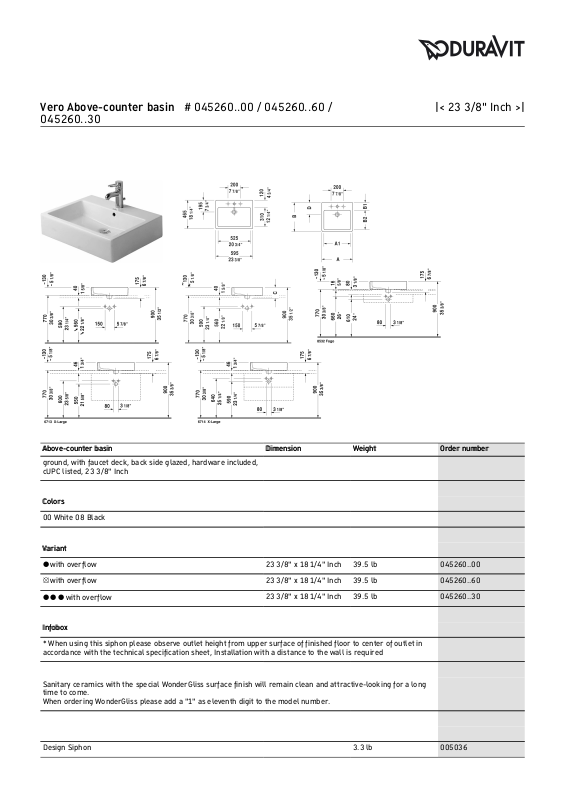

Vero Above-counter basin # 045260..00 / 045260..60 /
045260..30
|< 23 3/8" Inch >|
Page 2
Suitable productsSuitable products
Vanity unit wall-mounted 1 pull-out compartment, countertop
including one cut-out, for 1 above-counter basin central, 31
1/2" x 21 5/8" Inch
31 1/2" x 21 5/8" Inch KT6694
Vanity unit wall-mounted 1 pull-out compartment, countertop
including one cut-out, for 1 above-counter basin central, 39
3/8" x 21 5/8" Inch
39 3/8" x 21 5/8" Inch KT6695
Vanity unit wall-mounted 1 pull-out compartment, countertop
including one cut-out, for 1 above-counter basin central, 47
1/4" x 21 5/8" Inch
47 1/4" x 21 5/8" Inch KT6696
Vanity unit wall-mounted 2 pull-out compartments, 1
countertop with one cut-out or two cut-outs, for 1 or 2 abovecounter basins, 55 1/8" x 21 5/8" Inch
55 1/8" x 21 5/8" Inch KT6697 B/L/R
Vanity unit wall-mounted 2 drawers, upper drawer including
cut-out for siphon and siphon cover, countertop including one
cut-out, for 1 above-counter basin central, 31 1/2" x 21 5/8"
Inch
31 1/2" x 21 5/8" Inch KT6654
Vanity unit wall-mounted 2 drawers, upper drawer including
cut-out for siphon and siphon cover, countertop including one
cut-out, for 1 above-counter basin central, 39 3/8" x 21 5/8"
Inch
39 3/8" x 21 5/8" Inch KT6655
Vanity unit wall-mounted 2 drawers, upper drawer including
cut-out for siphon and siphon cover, countertop including one
cut-out, for 1 above-counter basin central, 47 1/4" x 21 5/8"
Inch
47 1/4" x 21 5/8" Inch KT6656
Vanity unit wall-mounted 4 drawers, drawer beneath basin
including cut-out for siphon and siphon cover, 1 countertop with
one cut-out or two cut-outs, for 1 or 2 above-counter basins, 55
1/8" x 21 5/8" Inch
55 1/8" x 21 5/8" Inch KT6657 B/L/R
Vanity unit wall-mounted 1 pull-out compartment, 1 countertop
including one central cut-out, 32 7/8" x 22 1/4" Inch
32 7/8" x 22 1/4" Inch S19526
Vanity unit wall-mounted 1 pull-out compartment, countertop
including one cut-out, 48 5/8" x 22 1/4" Inch
48 5/8" x 22 1/4" Inch S19528 L/M/R
Vanity unit wall-mounted 1 pull-out compartment, 31 1/2" x 21
5/8" Inch
31 1/2" x 21 5/8" Inch XS4900
Vanity unit wall-mounted 1 pull-out compartment, 39 3/8" x 21
5/8" Inch
39 3/8" x 21 5/8" Inch XS4901
Vanity unit wall-mounted 1 pull-out compartment, 47 1/4" x 21
5/8" Inch
47 1/4" x 21 5/8" Inch XS4902
Vanity unit wall-mounted 2 drawers, upper drawer including
cut-out for siphon and siphon cover, 31 1/2" x 21 5/8" Inch
31 1/2" x 21 5/8" Inch XS4910
Vanity unit wall-mounted 2 drawers, upper drawer including
cut-out for siphon and siphon cover, 39 3/8" x 21 5/8" Inch
39 3/8" x 21 5/8" Inch XS4911
Vanity unit wall-mounted 2 drawers, upper drawer including
cut-out for siphon and siphon cover, 47 1/4" x 21 5/8" Inch
47 1/4" x 21 5/8" Inch XS4912
Vanity unit floorstanding 2 pull-out compartments, integrated
legs with height adjustment, 31 1/2" x 21 5/8" Inch
31 1/2" x 21 5/8" Inch XS4920
Vanity unit floorstanding 2 pull-out compartments, integrated
legs with height adjustment, 39 3/8" x 21 5/8" Inch
39 3/8" x 21 5/8" Inch XS4921
Vero Above-counter basin # 045260..00 / 045260..60 /
045260..30
|< 23 3/8" Inch >|
Page 3
Vanity unit floorstanding 2 pull-out compartments, integrated
legs with height adjustment, 47 1/4" x 21 5/8" Inch
47 1/4" x 21 5/8" Inch XS4922
Vanity unit wall-mounted 2 pull-out compartments, 63" x 21
5/8" Inch
63" x 21 5/8" Inch XS4904 R/L
Vanity unit wall-mounted 4 drawers, 55 1/8" x 21 5/8" Inch 55 1/8" x 21 5/8" Inch XS4913 L/R
Vanity unit wall-mounted 4 drawers, 63" x 21 5/8" Inch 63" x 21 5/8" Inch XS4914 L/R
Vanity unit floorstanding 4 pull-out compartments, integrated
legs with height adjustment, 55 1/8" x 21 5/8" Inch
55 1/8" x 21 5/8" Inch XS4923 R/L
Vanity unit floorstanding 4 pull-out compartments, integrated
legs with height adjustment, 63" x 21 5/8" Inch
63" x 21 5/8" Inch XS4924 L/R
Vanity unit wall-mounted 2 pull-out compartments, 55 1/8" x 2"
Inch
55 1/8" x 2" Inch XS4906 B
Vanity unit wall-mounted 2 pull-out compartments, 63" x 21
5/8" Inch
63" x 21 5/8" Inch XS4907 B
Vanity unit wall-mounted 4 drawers, upper drawer including
cut-out for siphon and siphon cover, 63" x 21 5/8" Inch
63" x 21 5/8" Inch XS4917 B
Vanity unit floorstanding 4 pull-out compartments, integrated
legs with height adjustment, 55 1/8" x 21 5/8" Inch
55 1/8" x 21 5/8" Inch XS4926 B
Vanity unit floorstanding 4 pull-out compartments, integrated
legs with height adjustment, 63" x 21 5/8" Inch
63" x 21 5/8" Inch XS4927 B
All drawings contain the necessary measurements which are subject to standard tolerances. They are stated in inch & mm and are nonbinding. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished ceramic piece.
Vero Above-counter basin # 045260..00 / 045260..60 /
045260..30
|< 23 3/8" Inch >|
