Page 1
Washbasin groundWashbasin ground DimensionDimension WeightWeight Order numberOrder number
with faucet deck, hardware included, wall-mounted, cUPC
listed, 31 1/2" Inch
ColorsColors
00 White 08 Black
VariantVariant
p p p with overflow
31 1/2" x 18 1/2" Inch 48.1 lb 045480..25
p with overflow
31 1/2" x 18 1/2" Inch 48.1 lb 045480..27
• with overflow
31 1/2" x 18 1/2" Inch 48.1 lb 045480..28
Sanitary ceramics with the special WonderGliss surface finish will remain clean and attractive-looking for a long
time to come.
When ordering WonderGliss please add a "1" as eleventh digit to the model number.
Accessory for ceramicsAccessory for ceramics
Push button drain assembly for washbasins with overflow 2" Inch 0.8 lb 005052
Design Siphon 3.3 lb 005036
Suitable productsSuitable products
Vanity unit wall-mounted 1 pull-out compartment, countertop
including one cut-out, for 1 above-counter basin central, 39
3/8" x 21 5/8" Inch
39 3/8" x 21 5/8" Inch KT6695
Vanity unit wall-mounted 1 pull-out compartment, countertop
including one cut-out, for 1 above-counter basin central, 47
1/4" x 21 5/8" Inch
47 1/4" x 21 5/8" Inch KT6696

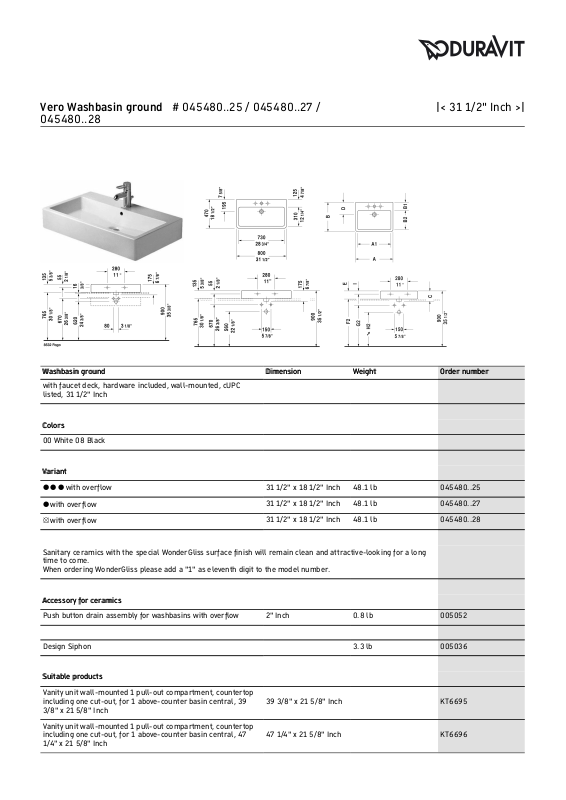

Vero Washbasin ground # 045480..25 / 045480..27 /
045480..28
|< 31 1/2" Inch >|
Page 2
Vanity unit wall-mounted 2 drawers, upper drawer including
cut-out for siphon and siphon cover, countertop including one
cut-out, for 1 above-counter basin central, 39 3/8" x 21 5/8"
Inch
39 3/8" x 21 5/8" Inch KT6655
Vanity unit wall-mounted 2 drawers, upper drawer including
cut-out for siphon and siphon cover, countertop including one
cut-out, for 1 above-counter basin central, 47 1/4" x 21 5/8"
Inch
47 1/4" x 21 5/8" Inch KT6656
Vanity unit wall-mounted 1 pull-out compartment, 1 countertop
including one central cut-out, 32 7/8" x 22 1/4" Inch
32 7/8" x 22 1/4" Inch S19526
Vanity unit wall-mounted 1 pull-out compartment, countertop
including one cut-out, 48 5/8" x 22 1/4" Inch
48 5/8" x 22 1/4" Inch S19528 L/M/R
Vanity unit wall-mounted 1 pull-out compartment, 31 1/2" x 21
5/8" Inch
31 1/2" x 21 5/8" Inch XS4900
Vanity unit wall-mounted 1 pull-out compartment, 39 3/8" x 21
5/8" Inch
39 3/8" x 21 5/8" Inch XS4901
Vanity unit wall-mounted 1 pull-out compartment, 47 1/4" x 21
5/8" Inch
47 1/4" x 21 5/8" Inch XS4902
Vanity unit wall-mounted 2 drawers, upper drawer including
cut-out for siphon and siphon cover, 39 3/8" x 21 5/8" Inch
39 3/8" x 21 5/8" Inch XS4911
Vanity unit wall-mounted 2 drawers, upper drawer including
cut-out for siphon and siphon cover, 47 1/4" x 21 5/8" Inch
47 1/4" x 21 5/8" Inch XS4912
Vanity unit floorstanding 2 pull-out compartments, integrated
legs with height adjustment, 39 3/8" x 21 5/8" Inch
39 3/8" x 21 5/8" Inch XS4921
Vanity unit floorstanding 2 pull-out compartments, integrated
legs with height adjustment, 47 1/4" x 21 5/8" Inch
47 1/4" x 21 5/8" Inch XS4922
All drawings contain the necessary measurements which are subject to standard tolerances. They are stated in inch & mm and are nonbinding. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished ceramic piece.
Vero Washbasin ground # 045480..25 / 045480..27 /
045480..28
|< 31 1/2" Inch >|
