Furniture washbasinFurniture washbasin DimensionDimension WeightWeight Order numberOrder number
with faucet deck, underside fully glazed, hardware included,
wall-mounted, cUPC® listed*, 19 5/8" Inch
ColorsColors
00 White
VariantVariant
p with overflow
19 5/8" x 18 1/2" Inch 33.5 lb 0454500000
p p p with overflow
19 5/8" x 18 1/2" Inch 33.5 lb 0454500030
InfoboxInfobox
* Complies with following standards: ASME A112.19.2/CSA B45.1, Washbasin is not ADA compliant in combination
with pedestal, siphon cover or metal console
Sanitary ceramics with the special WonderGliss surface finish will remain clean and attractive-looking for a long
time to come.
When ordering WonderGliss please add a "1" as eleventh digit to the model number.
Accessory for ceramicsAccessory for ceramics
Push button drain assembly for washbasins with overflow 2" Inch 0.8 lb 005052
Towel rail square tube 1/2", Chrome, for washbasin # 045450,
235050, 235350
17 3/4" Inch 1.1 lb 003029
Design Siphon 3.3 lb 005036
Suitable productsSuitable products
Metal console height adjustable +2", for washbasin # 045450,
235050,
003065

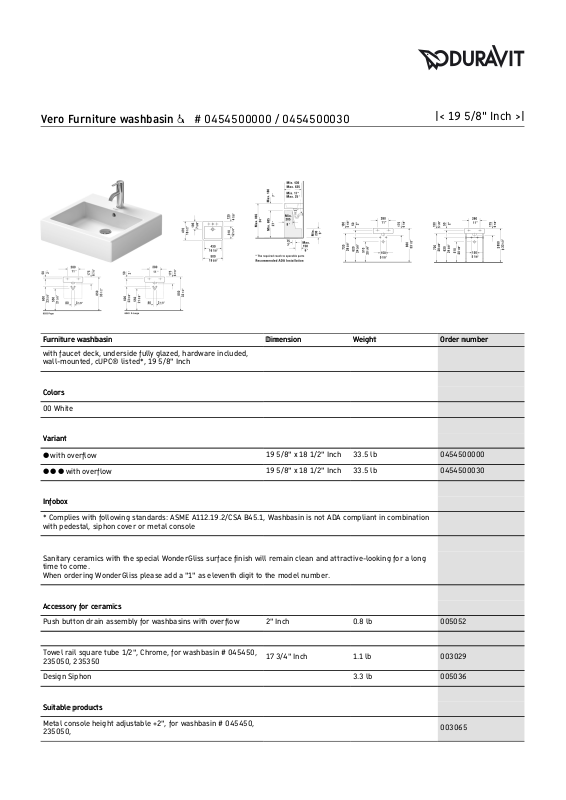

Vero Furniture washbasin Ÿ # 0454500000 / 0454500030
|< 19 5/8" Inch >|
Page 2
Vanity unit wall-mounted 1 pull-out compartment, for Vero #
045450, 17 3/4" x 17 3/8" Inch
17 3/4" x 17 3/8" Inch KT6685
Vanity unit wall-mounted 2 drawers, upper drawer including
cut-out for siphon and siphon cover, for Vero # 045450, 17 3/4"
x 17 3/8" Inch
17 3/4" x 17 3/8" Inch KT6635
Vanity unit wall-mounted 1 pull-out compartment, for Vero #
045450, without compartment inserts, 17 3/4" x 17 1/2" Inch
17 3/4" x 17 1/2" Inch XL6043
Vanity unit wall-mounted 2 drawers, upper drawer including
cut-out for siphon and siphon cover, for Vero # 045450, 17 3/4"
x 17 1/2" Inch
17 3/4" x 17 1/2" Inch XL6343
All drawings contain the necessary measurements which are subject to standard tolerances. They are stated in inch & mm and are nonbinding. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished ceramic piece.
Vero Furniture washbasin Ÿ # 0454500000 / 0454500030
|< 19 5/8" Inch >|
