Toilet close-coupledToilet close-coupled DimensionDimension WeightWeight Order numberOrder number
(without tank), washdown model, hardware included, cUPC
listed
ColorsColors
00 White 08 Black
VariantVariant
© 1.6/0.8 gpf, outlet for vario connector set, for horizontal and
vertical outlet, length adjustable from 2 3/4" - 6 3/4", and vario
connecting bend, vertical outlet from 6 1/4" - 7 7/8"
14 5/8" x 24 3/4 Inch 71 lb 211609..92
Sanitary ceramics with the special WonderGliss surface finish will remain clean and attractive-looking for a long
time to come.
When ordering WonderGliss please add a "1" as eleventh digit to the model number.
Vario connecting bend for vertical outlet 1.5 lb 899025
Vario connector set incl. offset Ø 4 3/8" Inch 3.3 lb 001422
Suitable productsSuitable products
Toilet seat and cover removable, hinges stainless steel, with
slow close,
006769
Tank with dual flush mechanism, Chrome, 1.6/0.8 gpf, cUPC
listed, for bottom left supply, 15" x 6 1/4" Inch
15" x 6 1/4" Inch 090910
All drawings contain the necessary measurements which are subject to standard tolerances. They are stated in inch & mm and are nonbinding. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished ceramic piece.

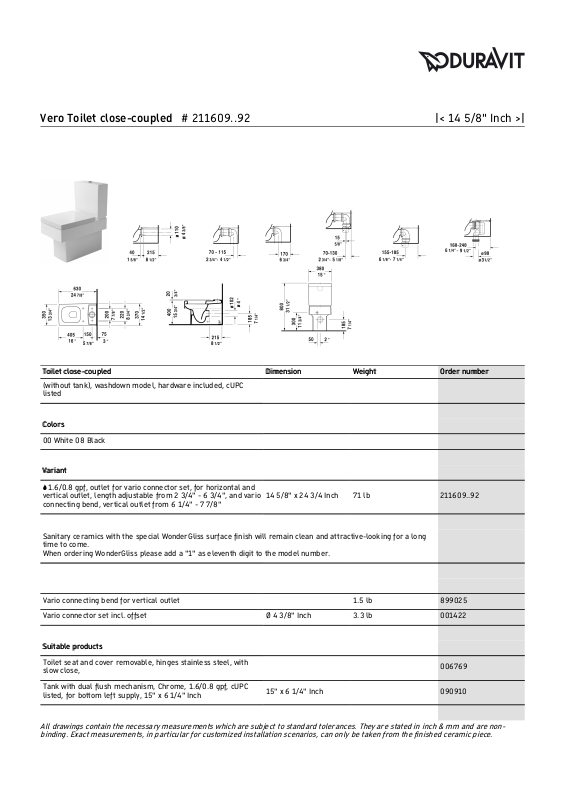

Vero Toilet close-coupled # 211609..92 |< 14 5/8" Inch >|
