Page 1
Two-Piece toiletTwo-Piece toilet DimensionDimension WeightWeight Order numberOrder number
(without tank), syphonic, 12" rough-in, vertical outlet, cUPC
listed
ColorsColors
00 White 20 HygieneGlaze (an antibacterial ceramic glaze that
provides almost indefinite effectiveness)
VariantVariant
© 1.32/0.92 gpf
14 1/8" x 27 1/2" Inch 92 lb 216001..00
© 1.28 gpf
14 1/8" x 27 1/2" Inch 92 lb 216001..85
Sanitary ceramics with the special WonderGliss surface finish will remain clean and attractive-looking for a long
time to come.
When ordering WonderGliss please add a "1" as eleventh digit to the model number.
Mounting set for One-Piece and Two-Piece toilets, outlet 3/8" male thread, wall connection 1/2" - female thread, 1/2'', North
American version
17 3/4" Inch 1.1 lb 001417
Suitable productsSuitable products
Toilet seat and cover removable, elongated, hinges stainless
steel, without slow close,
006051
Toilet seat and cover removable, elongated, hinges stainless
steel, with slow close,
006059
Tank for bottom left supply, cUPC listed, 15 3/8" x 6 3/4" Inch 15 3/8" x 6 3/4" Inch 093520
All drawings contain the necessary measurements which are subject to standard tolerances. They are stated in inch & mm and are non-

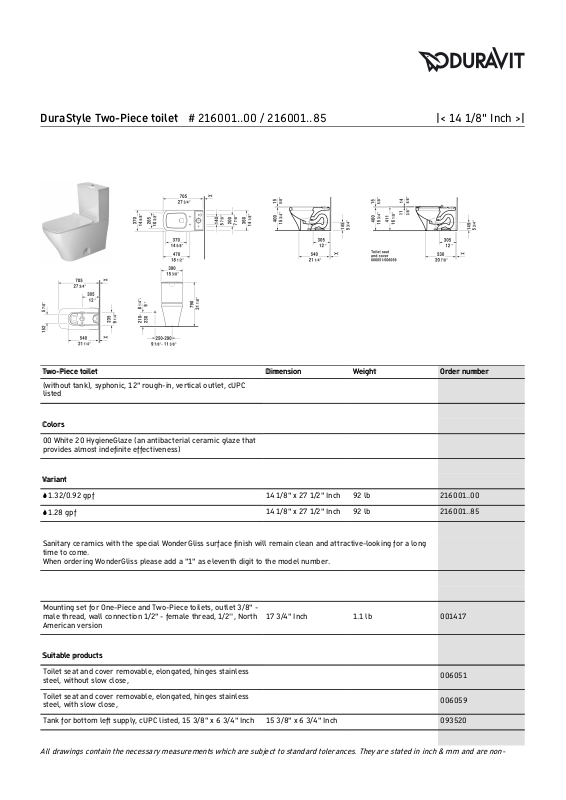

DuraStyle Two-Piece toilet # 216001..00 / 216001..85 |< 14 1/8" Inch >|
Page 2
binding. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished ceramic piece.
DuraStyle Two-Piece toilet # 216001..00 / 216001..85 |< 14 1/8" Inch >|
