Page 1

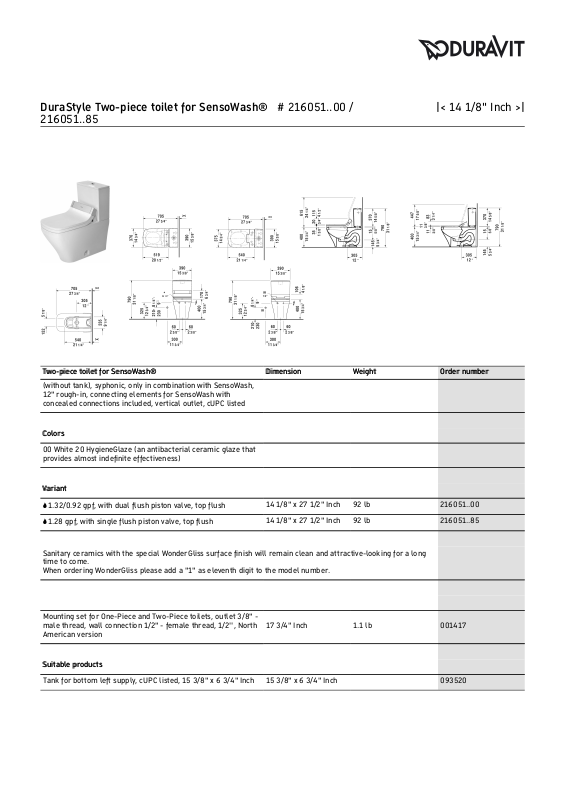

Two-piece toilet for SensoWash®Two-piece toilet for SensoWash® DimensionDimension WeightWeight Order numberOrder number
(without tank), syphonic, only in combination with SensoWash,
12" rough-in, connecting elements for SensoWash with
concealed connections included, vertical outlet, cUPC listed
ColorsColors
00 White 20 HygieneGlaze (an antibacterial ceramic glaze that
provides almost indefinite effectiveness)
VariantVariant
© 1.32/0.92 gpf, with dual flush piston valve, top flush
14 1/8" x 27 1/2" Inch 92 lb 216051..00
© 1.28 gpf, with single flush piston valve, top flush
14 1/8" x 27 1/2" Inch 92 lb 216051..85
Sanitary ceramics with the special WonderGliss surface finish will remain clean and attractive-looking for a long
time to come.
When ordering WonderGliss please add a "1" as eleventh digit to the model number.
Mounting set for One-Piece and Two-Piece toilets, outlet 3/8" male thread, wall connection 1/2" - female thread, 1/2'', North
American version
17 3/4" Inch 1.1 lb 001417
Suitable productsSuitable products
Tank for bottom left supply, cUPC listed, 15 3/8" x 6 3/4" Inch 15 3/8" x 6 3/4" Inch 093520
DuraStyle Two-piece toilet for SensoWash® # 216051..00 /
216051..85
|< 14 1/8" Inch >|
Page 2
SensoWash Starck C shower-toilet seat for DuraStyle* with
concealed connections, remote control included, power
actuated lid and seat, rear-, front and oscillating wash,
individual adjustment of water-, air- and seat surface
temperature as well as nozzle position and jet strength, selfcleaning wand, 2 individually programmable user profiles, night
light, Quick release: easy seat unit removal and attachment, on
/ off-button, 14 3/4" x 20 1/2" Inch
14 3/4" x 20 1/2" Inch 610200
SensoWash Slim shower-toilet seat for DuraStyle* with
concealed connections, remote control included, self-cleaning
wand, locking function via remote control, rear-, front and
oscillating wash, with slow close, night light, seat and lid easily
removable with one hand, automatic drainage in periods of
prolonged disuse, on / off-button, 14 3/4" x 21 1/4" Inch
14 3/4" x 21 1/4" Inch 611200
All drawings contain the necessary measurements which are subject to standard tolerances. They are stated in inch & mm and are nonbinding. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished ceramic piece.
DuraStyle Two-piece toilet for SensoWash® # 216051..00 /
216051..85
|< 14 1/8" Inch >|
