Toilet close-coupled for SensoWash®Toilet close-coupled for SensoWash® DimensionDimension WeightWeight Order numberOrder number
(without tank), only in combination with SensoWash, washdown
model, outlet for vario connector set, for horizontal and vertical
outlet, length adjustable from 2 3/4" - 6 3/4", and vario
connecting bend, vertical outlet from 6 3/4" - 8 5/8",
connecting elements for SensoWash with concealed
connections included, hardware included, cUPC listed
ColorsColors
00 White 20 HygieneGlaze (an antibacterial ceramic glaze that
provides almost indefinite effectiveness)
VariantVariant
© 1.6/0.8 gpf
14 5/8" x 27 1/2" Inch 91.1 lb 215659..92
Sanitary ceramics with the special WonderGliss surface finish will remain clean and attractive-looking for a long
time to come.
When ordering WonderGliss please add a "1" as eleventh digit to the model number.
Vario connecting bend for vertical outlet 1.5 lb 899025
Vario connector set incl. offset Ø 4 3/8" Inch 3.3 lb 001422
Suitable productsSuitable products
DuraStyle Toilet close-coupled for SensoWash® # 215659..92 |< 14 5/8" Inch >|
Page 2
Tank with dual flush mechanism, Chrome, for bottom left
supply, cUPC listed, 15 3/8" x 6 3/4" Inch
15 3/8" x 6 3/4" Inch 093510
SensoWash Starck C shower-toilet seat for DuraStyle* with
concealed connections, remote control included, power
actuated lid and seat, rear-, front and oscillating wash,
individual adjustment of water-, air- and seat surface
temperature as well as nozzle position and jet strength, selfcleaning wand, 2 individually programmable user profiles, night
light, Quick release: easy seat unit removal and attachment, on
/ off-button, 14 3/4" x 20 1/2" Inch
14 3/4" x 20 1/2" Inch 610200
SensoWash Slim shower-toilet seat for DuraStyle* with
concealed connections, remote control included, self-cleaning
wand, locking function via remote control, rear-, front and
oscillating wash, with slow close, night light, seat and lid easily
removable with one hand, automatic drainage in periods of
prolonged disuse, on / off-button, 14 3/4" x 21 1/4" Inch
14 3/4" x 21 1/4" Inch 611200

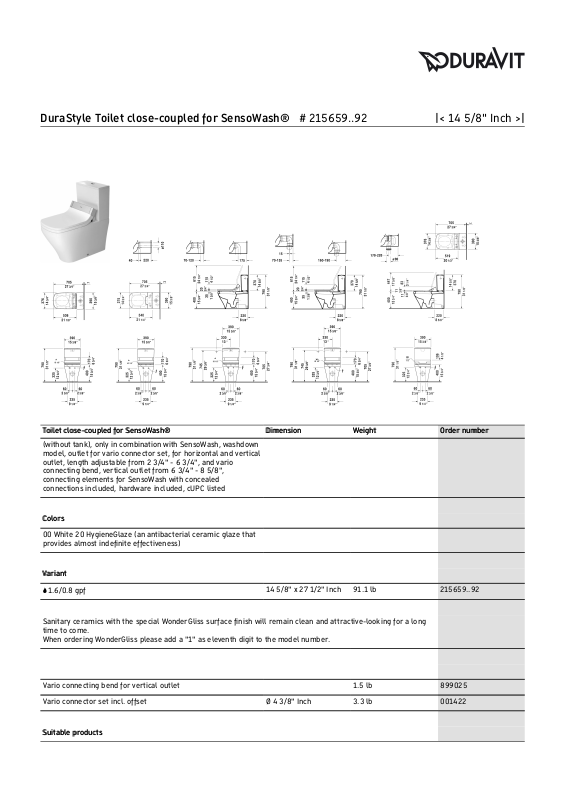

All drawings contain the necessary measurements which are subject to standard tolerances. They are stated in inch & mm and are nonbinding. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished ceramic piece.
