Toilet close-coupled Duravit Rimless®Toilet close-coupled Duravit Rimless® DimensionDimension WeightWeight Order numberOrder number
(without tank), rimless, washdown model, hardware included,
cUPC listed
ColorsColors
00 White 20 HygieneGlaze (an antibacterial ceramic glaze that
provides almost indefinite effectiveness)
VariantVariant
© 1.6/0.8 gpf, outlet for vario connector set, for horizontal and
vertical outlet, length adjustable from 2 3/4" - 6 3/4", and vario
connecting bend, vertical outlet from 6 1/4" - 7 7/8"
15" x 25 5/8" Inch 82.7 lb 216709..92
Sanitary ceramics with the special WonderGliss surface finish will remain clean and attractive-looking for a long
time to come.
When ordering WonderGliss please add a "1" as eleventh digit to the model number.
Vario connecting bend for vertical outlet 1.5 lb 899025
Vario connector set incl. offset Ø 4 3/8" Inch 3.3 lb 001422
Suitable productsSuitable products
Tank with dual flush mechanism, Chrome, cUPC listed, for
bottom left supply, 16 1/8" x 6 3/4" Inch
16 1/8" x 6 3/4" Inch 093710
Toilet seat and cover hinges stainless steel, without slow close, 002041
Toilet seat and cover hinges stainless steel, removable, with
slow close,
002049
All drawings contain the necessary measurements which are subject to standard tolerances. They are stated in inch & mm and are non-

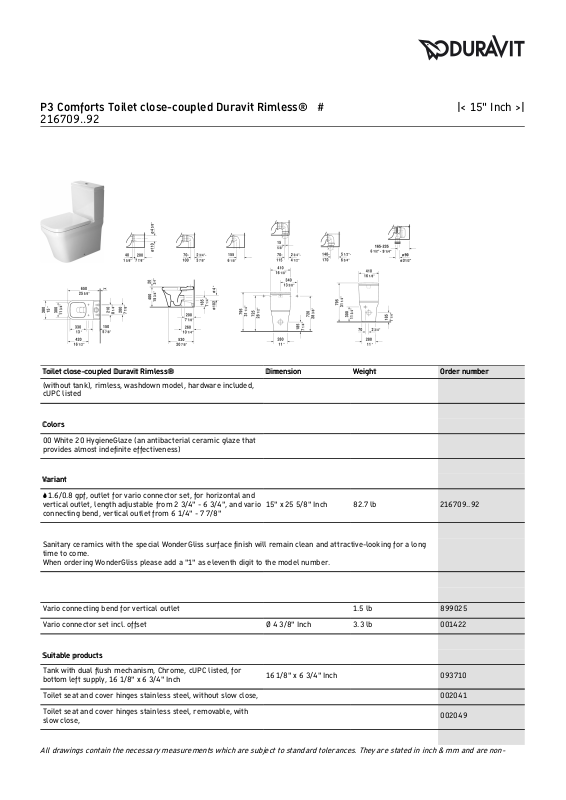

P3 Comforts Toilet close-coupled Duravit Rimless® #
216709..92
|< 15" Inch >|
Page 2
binding. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished ceramic piece.
P3 Comforts Toilet close-coupled Duravit Rimless® #
216709..92
|< 15" Inch >|
