Toilet wall-mounted Duravit Rimless®Toilet wall-mounted Duravit Rimless® DimensionDimension WeightWeight Order numberOrder number
rimless, washdown model, Durafix included, cUPC listed
ColorsColors
00 White 20 HygieneGlaze (an antibacterial ceramic glaze that
provides almost indefinite effectiveness)
VariantVariant
© 1.6/0.8 gpf
14 3/8" x 21 1/4" Inch 59.1 lb 222209..92
InfoboxInfobox
Durafix for concealed fixation is included, In-wall tank & carrier and actuator plate required for installation / Refer
to page XXX
Sanitary ceramics with the special WonderGliss surface finish will remain clean and attractive-looking for a long
time to come.
When ordering WonderGliss please add a "1" as eleventh digit to the model number.
Sigma 01 flush plate, dual flush for toilets, White 9 5/8" x 6 1/2" Inch 115770
Geberit in-wall tank and carrier for toilets, width 19 3/4", depth
5 1/2" height (adjustable) 43" - 47"
19 3/4" x 5 1/2" Inch 40.8 lb 111335
Noise reduction gasket for wall-mounted toilet 0.7 lb 005064
Suitable productsSuitable products
Toilet seat and cover removable, hinges stainless steel, without
slow close,
006451
Toilet seat and cover removable, hinges stainless steel, with
slow close,
006459
All drawings contain the necessary measurements which are subject to standard tolerances. They are stated in inch & mm and are nonbinding. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished ceramic piece.

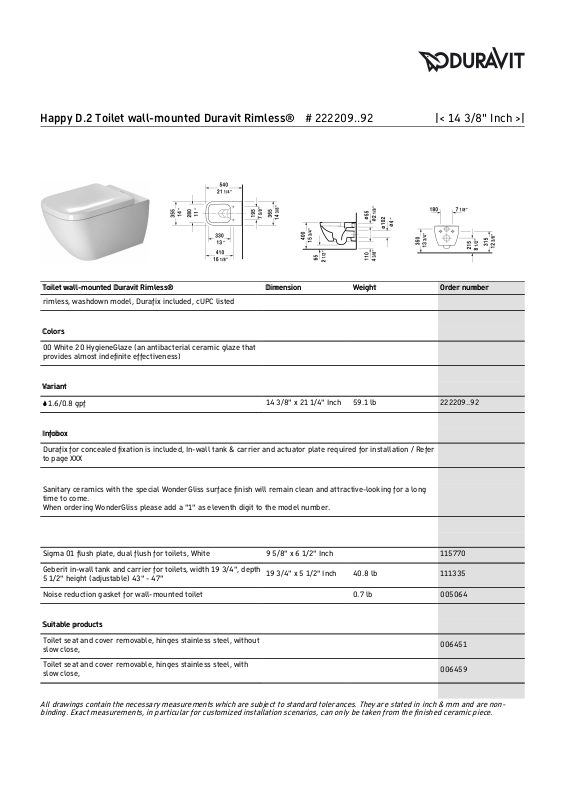

Happy D.2 Toilet wall-mounted Duravit Rimless® # 222209..92 |< 14 3/8" Inch >|
