Page 1
Two-piece toilet for SensoWash®Two-piece toilet for SensoWash® DimensionDimension WeightWeight Order numberOrder number
(without tank), syphonic, 12" rough-in, vertical outlet, only in
combination with SensoWash, connecting elements for
SensoWash with concealed connections included, cUPC listed
ColorsColors
00 White 20 HygieneGlaze (an antibacterial ceramic glaze that
provides almost indefinite effectiveness)
VariantVariant
© 1.32/0.92 gpf
14 1/8" x 28" Inch 101.4 lb 217151..00
© 1.28 gpf
14 1/8" x 28" Inch 101.4 lb 217151..85
Mounting set for One-Piece and Two-Piece toilets, outlet 3/8" male thread, wall connection 1/2" - female thread, 1/2'', North
American version
17 3/4" Inch 1.1 lb 001417
Suitable productsSuitable products
Tank for bottom left supply, 15 3/8" x 7 1/8" Inch 15 3/8" x 7 1/8" Inch 093820
SensoWash Slim shower-toilet seat for ME by Starck, Starck 2,
Starck 3 and Darling New* with concealed connections, remote
control included, locking function via remote control, rear-,
front and oscillating wash, self-cleaning wand, with slow close,
night light, seat and lid easily removable with one hand,
automatic drainage in periods of prolonged disuse, on / offbutton, 14 3/4" x 21 1/4" Inch
14 3/4" x 21 1/4" Inch 611000
All drawings contain the necessary measurements which are subject to standard tolerances. They are stated in inch & mm and are nonbinding. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished ceramic piece.

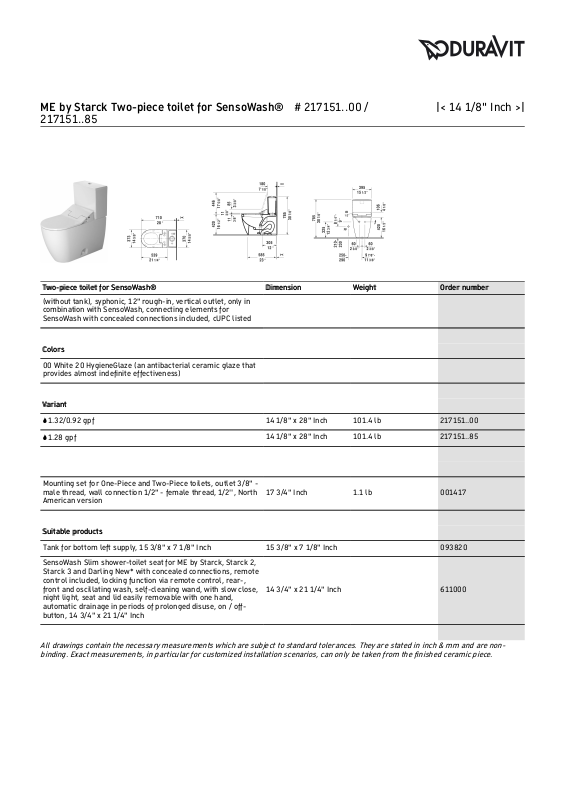

ME by Starck Two-piece toilet for SensoWash® # 217151..00 /
217151..85
|< 14 1/8" Inch >|
