Page 1
Toilet floorstandingToilet floorstanding DimensionDimension WeightWeight Order numberOrder number
back-to-wall, washdown model, hardware included, horizontal
outlet, cUPC listed
ColorsColors
00 White 20 HygieneGlaze (an antibacterial ceramic glaze that
provides almost indefinite effectiveness)
VariantVariant
© 1.6/0.8 gpf
14 5/8" x 23 5/8" Inch 63.9 lb 216909..92
InfoboxInfobox
In-wall tank and actuator plate are required for installation / Refer to page XXX
Sanitary ceramics with the special WonderGliss surface finish will remain clean and attractive-looking for a long
time to come.
When ordering WonderGliss please add a "1" as eleventh digit to the model number.
Sigma 01 flush plate, dual flush for toilets, White 9 5/8" x 6 1/2" Inch 115770
Vario connector set incl. offset Ø 4 3/8" Inch 3.3 lb 001422
Suitable productsSuitable products
Toilet seat and cover hinges stainless steel, without slow close, 002001
Toilet seat and cover hinges stainless steel, removable, with
slow close,
002009

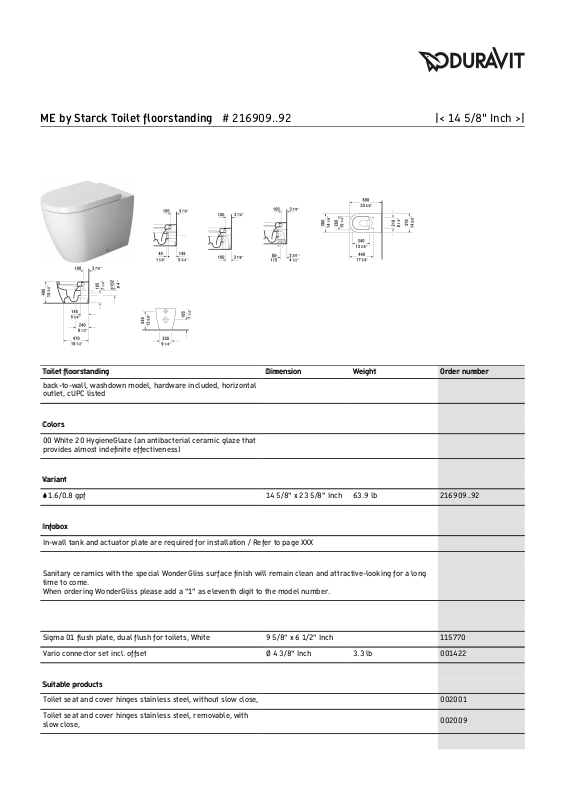

ME by Starck Toilet floorstanding # 216909..92 |< 14 5/8" Inch >|
Page 2
All drawings contain the necessary measurements which are subject to standard tolerances. They are stated in inch & mm and are nonbinding. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished ceramic piece.
ME by Starck Toilet floorstanding # 216909..92 |< 14 5/8" Inch >|
