Page 1
One-Piece toiletOne-Piece toilet DimensionDimension WeightWeight Order numberOrder number
suitable for SensoWash Starck, syphonic, 12" rough-in, with
single flush piston valve, top flush, vertical outlet, cUPC listed,
1.28 gpf
ColorsColors
00 White
VariantVariant
©
14 3/4" x 28 1/8" Inch 125.7 lb 2133010005
InfoboxInfobox
For suitable SensoWash® shower-toilet seats, please see matrix on page xxx
Sanitary ceramics with the special WonderGliss surface finish will remain clean and attractive-looking for a long
time to come.
When ordering WonderGliss please add a "1" as eleventh digit to the model number.
Mounting set for One-Piece and Two-Piece toilets, outlet 3/8" male thread, wall connection 1/2" - female thread, 1/2'', North
American version
15" Inch 1.1 lb 001431

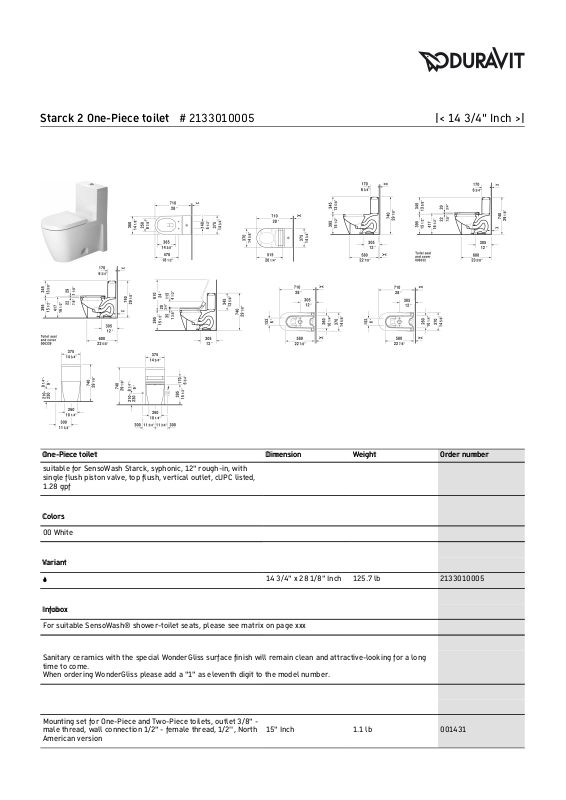

Starck 2 One-Piece toilet # 2133010005 |< 14 3/4" Inch >|
Page 2
Suitable productsSuitable products
SensoWash Starck shower-toilet seat for Starck 2, Starck 3 and
Darling New* remote control included, power actuated lid and
seat, rear-, front and oscillating wash, individual adjustment of
water-, air- and seat surface temperature as well as nozzle
position and jet strength, self-cleaning wand, 2 individually
programmable user profiles, night light, Quick release: easy
seat unit removal and attachment, on / off-button, 14 5/8" x 20
1/4" Inch
14 5/8" x 20 1/4" Inch 610000
Toilet seat and cover elongated, hinges stainless steel, without
slow close,
006332
Toilet seat and cover elongated, hinges stainless steel,
removable, with slow close,
006339
All drawings contain the necessary measurements which are subject to standard tolerances. They are stated in inch & mm and are nonbinding. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished ceramic piece.
Starck 2 One-Piece toilet # 2133010005 |< 14 3/4" Inch >|
