Page 1
One-piece toilet for SensoWash®One-piece toilet for SensoWash® DimensionDimension WeightWeight Order numberOrder number
only in combination with SensoWash, syphonic, 12" rough-in,
connecting elements for SensoWash with concealed
connections included, vertical outlet, cUPC listed
ColorsColors
00 White 20 HygieneGlaze (an antibacterial ceramic glaze that
provides almost indefinite effectiveness)
VariantVariant
© 1.32/0.92 gpf, with dual flush piston valve, top flush
14 5/8" x 28 3/8" Inch 121.3 lb 215751..05
© 1.28 gpf, with single flush piston valve, top flush
14 5/8" x 28 3/8" Inch 121.3 lb 215751..85
Sanitary ceramics with the special WonderGliss surface finish will remain clean and attractive-looking for a long
time to come.
When ordering WonderGliss please add a "1" as eleventh digit to the model number.
Mounting set for One-Piece and Two-Piece toilets, outlet 3/8" male thread, wall connection 1/2" - female thread, 1/2'', North
American version
17 3/4" Inch 1.1 lb 001417
Suitable productsSuitable products
SensoWash Starck C shower-toilet seat for DuraStyle* with
concealed connections, remote control included, power
actuated lid and seat, rear-, front and oscillating wash,
individual adjustment of water-, air- and seat surface
temperature as well as nozzle position and jet strength, selfcleaning wand, 2 individually programmable user profiles, night
light, Quick release: easy seat unit removal and attachment, on
/ off-button, 14 3/4" x 20 1/2" Inch
14 3/4" x 20 1/2" Inch 610200

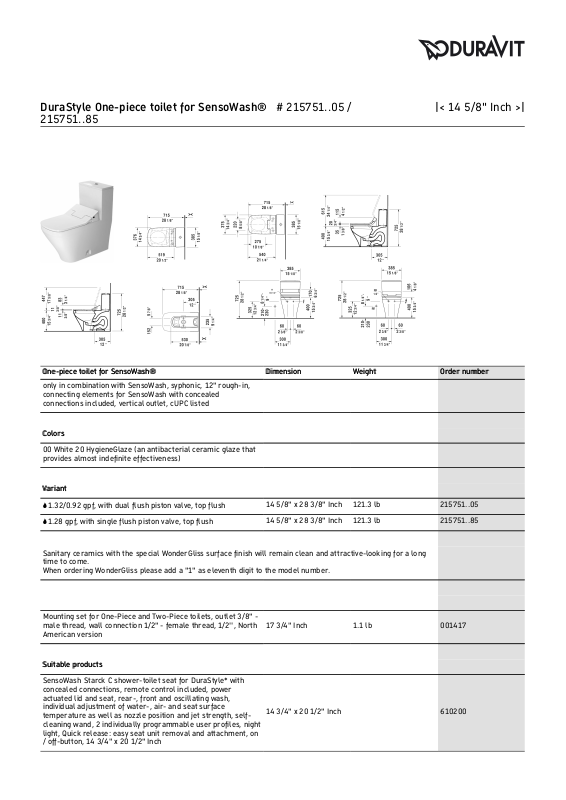

DuraStyle One-piece toilet for SensoWash® # 215751..05 /
215751..85
|< 14 5/8" Inch >|
Page 2
SensoWash Slim shower-toilet seat for DuraStyle* with
concealed connections, remote control included, self-cleaning
wand, locking function via remote control, rear-, front and
oscillating wash, with slow close, night light, seat and lid easily
removable with one hand, automatic drainage in periods of
prolonged disuse, on / off-button, 14 3/4" x 21 1/4" Inch
14 3/4" x 21 1/4" Inch 611200
All drawings contain the necessary measurements which are subject to standard tolerances. They are stated in inch & mm and are nonbinding. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished ceramic piece.
DuraStyle One-piece toilet for SensoWash® # 215751..05 /
215751..85
|< 14 5/8" Inch >|
