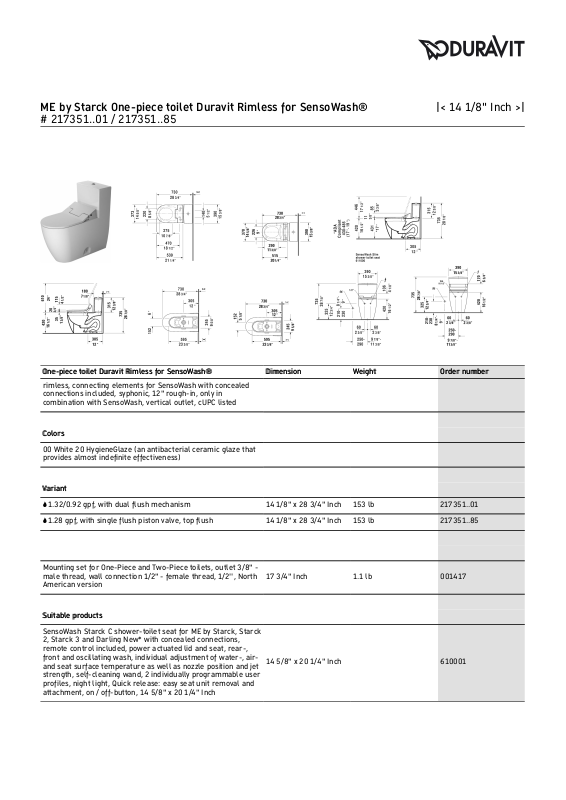

One-piece toilet Duravit Rimless for SensoWash®One-piece toilet Duravit Rimless for SensoWash® DimensionDimension WeightWeight Order numberOrder number
rimless, connecting elements for SensoWash with concealed
connections included, syphonic, 12" rough-in, only in
combination with SensoWash, vertical outlet, cUPC listed
ColorsColors
00 White 20 HygieneGlaze (an antibacterial ceramic glaze that
provides almost indefinite effectiveness)
VariantVariant
© 1.32/0.92 gpf, with dual flush mechanism
14 1/8" x 28 3/4" Inch 153 lb 217351..01
© 1.28 gpf, with single flush piston valve, top flush
14 1/8" x 28 3/4" Inch 153 lb 217351..85
Mounting set for One-Piece and Two-Piece toilets, outlet 3/8" male thread, wall connection 1/2" - female thread, 1/2'', North
American version
17 3/4" Inch 1.1 lb 001417
Suitable productsSuitable products
SensoWash Starck C shower-toilet seat for ME by Starck, Starck
2, Starck 3 and Darling New* with concealed connections,
remote control included, power actuated lid and seat, rear-,
front and oscillating wash, individual adjustment of water-, airand seat surface temperature as well as nozzle position and jet
strength, self-cleaning wand, 2 individually programmable user
profiles, night light, Quick release: easy seat unit removal and
attachment, on / off-button, 14 5/8" x 20 1/4" Inch
14 5/8" x 20 1/4" Inch 610001
ME by Starck One-piece toilet Duravit Rimless for SensoWash®
# 217351..01 / 217351..85
|< 14 1/8" Inch >|
Page 2
SensoWash Slim shower-toilet seat for ME by Starck, Starck 2,
Starck 3 and Darling New* with concealed connections, remote
control included, locking function via remote control, rear-,
front and oscillating wash, self-cleaning wand, with slow close,
night light, seat and lid easily removable with one hand,
automatic drainage in periods of prolonged disuse, on / offbutton, 14 3/4" x 21 1/4" Inch
14 3/4" x 21 1/4" Inch 611000
All drawings contain the necessary measurements which are subject to standard tolerances. They are stated in inch & mm and are nonbinding. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished ceramic piece.
ME by Starck One-piece toilet Duravit Rimless for SensoWash®
# 217351..01 / 217351..85
|< 14 1/8" Inch >|
