Page 1
One-Piece toilet Duravit Rimless®One-Piece toilet Duravit Rimless® DimensionDimension WeightWeight Order numberOrder number
rimless, syphonic, 12" rough-in, suitable for SensoWash Starck,
vertical outlet, cUPC® listed*
ColorsColors
00 White 20 HygieneGlaze (an antibacterial ceramic glaze that
provides almost indefinite effectiveness)
VariantVariant
© 1.32/0.92 gpf, with dual flush piston valve, top flush, ADA
height
14 1/8" x 28 3/4" Inch 141 lb 217301..01
© 1.28 gpf, with single flush piston valve, top flush, ADA height 14 1/8" x 28 3/4" Inch 141 lb 217301..85
© 1.32/0.92 gpf, with dual flush piston valve, top flush, ADA
height
14 1/8" x 28 3/4" Inch 141 lb 217301..01
© 1.28 gpf, with single flush piston valve, top flush, ADA height 14 1/8" x 28 3/4" Inch 141 lb 217301..85
InfoboxInfobox
For suitable SensoWash® shower-toilet seats, please see matrix on page xxx, * Complies with following standards:
ASME A112.19.2/CSA B45.1
Sanitary ceramics with the special WonderGliss surface finish will remain clean and attractive-looking for a long
time to come.
When ordering WonderGliss please add a "1" as eleventh digit to the model number.
Mounting set for One-Piece and Two-Piece toilets, outlet 3/8" male thread, wall connection 1/2" - female thread, 1/2'', North
American version
17 3/4" Inch 1.1 lb 001417

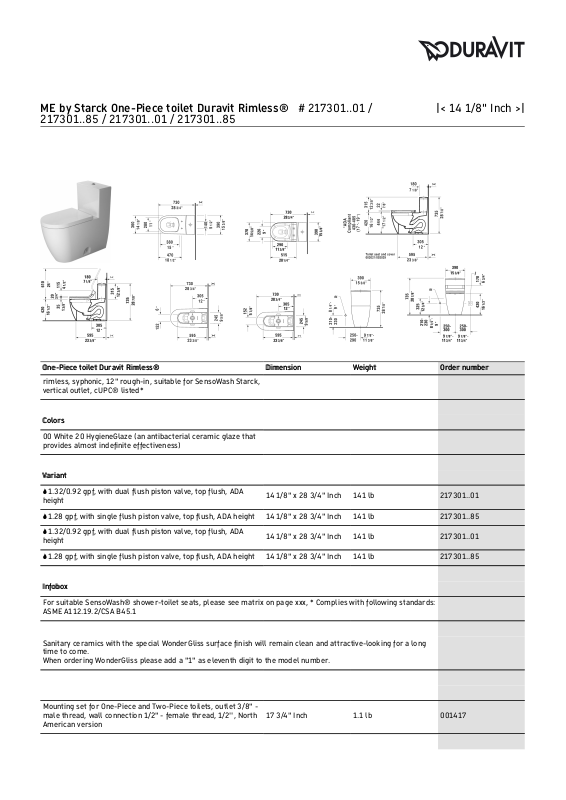

ME by Starck One-Piece toilet Duravit Rimless® # 217301..01 /
217301..85 / 217301..01 / 217301..85
|< 14 1/8" Inch >|
Page 2
Suitable productsSuitable products
SensoWash® Starck shower-toilet seat for Starck 2, Starck 3
and Darling New* Rear-, Lady- and Comfortwash, individual
adjustment of water-, air- and seat surface temperature as well
as nozzle position and jet strength, power actuated lid and seat,
night light, 2 individually programmable user profiles, remote
control included, self-cleaning wand, on / off-button, Quick
release: easy seat unit removal and attachment, 14 5/8" x 20
1/4" Inch
14 5/8" x 20 1/4" Inch 610000
Toilet seat and cover elongated, hinges stainless steel, without
slow close,
002021
Toilet seat and cover removable, elongated, hinges stainless
steel, with slow close,
002029
All drawings contain the necessary measurements which are subject to standard tolerances. They are stated in inch & mm and are nonbinding. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished ceramic piece.
ME by Starck One-Piece toilet Duravit Rimless® # 217301..01 /
217301..85 / 217301..01 / 217301..85
|< 14 1/8" Inch >|
