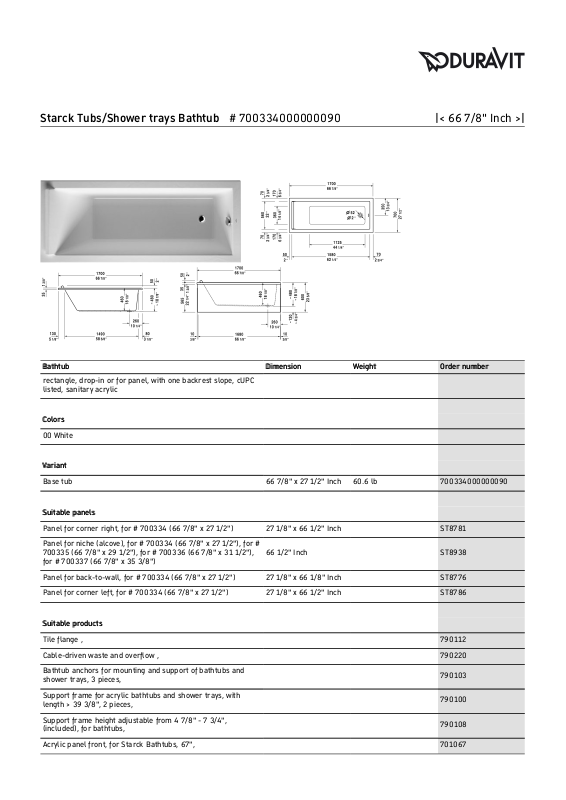

BathtubBathtub DimensionDimension WeightWeight Order numberOrder number
rectangle, drop-in or for panel, with one backrest slope, cUPC
listed, sanitary acrylic
ColorsColors
00 White
VariantVariant
Base tub 66 7/8" x 27 1/2" Inch 60.6 lb 700334000000090
Suitable panelsSuitable panels
Panel for corner right, for # 700334 (66 7/8" x 27 1/2") 27 1/8" x 66 1/2" Inch ST8781
Panel for niche (alcove), for # 700334 (66 7/8" x 27 1/2"), for #
700335 (66 7/8" x 29 1/2"), for # 700336 (66 7/8" x 31 1/2"),
for # 700337 (66 7/8" x 35 3/8")
66 1/2" Inch ST8938
Panel for back-to-wall, for # 700334 (66 7/8" x 27 1/2") 27 1/8" x 66 1/8" Inch ST8776
Panel for corner left, for # 700334 (66 7/8" x 27 1/2") 27 1/8" x 66 1/2" Inch ST8786
Suitable productsSuitable products
Tile flange , 790112
Cable-driven waste and overflow , 790220
Bathtub anchors for mounting and support of bathtubs and
shower trays, 3 pieces,
790103
Support frame for acrylic bathtubs and shower trays, with
length > 39 3/8", 2 pieces,
790100
Support frame height adjustable from 4 7/8" - 7 3/4",
(included), for bathtubs,
790108
Acrylic panel front, for Starck Bathtubs, 67", 701067
Starck Tubs/Shower trays Bathtub # 700334000000090 |< 66 7/8" Inch >|
Page 2
Acrylic panel sidewise, for Starck Bathtubs, 27 1/2", 701071
Stereo transducers (speakers) for bathtubs , 791818
Headrest for Starck, material: polyurethane, White, 790010
All drawings contain the necessary measurements which are subject to standard tolerances. They are stated in inch & mm and are nonbinding. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished ceramic piece.
Starck Tubs/Shower trays Bathtub # 700334000000090 |< 66 7/8" Inch >|
