OPERATOR’S INSTRUCTION
MANUAL
DIGITAL MULTIMETER
Model: D03046 and D03047
Page 2
- 2 -
Warning
To avoid possible electric shock or personal
injury, and to av oi d po ss i bl e damage to the Meter or
to the eq ui pm en t un der te st, adher e to th e followin g
rules:
Before using the Meter inspect the case. Do
not use the Meter if it is damaged or the case
(or part of t he ca se) is remo ved. Look for
cracks or missing plastic. Pay attention to
the insulation around the connectors.
Inspect the test leads for damaged insulation
or exposed metal. Check the test leads for
continuity.
Do not apply more than the r ate d voltage, as
marked on the Meter, between the terminals or
between any terminal and grounding.
The rota ry swit ch sh ould be place d in the righ t
position and no any changeover of range shall
be made during measurement is conducted to
prevent dama ge of the Meter.
When the Meter working at an effective voltage
over 60V in DC or 30V rms in AC, speci al car e
should be take n for ther e is da ng er of ele ctric
shock.
Use the proper terminals, function, and range
for your measurements.
Do not use or store the Meter in an
environment of high temperature, humidity,
explosive, inflammable and strong magnetic
field. The perf or mance of t he Meter may
deteriorate after dampened.
When using the test leads, keep your fingers
behi nd th e finger gua r d s.
Disconnect circuit power and discharge all
Page 3
- 3 -
high-voltage capacitors before testing
resis ta nce, continuity, diod es or hFE.
Replac e the bat tery as soon as the b att ery
indicator
appears. With a low battery,
the Meter might produce false readings that
can lead to electric shock an d pers o nal injury.
Remove the connection between the testing
leads and the ci rcuit being tested, and turn the
Meter power off before opening the Meter
case.
When servicing the Meter, use only the same
model number or i de nti c al electrical
specifications replacement parts.
The internal circuit of the Meter shall not be
altered at will to avoid damage of the Meter
and any accident.
Soft cl ot h an d mild detergent sh o ul d be use d
to clean the sur fac e of th e Meter when
servicing. No abrasive and solvent should be
used to prevent t he sur face of the Meter fr om
corrosio n, d am ag e an d acc id ent.
The Meter is suitable for indoor use.
Turn the Meter power off when it is not in use
and take out the battery when not using for a
long tim e. Constantly check the battery as it
may leak wh en it ha s been us ing for so me time,
replace the battery as soon as leaking appears.
A leaking bat tery will damage the Meter.
General Sp ecifications
Max display: LCD 3 ½ digits (1999 count) 0.5” high
Polarity: Automatic, indicated minus, assumed plus.
Measure method: double integral A/D switch
implement
Page 4
- 4 -
Sampling speed: 2 times per second
Over-load indication: “1” is displayed
Operat ing Env iro nment: 0 ℃~ 40℃, at <80% RH
Storage Environment: -10℃~50℃, at <85% RH
Power: 9V NED A 1604 or 6F22
Low battery indication: “
”
Static el ectricity: a bout 4mA
Product Siz e: 126 x 70 x 26mm
Product net weight: 108g (including battery)

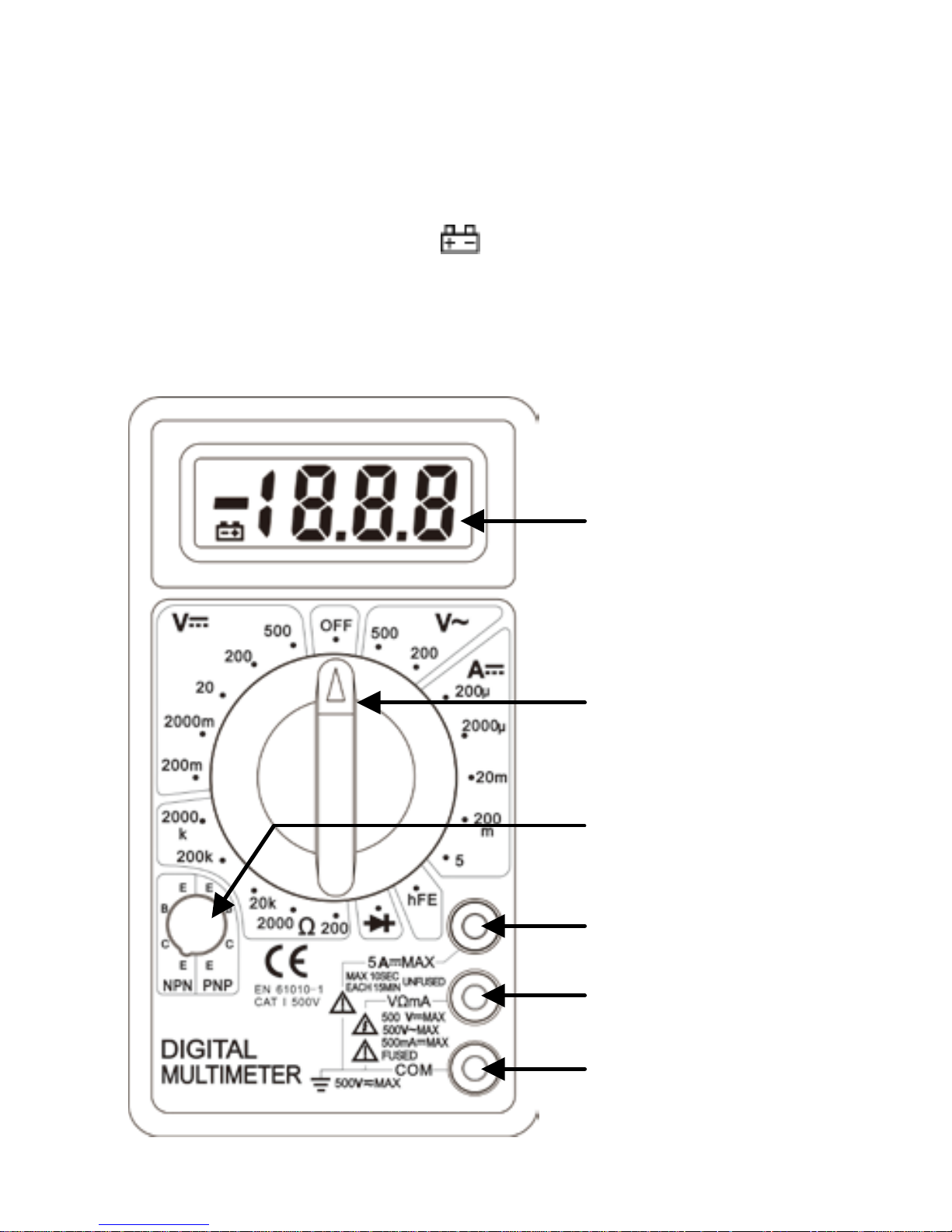

LCD
RANGE
swit
ch
10A jack
VΩmA jack
COM jack
hFE
socket
Page 5
- 5 -
Series Multimeters Function Table
Technical Specifications
Accuracies are guaranteed for 1 year, 25℃ ± 5℃
less than 80%RH
DC VOLTAGE
RANGE RESOLUTION ACCURACY
200mV 100uV ±(0.5% of rdg + 3D)
2000mV 1mV
20V 10mV
200V 100mV
500V 1V ±(1.0% of rdg + 5D)
±(0.8% of rdg + 5D)
OVERLOAD PROTECTION: 220V rms AC for
200mV range and 500V DC or 500V rms for all
ranges.
AC VO LTAGE
RANGE RESOLUTION ACCURACY
200V 100mV
500V 1V
±(2.0% of rdg +10D)
RESPONSE: Average responding, calibrated in
rm s of a sin e wave.
FREQUENCY RANGE: 45Hz ~ 450Hz
OVERLOAD PROTECTION: 500V DC or 500Vrms
for all ranges.
Page 6
- 6 -
AUDIBLE CONTINUITY
OVERLOAD PROTECTION: 15 seconds maxim um 220 V rms.
DC CURRENT
RANGE RESOLUTION ACCURACY
200uA 100nA
2000uA 1uA
20mA 10uA
200mA 100uA ±(2.0% of rdg +2D)
5A 10mA ±(2.0% of rdg +10D)
±(1.8% of rdg +2D)
OVERLOAD PROTECTION: F0.5A/250V and
F5A/250 V fuse
MEASURING VOLTAGE DROP: 200mV
RESISTANCE
RANGE RESOLUTION ACCURACY
200Ω 0.1Ω ±(1.0% of rdg +10D)
2000Ω 1Ω
20KΩ 10Ω
200KΩ 100Ω
2000KΩ 1KΩ
±(1.0% of rdg +4D)
MAXIMUM OPEN CIRCUIT VOLTAGE: 3V.
OVERLOAD PROTECTION: 15 seconds
maximum 220Vrms.
Page 7
TEMPERATURE (with K-TYPE PROBE)
RANGE RESOLUTION ACCURACY
-40℃ to
150 ℃
±(1.0% + 4)
150℃ to
1370 ℃
±(1.5% + 15)
1℃
OPERATING INSTRUCTIONS
DC & AC VOLTAGE MEASUREMENT
1. Connect red test lead to “VΩmA” jack, Black
lead to “COM” jack.
2. Set RANGE switch to desired VOLTAGE
position, if the voltage to be measured is not
known beforehand, set switch to the highest
range and reduce it until satisfactory reading is
obtained.
3. Connect test leads to device or circuit being
measured.
4. Turn on power of the device or circuit being
measured voltage value will appear on Digital
Display along with the voltage polarity.
DC CURRENT ME ASUREMENT
1. Connect red lead to “VΩmA”. and black lead to
“COM”
(for measurements between 200mA and
5A connect red lead to “5A” socket)
- 7 -
Page 8
2. Set RANGE switch to desired DCA position.
3. Open the circuit to be measured, and connect
test leads IN SERIES with the load in
with current is to measure.
4. Read current value on Digital Display.
5. Additionally, “5A” function is designed for
intermittent use only. Maximum contact time of
the test leads with the circuit is 10 seconds,
with a minimum intermission time of 15
minutes between tests.
RESISTANCE MEASUREMENT
1. Connect red lead to “VΩmA”. Connect black
lead to “COM”.
2. Set RANGE switch to desired Ω position.
3. If the resistance being measured is connec-
ted to a circuit, turn off power
and discharge all
capacitors before measurement.
4. Connect test leads to circuit being measured.
5. Read resistance value on Digital Display.
DIODE MEASUREMENT
1. Connect red lead to “VΩmA”. Connect blac
k
l
ead to “COM”.
2. Set RANGE switch to “ ” position.
3. Connect the red test lead to the anode of the
diode to be measured and black test lead to
cathode.
4. The forward voltage drop in mV will be
displayed. If the diode is reversed, figure “1”
will be shown.
- 8 -
Page 9
TRANSISTOR hFE MEASUREMENT
1. Set RANGE switch to the hFE position.
2. Determine whether the transistor is PNP of
NPN type and locate the Emitter, Base and
Collector leads. Insert the leads into the proper
holes of the hFE Socket.
3. The meter will display the approximate hFE
value at the condition of base current 10μA
and V
CE
2.8V.
AUDIBLE CONTINUI TY TEST
1. Red lead to “VΩmA”, Black lead to “COM”.
2. RANGE switch to “ ” position.
3. Connect test leads to two points of circuit to
be tested. If the resistance is lower then 30Ω
±20Ω, the buzzer will sound.
BATTERY AND FUSE REPLACEMENT
Fuse rarely need replacement and blow almost
always as a result of operator error.
If “ ” appears in display, it indicates that the
battery should be replaced.
To replace battery & Fuse (F500mA/250V for mA
terminal and F5A/250V for 5A terminal) remove
the 2 screws in the bottom of the case, simply
remove the old, and replace with a new one. Be
careful to observe polarity.
- 9 -
Page 10
- 10 -
Operator’s instruction manual
Set of test leads
Gift box
TP01 K-type thermoelectric coupl e
(DT830C & DT838 only)
9-volt bat tery, NEDA 1604 6F22 type.
Made in China
www.premierfarnell.co.uk
WARNING
READ AND UNDERSTAND THIS MANUAL
BEFORE USING THE INSTRUMENT.
INFORMATION ON WASTE DISPOSAL FOR CONSUMERS OF
ELECTRICAL & ELECTRONIC EQUIPMENT.
When this product has reached the end of its life it must be treated as
Waste Electrical & Electronics Equipment (WEEE). Any WEEE
marked products must not be mixed with general household waste, but
kept separate for the treatment, recovery and recycling of the
materials used. Contact your local authority for details of recycling
schemes in your area.
