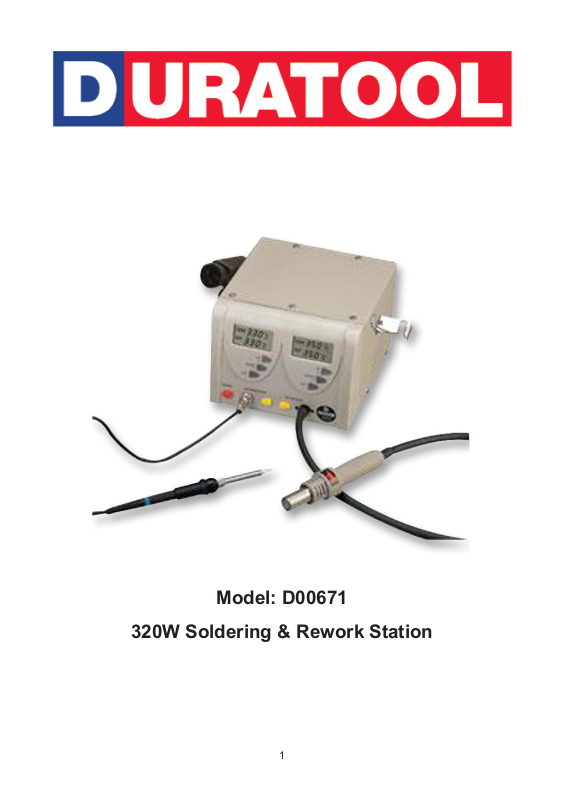

Page 1
Model: D00671

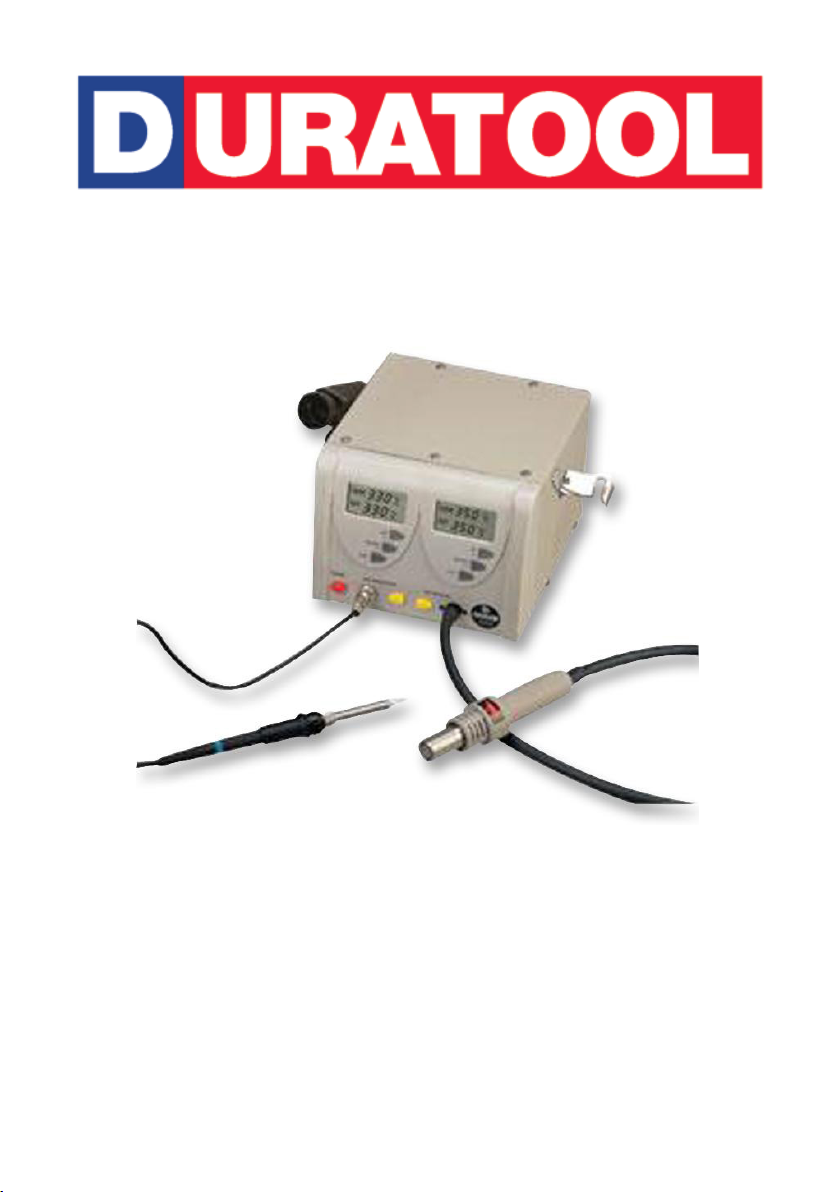

320W Soldering & Rework Station
1
Page 2
Please read these instructions carefully before use and retain for future reference.
IMPORTANT SAFETY INFORMATION
When using electrical appliances basic safety precautions should always be
followed.
• Check that the voltage indicated on the rating plate corresponds with that of the
local network before connecting the appliance to the mains power supply.
• This appliance can be used by children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
• This appliance contained no user-serviceable parts. All repairs should only be
carried out by a qualied engineer. Improper repairs may place the user at risk of
harm.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service
agent or similarly qualied persons in order to avoid a hazard.
• Do not leave the soldering station unattended, while it is powered on.
• The nozzle and accessories of this tool become extremely hot during use. Let
these parts cool down before touching or changing accessories.
• Turn off the power before connecting or disconnecting the hot air gun or iron to the
control station.
• Ensure there is sufcient space and ventilation around the appliance to allow the
escape of heat and or fumes.
• Do not use the product near ammable items.
• Turn the power off when this product is not in use.
• The soldering irons must be placed in their holders when not in use.
• Before storage, turn the power off and allow the product to cool down to room
temperature.
• Do not use this product for anything else other than that for which it is designed.
• Children should be supervised to ensure that they do not play with the appliance.
• Do not use this appliance with wet hands.
• Do not expose the soldering station to rain or moisture.
• This appliance must be earthed.

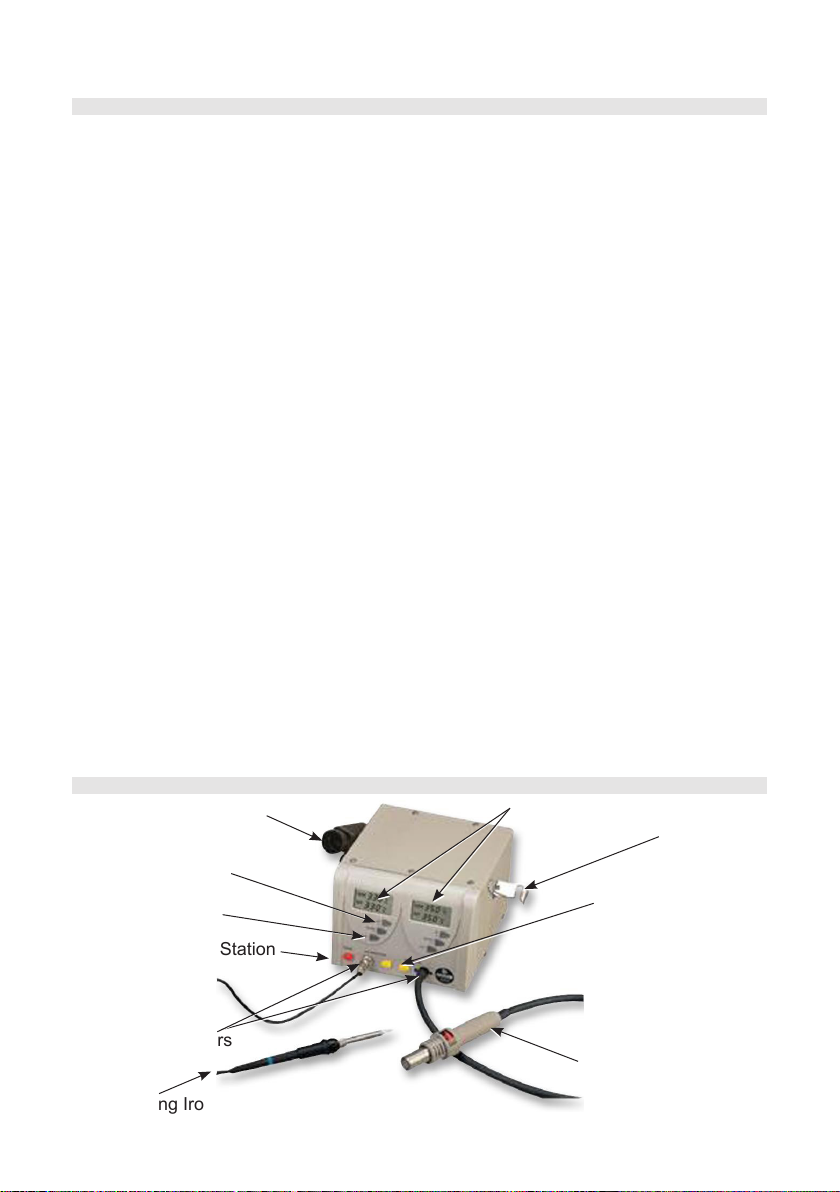

OVERVIEW
Hot Air Gun
Holder
Temperature Controls
Temperature Indicator
Iron
Holder
o
C / oF Button
Soldering Station
Gun/Iron
Connectors
Soldering Iron
Power Switches
Hot Air Gun
2
Page 3
WHAT’S INCLUDED?
• Control Station with hot air gun holder
• Soldering Iron
• Hot air gun with 4 nozzles
• Iron holder with sponge
• User Manual
APPLICATION & OPERATION
Note: The rst time you use the soldering irons, they may smoke slightly as the heating
element dries out. This is normal and should only last for a few minutes.
ONLY USE FOR ELECTRICAL WORK - Acidic solder will damage the iron tip.
• Remove the four transit screws from the underside and assemble the separate
stand then place the tools in their holders. Dampen the sponge and place it in the
tray on the holder.
• Connect the plug on the soldering iron lead to the socket below the left hand
display and tighten the locking ring nger tight.
• Connect the mains lead and plug into the mains supply and turn on the power
using the switch on the rear of the unit.
• The yellow buttons on the front panel switch the two parts of the unit on or off.
• The LCDs will illuminate when the switch is on and the display shows the
previously set temperature.
• Between use (or during breaks), always put the soldering iron and hot air gun into
their holders.
• Lower the temperature of the iron during breaks as this extends the life of the tip.
• When any soldering work is done, adjust the temperature to 270oC or switch off
the power rst, clean the tip and tin with fresh solder to protect it from oxidation.
Note: Applicable to the soldering iron only - not the hot air gun.

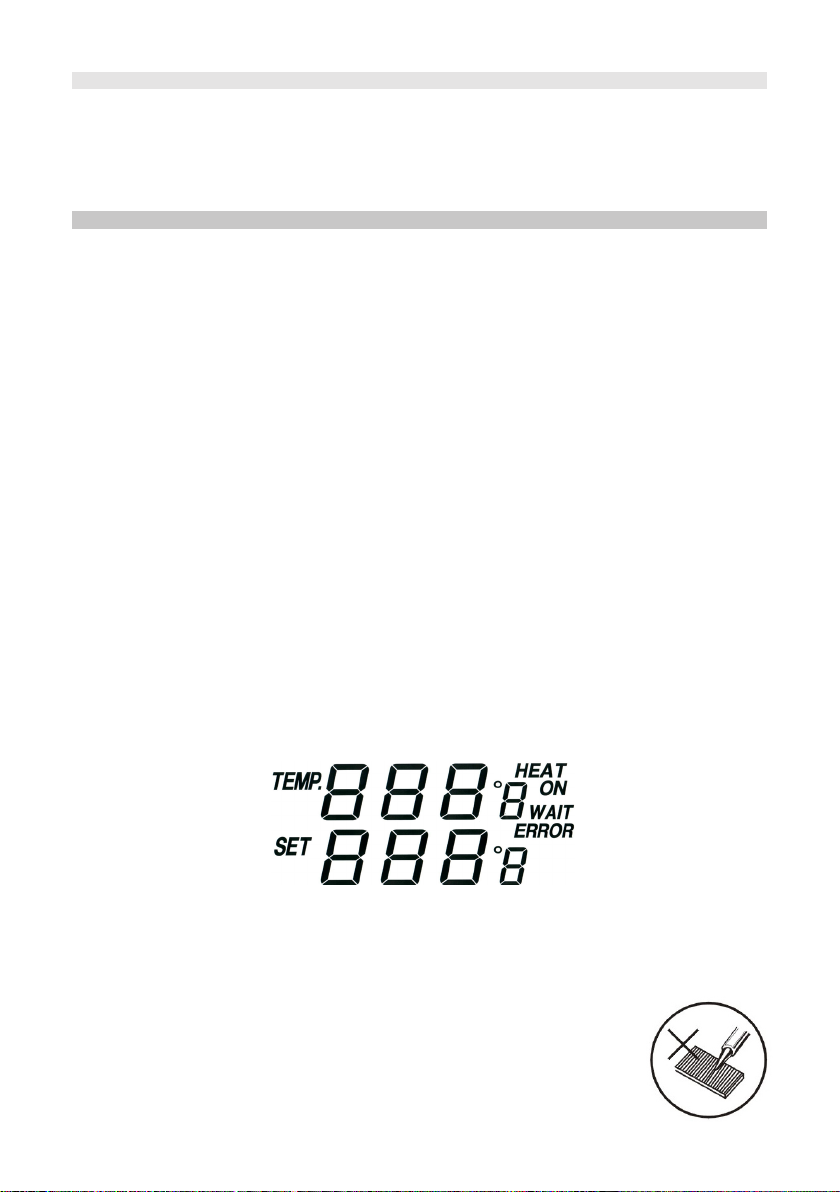

Adjusting the temperature
• Adjust the temperature for the iron or hot air gun by pressing the UP or DOWN
buttons on the relevant half of the station front panel.
• The lower gure is the required temperature, the upper gure shows the actual tip
temperature.
While the iron is heating up to the required temperature “HEAT ON” displays on
the LCD.
• If the difference between the required temperature and that of the iron tip is greater
than 10° “WAIT” displays on the LCD.
• To change from °C to °F press “oC / oF” button. The display shows °C or °F after
the temperature gure.
• Adjust the air ow using the rotary control next to the hot air gun
connection.
• Never le down the tips or attempt to clean using abrasives.
• If the tip is worn, replacement Irons are available for this station -
see our website or catalogue.
3
Page 4
TIP REPLACEMENT
• Replacing the tip should only be done when the iron is switched off and at room
temperature.
• The tip can be changed or replaced by unscrewing the knurled nut barrel.
Caution: Damage could occur if the iron is left on without the tip inserted.
• After removing the tip, blow out any remaining oxide dust that may have formed in
the tip retaining area of the barrel.
Warning: Care should be taken to avoid getting dust in your eyes.
• Replace the tip and tighten the knurled nut barrel assembly with your ngers.
• Pliers should only be used to tighten the nut if loosening occurs when the iron is
hot.
• Do not over tighten the nut as the element could be damaged.
CLEANING
• Cleaning should only be done when the power is switched off and the irons are
at room temperature. Use a damp cloth and a small amount of liquid detergent if
necessary.
• Never submerse the hot air gun, iron or control station in liquid or allow any liquid
to enter the case.
• Do not use any chemicals, abrasives or solvents that could damage the hot air
gun, interconnecting leads and pipe, soldering iron or the control station.
TROUBLESHOOTING
• “ERROR” is displayed - A loose connection - check
connection of the iron to the station.
• Tip will not reach set temperature - Defective heating element
• Solder will not wet the tip - Tip temperature is too high.
Tip is badly oxidized and requires cleaning.
SPECIFICATIONS
Input Voltage 220-240V~50Hz
Power Consumption - Hot Air Gun 320W
Power Consumption - Soldering 60W
Output Voltage 24V AC
Temperature Range 160-480°C
Weight 6.28kg
INFORMATION ON WASTE DISPOSAL FOR CONSUMERS OF ELECTRICAL &
ELECTRONIC EQUIPMENT.
When this product has reached the end of its life it must be treated as Waste
Electrical & Electronics Equipment (WEEE). Any WEEE marked products must
not be mixed with general household waste, but kept separate for the treatment,
recovery and recycling of the materials used. Contact your local authority for details
of recycling schemes in your area.
Made in China. PR2 9PP
4
Man Rev 1.0
