Page 1

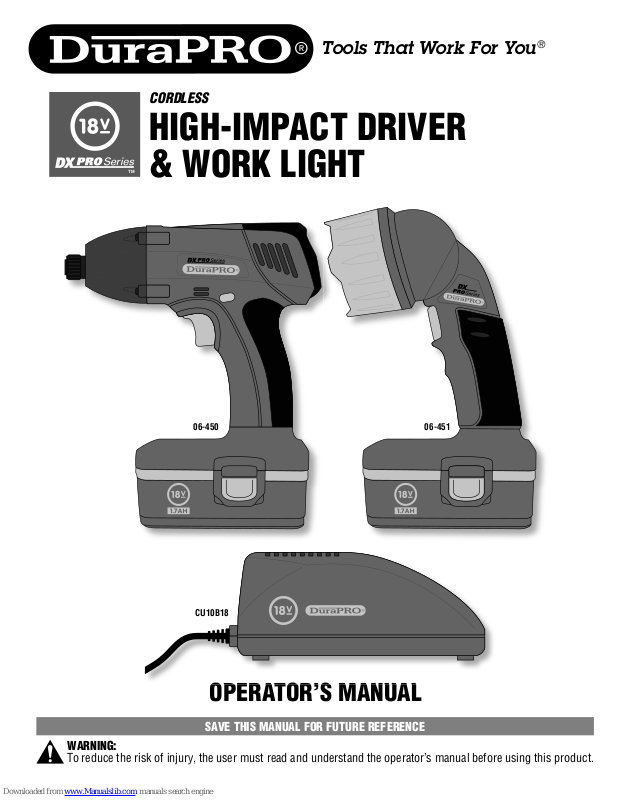

Tools That Work For You
CORDLESS
HIGH-IMPACT DRIVER
TM
& WORK LIGHT
®
06-450 06-451
CU10B18
OPERATOR’S MANUAL
SAVE THIS MANUAL FOR FUTURE REFERENCE
WARNING:
To reduce the risk of injury, the user must read and understand the operator’s manual before using this product.
Page 2
TABLE OF CONTENTS
Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
General Safety Rules. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2, 4
Specifi c Safety Rules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5, 7, 11
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8, 11
Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9, 12
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6, 10, 12
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Tools That Work For You
WARRANTY: DuraPRO
quality in mind. This product is warranted against defects
in material and workmanship for three years from the
date of purchase. This warranty does not apply to defects
or damage caused by misuse, alteration or normal wear
and tear, and is limited only to replacement of this tool.
®
products are designed with
®
WARNING: To avoid serious personal injury, do not
attempt to use this product until you read thoroughly
and understand completely the operator’s manual.
Save this operator’s manual and review frequently for
continuing safe operation and instructing others who
may use this product.
WARNING: The operation of any power tool can result in
foreign objects being thrown into your eyes, which can
result in severe eye damage. Before beginning power tool
operation, always wear safety goggles or safety glasses
with side shields and a full face shield when needed.
WARNING: Some dust created by power sanding,
sawing, grinding, drilling, and other construction
activities contains chemicals known to cause cancer,
birth defects or other reproductive harm. Some examples
of these chemicals are:
• lead from lead-based paints,
• crystalline silica from bricks and cement and other
masonry products, and
• arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how
often you do this type of work. To reduce your exposure
to these chemicals: work in a well ventilated area, and
work with approved safety equipment, such as those
dust masks that are specially designed to fi lter out
microscopic particles.
Innovative Concepts Corporation
Torrington, CT 06790 U.S.A.
DuraPRO is a registered trademark of ICC Innovative Concepts Corporation
Visit us at www.durapro.com
Recyclable 0106
SERVICE Servicing requires extreme care and knowledge and
should be performed only by a qualifi ed service technician.
For service we suggest you return the product to your nearest
AUTHORIZED SERVICE CENTER for repair. When servicing, use
only identical replacement parts.
Customer Service
860-482-0512
9a-5p M-F, EST
2
Imported by
Costco Wholesale Canada Ltd.*
415 W. Hunt Club Road
Ottawa, Ontario, Canada
K2E 1C5
1-800-774-2678 (U.S.A.)
1-800-463-3783 (Canada)MADE IN CHINA
Page 3
SYMBOLS
IMPORTANT: Some of the following symbols may be used on your tool. Please study them and learn their meaning. Proper interpretation of
these symbols will allow you to operate the tool better and safer.
SYMBOL NAME DESIGNATION/EXPLANATION
V
Volts Voltage (potential)
A
Hz
W
min
n
o
.../min
0
Amperes Current
Hertz Frequency (Cycles per second)
Watt Power
Minutes Time
Direct current Type or a characteristic of current
No load speed Rotational speed, at no load
Revolutions or reciprocation per minute Revolutions, strokes, surface speed, orbits etc. per minute
Off position Zero speed, zero torque...
Arrow Action in the direction of arrow
Read The Operator’s Manual
Eye Protection
Breathing protection Wear respirator or proper breathing protection when using this product
Safety Alert Precautions that involve your safety
To reduce the risk of injury, user must read and understand operator’s manual before
using this product
Always wear safety goggles or safety glasses with side shields and a full face shield
when operating this product.
Safety Alert Risk of electric shock
Ni-Cad RBRC seal Designates Ni-Cad battery recycling program
TM
The following signal words and meanings are intended to explain the levels of risk associated with this product.
SYMBOL SIGNAL MEANING
DANGER:
WARNING: Indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury.
CAUTION:
CAUTION:
Indicates an imminently hazardous situation, which, if not avoided, will result in death or serious injury.
Indicates a potentially hazardous situation, which, if not avoided, may result in minor or moderate injury.
(Without Safety Alert Symbol) Indicates a situation that may result in property damage.
This symbol designates that this tool is listed by Underwriters Laboratories,
and listed to Canadian Standards by Underwriters Laboratories.
SAVE THESE INSTRUCTIONS. Refer to them frequently and use them to instruct others who may use this tool. If you loan someone this tool, loan
them these instructions also to prevent misuse of the product and possible injury.
3
Page 4
GENERAL SAFETY RULES — FOR ALL BATTERY OPERATED TOOLS
WARNING: Read and understand all instructions. Failure to
follow all instructions listed below, may result in electric shock,
fi re and/or serious personal injury. SAVE THESE INSTRUCTIONS
WORK AREA
Keep your work area clean and well lit. Cluttered benches and dark areas
invite accidents.
Do not operate power tools in explosive atmospheres, such as in the
presence of fl ammable liquids, gases, or dust. Power tools create sparks
which may ignite the dust or fumes.
Keep by-standers, children, and visitors away while operating a power
tool. Distractions can cause you to lose control.
ELECTRICAL SAFETY
A battery operated tool with integral batteries or a separate battery pack
must be recharged only with the specifi ed charger for the battery. A
charger that may be suitable for one type of battery may create a risk of fi re
when used with another battery.
Use battery operated tool only with specifi cally designated battery pack.
Use of any other batteries may create a risk of fi re.
Use battery only with charger listed:
BATTERY PACK . . . . . . . . . . BP-B18
CHARGER . . . . . . . . . . . . . CU10B18
Power tool plugs must match the outlet. Never modify the plug in any
way. Do not use any adapter plugs with earthed (grounded) power tools.
Unmodifi ed plugs and matching outlets will reduce risk of electric shock.
Avoid body contact with earthed or grounded surfaces such as pipes,
radiators, ranges and refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
Do not expose power tools to rain or wet conditions. Water entering a
power tool will increase the risk of electric shock.
Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving
parts. Damaged or entangled cords increase the risk of electric shock.
PERSONAL SAFETY
Stay alert, watch what you are doing, and use common sense when
operating a power tool. Do not use tool while tired or under the infl uence
of drugs, alcohol, or medication. A moment of inattention while operating
power tools may result in serious personal injury.
Dress properly. Do not wear loose clothing or jewelry. Contain long hair.
Keep your hair, clothing, and gloves away from moving parts. Loose
clothes, jewelry, or long hair can be caught in moving parts.
Avoid accidental starting. Be sure switch is in the locked or off position
before inserting battery pack. Carrying tools with your fi nger on the switch
or inserting the battery pack into a tool with the switch on invites accidents.
TOOL USE AND CARE
Use clamps or other practical way to secure and support the workpiece
to a stable platform. Holding the work by hand or against your body is
unstable and may lead to loss of control.
Do not force tool. Use the correct tool for your application. The correct tool
will do the job better and safer at the rate for which it is designed.
Do not use tool if switch does not turn it on or off. A tool that cannot be
controlled with the switch is dangerous and must be repaired.
Disconnect battery pack from tool or place the switch in the locked or off
position before making any adjustments, changing accessories, or storing the tool. Such preventive safety measures reduce the risk of starting the
tool accidentally.
Store idle tools out of reach of children and other untrained persons.
Tools are dangerous in the hands of untrained users.
When battery pack is not in use, keep it away from other metal objects
like: paper clips, coins, keys, nails, screws, or other small metal objects
that can make a connection from one terminal to another. Shorting the battery terminals together may cause sparks, burns, or a fi re.
Maintain power tools with care. Keep cutting tools sharp and clean. Properly maintained tools with sharp cutting edge are less likely to bind and are
easier to control.
Check for misalignment or binding of moving parts, breakage of parts,
and any other condition that may affect the tool’s operation. If damaged,
have the tool serviced before using. Many accidents are caused by poorly
maintained tools.
Use only accessories that are recommended by the manufacturer for your
model. Accessories that may be suitable for one tool may create a risk of
injury when used on another tool.
Keep the tool and its handle dry, clean and free from oil and grease.
Always use a clean cloth when cleaning. Never use brake fl uids, gasoline,
petroleum-based products, or any strong solvents to clean your tool. Following this rule will reduce the risk of loss of control and deterioration of
the enclosure plastic.
SERVICE
Tool service must be performed only by qualifi ed repair personnel. Service or
maintenance performed by unqualifi ed personnel may result in a risk of injury.
When servicing a tool, use only identical replacement parts. Follow instructions in the Maintenance section of this manual. Use of unauthorized parts or
failure to follow Maintenance Instructions may create a risk of shock or injury.
Remove adjusting keys or wrenches before turning the tool on. A wrench
or a key that is left attached to a rotating part of the tool may result in
personal injury.
Do not overreach. Keep proper footing and balance at all times. Proper footing and balance enable better control of the tool in unexpected situations.
Use safety equipment. Always wear eye protection. Dust mask, non-skid
safety shoes, hard hat, or hearing protection must be used for appropriate
conditions.
4
Page 5
BATTERY/CHARGER SAFETY
WARNING: Before using battery charger, read all instruc-
tions and cautionary markings on (1) battery charger, (2)
battery pack, and (3) product using battery.
Use only the charger which accompanied your product or direct replacement as listed in the catalog or this manual. Do not substitute any other
charger. Use only approved chargers with your product.
Do not operate charger with a damaged cord or plug, which could cause
shorting and electric shock. If damaged, have the charger replaced by an
authorized serviceman.
Do not operate charger if it has received a sharp blow, been dropped,
or otherwise damaged in any way. Take it to an authorized serviceman for
electrical check to determine if the charger is in good working order.
Do not disassemble charger. Take it to an authorized serviceman when
service or repair is required. Incorrect reassembly may result in a risk of
electric shock or fi re.
Do not abuse cord or charger. Never use the cord to carry the charger.
Do not pull the charger cord rather than the plug when disconnecting
from receptacle. Damage to the cord or charger could occur and create
an electric shock hazard. Replace damaged cords immediately.
Make sure cord is located so that it will not be stepped on, tripped
over, come in contact with sharp edges or moving parts or otherwise
subjected to damage or stress. This will reduce the risk of accidental
falls, which could cause injury, and damage to the cord, which could
result in electric shock.
Unplug charger from outlet before attempting any maintenance or
cleaning to reduce the risk of electric shock.
Disconnect charger from the power supply when not in use. This will
reduce the risk of electric shock or damage to the charger if metal items
should fall into the opening. It also will help prevent damage to the charger
during a power surge.
Risk of electric shock. Do not touch uninsulated portion of output
connector or uninsulated battery terminal.
When batteries are not in tool or charger, keep them away from metal
objects. For example, to protect terminals from shorting DO NOT place
batteries in a tool box or pocket with nails, screws, keys, etc. Fire or injury
may result.
DO NOT PUT BATTERIES INTO FIRE OR EXPOSE TO HIGH HEAT. They may
explode.
BATTERY DISPOSAL
Keep cord and charger from heat to prevent damage to housing or
internal parts.
Do not let gasoline, oils, petroleum-based products, etc. come in
contact with plastic parts. They contain chemicals that can damage,
weaken, or destroy plastic.
An extension cord should not be used.
Do not recharge battery in damp or wet environment. Do not expose
charger to rain or snow. If battery case is cracked or otherwise damaged,
do not insert into charger. Water entering charger will increase the risk of
electric shock.
Charge only approved rechargeable batteries. Other types of batteries
may burst causing personal injury and damage.
Charge battery pack in temperatures above +40 degrees F (4 degrees C)
and below +105 degrees F (41 degrees C). Store tool and battery pack in
locations where temperatures will not exceed 120 degrees F (49 degrees C).
This is important to prevent serious damage to the battery cells.
Battery leakage may occur under extreme usage or temperature conditions. Avoid contact with skin and eyes. The battery liquid is caustic and
could cause chemical burns to tissues. If liquid comes in contact with
skin, wash quickly with soap and water, then with lemon juice or vinegar.
If the liquid contacts your eyes, fl ush them with water for a minimum of
10 minutes and seek medical attention.
NICKEL-CADMIUM BATTERIES
This product contains nickel-cadmium batteries. Local, state or
federal laws may prohibit disposal of nickel-cadmium batteries
in ordinary trash.
The EPA certifi ed RBRC Battery Recycling Seal on the
nickel-cadmium (Ni-Cd) battery indicates DuraPRO
voluntarily participating in an industry program to collect
and recycle these batteries at the end of their useful life,
when taken out of service in the United States or Canada.
TM
placing used Ni-Cd batteries into the trash or the municipal waste stream,
which may be illegal in your area.
Please call 1-800-8-BATTERY for information on Ni-Cd battery recycling and
disposal bans/restrictions in your area.
The RBRC program provides a convenient alterative to
WARNING: Upon removal, cover the battery pack’s ter-
minals with heavy-duty adhesive tape. Do not attempt to
destroy or disassemble battery pack or remove any of its
components. Nickel-cadmium batteries must be recycled
or disposed of properly. Also, never touch both terminals
with metal objects and/or body parts as short circuit may
result. Keep away from children. Failure to comply with
these warnings could result in fi re and/or serious injury.
®
is
Place charger on fl at non-fl ammable surfaces and away from fl ammable
materials when re-charging battery pack. The charger and battery pack
heat during charging. Carpeting and other heat insulating surfaces block
proper air circulation which may cause overheating of the charger and battery pack. If smoke or melting of the case are observed unplug the charger
immediately and do not use the battery pack or charger. Use of an attachment not recommended or sold by DuraPRO
electric shock or injury to persons.
®
may result in a risk of fi re,
5
Page 6
OPERATION
#(!2').'
%.42!).
$%#(!2'%2
#!2'!.$/
#(!2'%$
#(!2'³%
#!2'!$!
(/52#(!2'%2
#(!2'%52$5.%(%52%
#!2'!$/2$%(/2!
#5"
&OR60OWER0ACK
0OURBLOCDALIMENTATIONDE6
0ARA"ATERÓASE6
LED FUNCTIONS OF CHARGER
LED WILL BE ON TO INDICATE STATUS OF CHARGER AND BATTERY PACK:
Red LED on = Fast charging mode.
Green LED on = Fully charged and in maintenance charge mode.
No LED on = Defective charger or battery pack.
CHARGING THE BATTERY PACK
WARNING: A new battery pack is not charged and
must be fully charged before fi rst use. Never charge the
battery pack again immediately after a fast charging
process has been completed. This can cause the battery
pack to become overcharged and may reduce the life
of the battery and charger. Do not leave battery pack in
charger over 3 hours after the green light turns on.
NOTE: Batteries will not reach full charge the fi rst time they are charged.
Allow several cycles (operation followed by recharging) for them to
become fully charged.
NOTE: If the charger does not charge the battery pack under normal
circumstances, return both the battery pack and charger.
Charge the battery pack only with a recommended charger. CU10B18
1
Place the battery pack in the charger aligning raised rib on
the battery pack with the groove in the charger.
2
Press down on the battery pack to be sure contacts on the
battery pack engage properly with contacts in the charger.
3
Make sure the power supply is normal household voltage,
120 volts, 60 Hz, AC only.
4
Connect the charger to the power supply.
Normally the red LED on charger will come on. This indicates the charger
is in fast charging mode.
Red LED should remain on for approximately 1 hour then the green
LED will come on. Green LED on indicates battery pack is fully charged.
NOTE: The green LED will remain on until the battery pack is removed from
the charger or charger is disconnected from the power supply.
After normal usage, a minimum of 1 hour of charging time is required to
fully recharge battery pack.
The battery pack will become slightly warm to the touch while charging.
This is normal and does not indicate a problem.
Do not place the charger and battery pack in an area of extreme heat or
cold. They will work best at normal room temperature.
NOTE: The charger and battery pack should be placed in a location where
the temperature is more than 50°F but less than 100°F.
When batteries become fully charged, unplug the charger from power
supply and remove the battery pack.
If you wish to charge a second battery pack, unplug charger from power
supply. Keep charger off for at least 15 minutes. Then you can start to
charge the second battery. If you do not unplug charger before the second
charging process starts, then the second battery cannot be charged.
CAUTION: To prevent damage to the battery pack, remove the battery
pack from the charger immediately if no LED comes on. Return the
battery pack and charger to your nearest service center for checking or
replacing. Also, if you are removing the battery pack from the charger
and no LEDs are on, return both the battery pack and the charger to
your nearest service center. Do not insert another battery pack into the
charger. A damaged charger may damage a battery pack.
BP-B18
RED LIGHT
GREEN LIGHT
CU10B18
6
Page 7
SAFETY RULES FOR CORDLESS DRIVERS
Know your power tool. Read operator’s manual carefully. Learn its applications and limitations, as well as the specifi c potential hazards related to this
tool. Following this rule will reduce the risk of electric shock, fi re, or serious
injury.
Always wear safety glasses with side shields. Everyday glasses have only
impact resistant lenses. They are NOT safety glasses. Following this rule will
reduce the risk of eye injury.
Protect your lungs. Wear a face or dust mask if the operation is dusty.
Following this rule will reduce the risk of serious personal injury.
Protect your hearing. Wear hearing protection during extended periods of
operation. Following this rule will reduce the risk of serious personal injury.
Use thick cushioned gloves and limit the exposure time by taking
frequent rest periods. Vibration caused by hammer-drill action may be
harmful to your hands and arms.
Hold tools by insulated gripping surfaces when performing an operation
where the cutting tool may contact hidden wiring or it own cord. Contact
with a “live” wire will make exposed metal parts of the tool “live” and shock
the operator. Do not drill, fasten or break into existing walls or other blind
areas where electrical wiring may exist. If this situation is unavoidable,
disconnect all fuses or circuit breakers feeding this work site.
Secure the material being fastened. Never hold it in your hand or across
your legs. Unstable support can cause loss of control and injury.
Place the tool onto the fastener only when the screwdriver is switched
off. Rotating driver tools can slide off the fastener.
Be careful when driving long screws—there is a risk of sliding off the
fastener head depending on type of socket or bit used. First test the
run-down of a fastener and pay attention during the screw driving process
to insure you do not injure yourself if the tool bit or socket slides off of the
fastener.
Some dust created by power sanding, sawing, grinding, drilling and other
construction activities contains chemicals known to cause cancer, birth
defects or other reproductive harm. Some examples of these chemicals are:
• Lead from lead-based paints
• Crystalline silica from bricks, cement and other masonry products.
• Arsenic and chromium from chemically treated lumber.
Your risk from these exposures varies depending on how often you do
this type of work. To reduce your exposure to these chemicals, work in a
well-ventilated area and work with approved safety equipment such as dust
masks designed to fi lter out microscopic particles.
Battery tools do not have to be plugged into an electrical outlet;
therefore, they are always in operating condition. Be aware of possible
hazards when not using your battery tool or when changing accessories.
Following this rule will reduce the risk of electric shock, fi re, or serious
personal injury.
Do not place battery tools or their batteries near fi re or heat. This will
reduce the risk of explosion and possibly injury.
Never use a battery that has been dropped or received a sharp blow. A
damaged battery is subject to explosion. Properly dispose of a dropped or
damaged battery immediately.
Batteries vent hydrogen gas and can explode in the presence of a source
of ignition, such as a pilot light. To reduce the risk of serious personal
injury, never use any cordless product in the presence of open fl ame. An
exploded battery can propel debris and chemicals. If exposed, fl ush with
water immediately.
Avoid accidental starting. Be sure the forward/reverse switch is in the off
position before inserting battery pack. Carrying appliances with your fi nger
on the switch or inserting the battery pack into an appliance with the switch
on invites accidents.
Remove battery pack before changing accessories. Accidental starting
may occur because battery appliances with a battery inserted are in the
operative condition.
Be prepared for a reaction torque when “seating” or removing a fastener.
The screwdriver housing may tend to twist in the opposite direction of bit
rotation when “seating” or removing a fastener depending on the torque
setting of the tool.
Do not use dull or damaged bits and accessories. When installing an accessory, insert the shank of the bit well within the chuck. Be sure the chuck
has locked onto the bit correctly.
Do not run the tool while carrying it at your side. A spinning bit could
become entangled with clothing and injury may result.
7
Page 8
FEATURES
PRODUCT SPECIFICATIONS
Motor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18 Volt DC
Chuck . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1/4"
Gear Train . . . . . . . . . . . . . . . . . . . . . . . . . . . .One Speed
Switch. . . . . . . . . . . . . . . . . . . . . . . . . . . Variable Speed
No Load Speed . . . . . . . . . . . . . . . . . . . . . .0-3,000/min.
Charger Input . . . . . . . . . . . . . . . . 120 V, 60 Hz, AC only
Charge Rate . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 Hour
Torque. . . . . . . . . . . . . . . . . . . . . . .Minimum 1,000 in.lb
Blows Per Minute . . . . . . . . . . . . . . . . . . . . . 3,800/BPM
KNOW YOUR IMPACT DRIVER
Before attempting to use this product, familiarize yourself with all operating
features and safety rules.
SWITCH LOCK
The switch trigger can be locked in the OFF position. This feature helps
reduce the possibility of accidental starting when not in use.
VARIABLE SPEED
This tool has a variable speed switch that delivers higher speed with
increased trigger pressure. Speed is controlled by the amount of switch
trigger depression.
FORWARD/REVERSE SELECTOR (DIRECTION OF ROTATION SELECTOR)
The impact-driver has a forward/reverse selector located above the switch
trigger.
STORAGE
When not in use, remove bit from impact driver.
BLOWS PER MINUTE
This tool features an impact speed of 3,800 Blows Per Minute (BPM). Blows
Per Minute is the number of impacts per minute.
CHUCK
VARIABLE SPEED
SWITCH TRIGGER
FORWARD/ REVERSE
SELECTOR WITH
CENTER LOCK
8
Page 9
ASSEMBLY
UNPACKING
• This product has been shipped completely assembled.
• Carefully remove the tool and any accessories from the box. Make sure
that all items listed in the packing list are included.
• Inspect the tool carefully to make sure no breakage or damage occurred
during shipping.
• Do not discard the packing material until you have carefully inspected and
satisfactorily operated the tool.
OPERATION
APPLICATIONS
You may use this tool for the following purposes:
• Driving long deck screws while building a deck
• Driving carriage bolts into deck posts
• Driving Tapcon screws into block walls and concrete
• Driving screws into metal studs
WARNING: If any parts are missing do not operate this
tool until the missing parts are replaced. Failure to do so
could result in possible serious personal injury.
WARNING: Do not attempt to modify this tool or create
accessories not recommended for use with this tool. Any
such alteration or modifi cation is misuse and could result in a hazardous condition leading to possible serious
personal injury.
WARNING: To prevent accidental starting that could
cause serious personal injury, always remove the battery
pack from the tool when assembling parts.
WARNING: Do not allow familiarity with tools to make
you careless. Remember that a careless fraction of a
second is suffi cient to infl ict serious injury.
WARNING: Always wear safety goggles or safety glasses
with side shields when operating tools. Failure to do
so could result in objects being thrown into your eyes,
resulting in possible serious injury.
WARNING: Do not use any attachments or accessories
not recommended by the manufacturer of this tool. The
use of attachments or accessories not recommended can
result in serious personal injury.
9
Page 10
OPERATION
WARNING: Battery tools are always in operating condi-
tion. Therefore, switch should always be locked when not
in use or carrying at your side.
CAUTION: The metal surface may become hot during use. Avoid
contact with it to avoid possible burn injury.
SWITCH TRIGGER
To turn the tool ON, depress the switch trigger. To turn it OFF, release the
switch trigger.
SWITCH LOCK
The switch trigger can be locked in the OFF (center) position. This feature
can be used to prevent the possibility of accidental starting when not in
use. To lock switch trigger, place the direction of rotation selector in center
position.
REVERSIBLE
This tool has the feature of being reversible. The direction of rotation is
controlled by a selector located above the switch trigger. With the tool held
in normal operating position, the direction of rotation selector
should be positioned to the left of the switch for tightening.
The direction is reversed when the selector is to the right
of the switch. When the selector is in center position,
the switch trigger is locked.
TO INSTALL BATTERY PACK
1
Lock switch trigger on the tool by placing the direction of rotation
selector in center position.
2
Place battery pack in the tool. Align raised rib inside tool with
groove on battery pack.
3
Make sure the latches on each side of the battery pack snap into
place and battery pack is secured in tool before beginning operation.
CAUTION:
rib inside tool aligns with groove on battery pack and latches snap in
place properly. Improper assembly of battery pack can cause damage to
internal components.
When placing battery pack in the tool, be sure raised
TO REMOVE BATTERY PACK
1
Lock switch trigger on the tool by placing the direction
of rotation selector in center position.
2
Locate latches on end of battery pack and depress to
release battery pack from the tool.
3
Remove battery pack from the tool.
VARIABLE SPEED
This tool has a variable speed switch that delivers higher
speed and torque with increased trigger pressure. Speed is
controlled by the amount of switch trigger depression.
CAUTION: To prevent gear damage, always allow
chuck to come to a complete stop before changing the
direction of rotation. To stop, release switch trigger
and allow the chuck to come to a complete stop.
BUILT-IN CHUCK
The tool has a built-in chuck. The chuck has been designed
to accept 1/4 in. hex bits.
INSTALLING BITS
Lock switch trigger on the tool by placing the direction
1
of rotation selector in center position.
2
Slide the chuck forward and hold in position.
Insert bit straight into chuck.
3
4
Slide the chuck back slowly and release.
REMOVING BITS
Lock switch trigger or the drill by placing the direction
1
of rotation selector in center position.
2
Slide the chuck forward and hold in position.
Pull bit straight out of chuck.
3
FORWARD/ REVERSE
SELECTOR WITH
CENTER LOCK
LATCH
10
Page 11
SPECIFIC SAFETY RULES
Know your work light. Read operator’s manual carefully. Learn its applications and limitations, as well as the specifi c potential hazards related to this
work light. Following this rule will reduce the risk of electric shock, fi re, or
serious injury.
Lens and bulb become hot during use:
• During or immediately after use, don’t lay work light fl at on lens surface or
place lens area in contact with a plastic or fabric covered surface.
• Handle work light with care around any fl ammable surface.
• Let work light cool for several minutes after use before changing bulb.
• Do not use or permit use of work light in bed or sleeping bags. This work
light lens can melt fabric and a burn injury could result.
Use only the charger recommended for use with your work light. Do not
substitute any other charger. Use of another charger could cause batteries
to explode causing possible serious injury.
Use only recommended battery pack with your work light. Any attempt to
use another battery pack will cause damage to your work light and could
possibly explode, cause a fi re, or personal injury.
FEATURES
PRODUCT SPECIFICATIONS
Remove battery pack from work light before replacing bulb or performing
any routine maintenance or cleaning.
Do not disassemble your work light.
Do not permit children to use work light unsupervised. It is not a toy.
The temperature of the bulb will become hot after being on for only a short
period of time. This hot temperature can cause burn injury if touched and
can create suffi cient heat to melt some fabrics.
If wrapped or in contact with fabrics, the work light lens can produce suffi cient heat to melt some fabrics. To avoid serious personal injury, never
allow the work light lens to come in contact with anything.
Check damaged parts. Do not use work light if it does not function properly.
BULB STORAGE AREA
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18 Volt DC
Charger Input . . . . . . . . . . . . . . . . 120 V, 60 Hz, AC only
Charge Rate . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 hour
Bulb . . . . . . . . . . . . . . . . . . . . . . . . . . . . .KPR 18V 0.6A
KNOW YOUR WORK LIGHT
Before attempting to use this product, familiarize yourself with
all operating features and safety rules.
180° ROTATING HEAD
Pivoting head rotates 180° allowing light to be projected
in any direction.
BULB REPLACEMENT
When purchasing replacement bulb, request recommended
part number KPR 18V 0.6A.
TO REPLACE BULB:
1
Allow bulb to cool.
2
Remove battery pack by depressing side latches to release
from work light.
3
Remove lens cover by turning in a counterclockwise direction.
4
Remove old bulb from spring by pulling out.
5
Insert new bulb in spring and push in slightly to seat.
6
Replace lens cover.
7
Replace battery pack.
NOTE: For your convenience, the work light has a spare bulb storage area
located behind the lens cover.
BULB
SWITCH
180° ROTATING HEAD
LATCH
11
Page 12
ASSEMBLY
UNPACKING
This product has been shipped completely assembled.
• Carefully remove the work light and any accessories from the box.
Make sure that all items listed in the packing list are included.
• Inspect the work light carefully to make sure no breakage or
damage occurred during shipping.
• Do not discard the packing material until you have carefully
inspected and satisfactorily operated the work light.
OPERATION
SWITCH
To turn the work light ON and OFF, depress the switch.
180° ROTATING HEAD
Rotate the head of work light to change the direction of light beam.
WARNING: If any parts are missing do not operate this
work light until the missing parts are replaced. Failure
to do so could result in possible serious personal injury.
WARNING: Do not attempt to modify this work light or
create accessories not recommended for use with this
work light. Any such alteration or modifi cation is misuse
and could result in a hazardous condition leading to
possible serious personal injury.
WARNING: Always remove the battery pack from the work
light when assembling parts or changing light bulb. Failure
to do so could result in possible serious personal injury.
CAUTION: Battery tools are always in operating condition. Use cau-
tion when carrying to prevent depressing the switch trigger when light is
not needed.
MAINTENANCE
GENERAL MAINTENANCE
Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents and may be
damaged by their use. Use clean cloths to remove dirt, dust, oil, grease, etc.
WARNING: Do not at any time let brake fl uids, gasoline,
petroleum-based products, penetrating oils, etc., come
in contact with plastic parts. Chemicals can damage,
weaken ordestroy plastic which may result in serious
personal injury.
WARNING: When servicing, use only identical replace-
ment parts. Use of any other parts may create a hazard
or cause product damage.
WARNING: Always wear safety goggles or safety glasses
with side shields when using compressed air to clean
work lights. If operation is dusty, also wear a dust mask.
WARNING: To avoid serious personal injury, always re-
move the battery pack from the work light when cleaning
or performing any maintenance.
12
Page 13
12
tout nettoyage ou entretien.
tojours retirer le bloc de batterie de la lampe avant
accidentel pouvant entraîner des blessures graves,
AVERTISSEMENT : Pour empêcher un démarrage
un masque anti-poussière.
opération dégage de la poussière, porter également
d’air comprimé pour le nettoyage de la lampe. Si une
sécurité munies d’écrans latéraux lors de l’utilisation
AVERTISSEMENT : Toujours porter des lunettes de
endommager l’outil.
pièce pourrait créer une situation dangereuse ou
d’origine pour les réparations. L’usage de toute autre
AVERTISSEMENT : Utiliser exclusivement des pièces
ce qui peut entraîner des blessures graves.
peuvent endommager, affaiblir ou détruire le plastique,
avec les pièces en plastique. Les produits chimiques
pétrole, les huiles pénétrantes, etc., entrer en contact
que le fl uide de freins, l’essence, les produits à base de
AVERTISSEMENT : Ne jamais laisser de liquides tels
la poussière, l’huile, la graisse, etc.
de solvants du commerce. Utiliser un chiffon propre pour éliminer la saleté,
plupart des matières plastiques peuvent être endommagées par divers types
Éviter d’utiliser des solvants pour le nettoyage des pièces en plastique. La
ENTRETIEN GÉNÉRAL
ENTRETIEN
Tourner la tête de la lampe pour orienter le faisceau.
TÊTE PIVOTANTE SUR 180°
gâchette lorsque l’éclairage n’est pas nécessaire.
fonctionnement. Pendant le transport, veiller à ne pas appuyer sur la
ATTENTION : Les outils à batteries sont toujours en état de
sur le commutateur.
Pour mettre la perceuse ON (MARCHE) et OFF (L’ÉTEINDRE) appuyer
COMMUTATEUR
UTILISATION
entraîner des blessures graves.
l’ampoule. Ne pas prendre cette précaution pourrait
de la lampe avant d’installer des pièces ou de remplacer
AVERTISSEMENT : Toujours retirer le bloc de batteries
des blessures graves.
créer des conditions dangereuses, risquant d’entraîner
sont considérées comme un usage abusif et peuvent
pour cette lampe. De telles altérations ou modifi cations
lampe ou de créer des accessoires non recommandés
AVERTISSEMENT : Ne pas essayer de modifi er cette
blessures graves.
Ne pas prendre cette précaution pourrait entraîner des
utiliser cette lampe avant qu’elles aient été installées.
AVERTISSEMENT : Si des pièces manquent, ne pas
examiné la lampe et avoir vérifi é qu’elle fonctionne correctement.
• Ne pas jeter les matériaux d’emballage avant d’avoir soigneusement
brisé ou endommagé en cours de transport.
• Examiner soigneusement la lampe pour s’assurer que rien n’a été
incluses.
S’assurer que toutes les pièces fi gurant sur la liste de contrôle sont
• Avec précaution, sortir la lampe et les accessoires de la boîte.
Ce produit a été expédié complètement assemblé.
DÉBALLAGE
ASSEMBLAGE
Loading...
