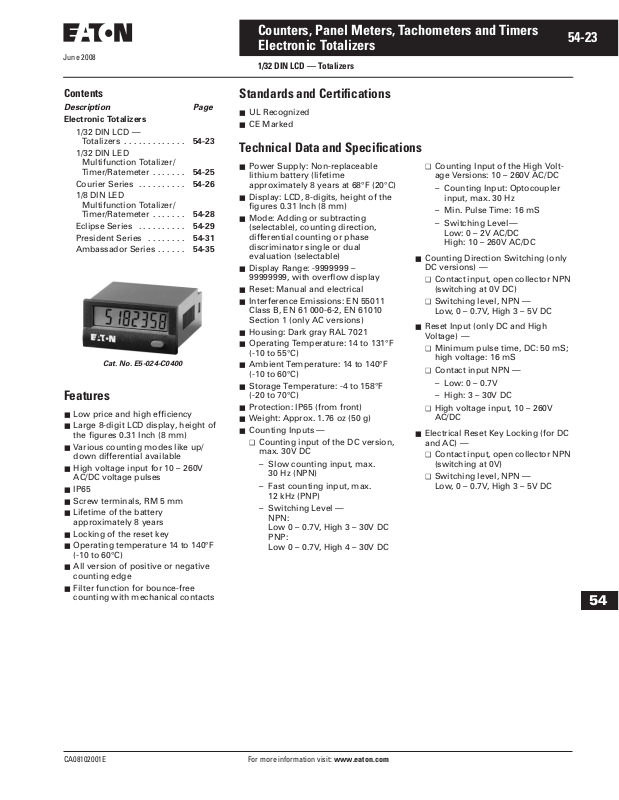

Durant-Eaton Totalizers Data Sheet
June 2008
Counters, Panel Meters, Tachometers and Timers
Electronic Totalizers
1/32 DIN LCD — Totalizers
54-23
Contents
Description Page
Electronic Totalizers
1/32 DIN LCD —
Totalizers . . . . . . . . . . . . . 54-23
1/32 DIN LED
Multifunction Totalizer/
Timer/Ratemeter . . . . . . . 54-25
Courier Series . . . . . . . . . . 54-26
1/8 DIN LED
Multifunction Totalizer/
Timer/Ratemeter . . . . . . . 54-28
Eclipse Series . . . . . . . . . . 54-29
President Series . . . . . . . . 54-31
Ambassador Series . . . . . . 54-35
Cat. No. E5-024-C0400
Features
■ Low price and high efficiency
■ Large 8-digit LCD display, height of
the figures 0.31 Inch (8 mm)
■ Various counting modes like up/
down differential available
■ High voltage input for 10 – 260V
AC/DC voltage pulses
■ IP65
■ Screw terminals, RM 5 mm
■ Lifetime of the battery
approximately 8 years
■ Locking of the reset key
■ Operating temperature 14 to 140°F
(-10 to 60°C)
■ All version of positive or negative
counting edge
■ Filter function for bounce-free
counting with mechanical contacts
Standards and Certifications
■ UL Recognized
■ CE Marked
Technical Data and Specifications
■ Power Supply: Non-replaceable
lithium battery (lifetime
approximately 8 years at 68°F (20°C)
■ Display: LCD, 8-digits, height of the
figures 0.31 Inch (8 mm)
■ Mode: Adding or subtracting
(selectable), counting direction,
differential counting or phase
discriminator single or dual
evaluation (selectable)
■ Display Range: -9999999 –
99999999, with overflow display
■ Reset: Manual and electrical
■ Interference Emissions: EN 55011
Class B, EN 61 000-6-2, EN 61010
Section 1 (only AC versions)
■ Housing: Dark gray RAL 7021
■ Operating Temperature: 14 to 131°F
(-10 to 55°C)
■ Ambient Temperature: 14 to 140°F
(-10 to 60°C)
■ Storage Temperature: -4 to 158°F
(-20 to 70°C)
■ Protection: IP65 (from front)
■ Weight: Approx. 1.76 oz (50 g)
■ Counting Inputs —
❑ Counting input of the DC version,
max. 30V DC
– Slow counting input, max.
30 Hz (NPN)
– Fast counting input, max.
12 kHz (PNP)
– Switching Level —
NPN:
Low 0 – 0.7V, High 3 – 30V DC
PNP:
Low 0 – 0.7V, High 4 – 30V DC
❑ Counting Input of the High Volt-
age Versions: 10 – 260V AC/DC
– Counting Input: Optocoupler
input, max. 30 Hz
– Min. Pulse Time: 16 mS
– Switching Level—
Low: 0 – 2V AC/DC
High: 10 – 260V AC/DC
■ Counting Direction Switching (only
DC versions) —
❑ Contact input, open collector NPN
(switching at 0V DC)
❑ Switching level, NPN —
Low, 0 – 0.7V, High 3 – 5V DC
■ Reset Input (only DC and High
Voltage) —
❑ Minimum pulse time, DC: 50 mS;
high voltage: 16 mS
❑ Contact input NPN —
– Low: 0 – 0.7V
– High: 3 – 30V DC
❑ High voltage input, 10 – 260V
AC/DC
■ Electrical Reset Key Locking (for DC
and AC) —
❑ Contact input, open collector NPN
(switching at 0V)
❑ Switching level, NPN —
Low, 0 – 0.7V, High 3 – 5V DC
54
CA08102001E For more information visit: www.eaton.com
54-24
Counters, Panel Meters, Tachometers and Timers
Electronic Totalizers
1/32 DIN LCD — Totalizers
Product Selection
Table 54-29. Product Selection — 1/32 DIN LCD, Totalizers
Description Catalog
8-digit LCD Totalizer, Battery Power
0.94 x 1.89 Inch (24 x 48 mm) LCD Totalizer
10 – 260V Input 0.94 x 1.89 Inch (24 x 48 mm) LCD Totalizer
Count Up/Down 0.94 x 1.89 Inch (24 x 48 mm) LCD Totalizer
Dimensions
Number
E5-024-C0400
E5-024-C0408
E5-024-C0410
June 2008
Price
U.S. $
0.94
572690.43
(24)
+ 0.012
1.77
+0.3
(22.2
1.89 (48)
)
1.77
(45
0.87 x 1.77
+ 0.024
+ 0.6
)
(22 x 45)
MAX. 1.89 (19.3)
0.11 (2.8)
1.88 (47.7)
0.12 (3)
Figure 54-37. 1/32 DIN LCD, Totalizers — Approximate Dimensions in Inches (mm)
54
Discount Symbol . . . . . . . . . . . . . . . . . . . . . . . . CC-4
For more information visit: www.eaton.com CA08102001E
