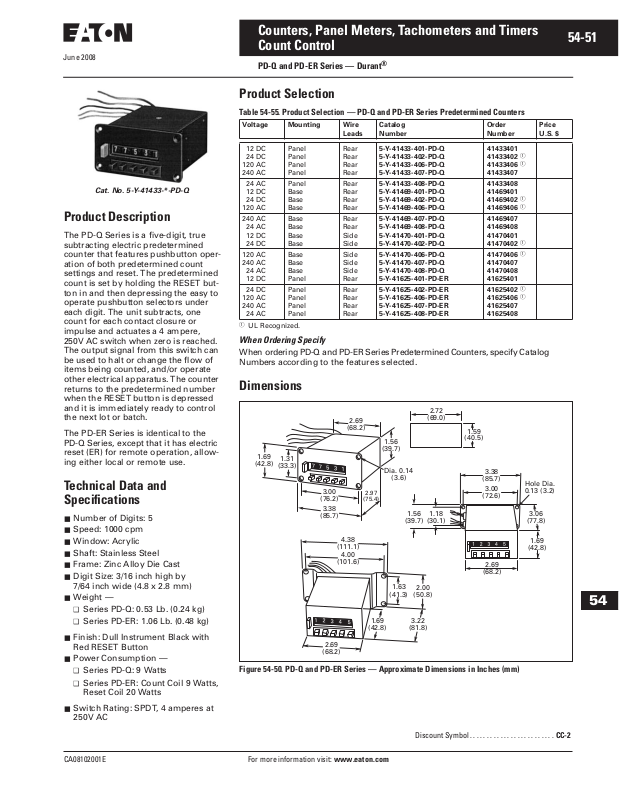

Durant-Eaton PD-Q Series, PD-ER Series Data Sheet
June 2008
Cat. No. 5-Y-41433-*-PD-Q
Product Description
The PD-Q Series is a five-digit, true
subtracting electric predetermined
counter that features pushbutton operation of both predetermined count
settings and reset. The predetermined
count is set by holding the RESET button in and then depressing the easy to
operate pushbutton selectors under
each digit. The unit subtracts, one
count for each contact closure or
impulse and actuates a 4 ampere,
250V AC switch when zero is reached.
The output signal from this switch can
be used to halt or change the flow of
items being counted, and/or operate
other electrical apparatus. The counter
returns to the predetermined number
when the RESET button is depressed
and it is immediately ready to control
the next lot or batch.
The PD-ER Series is identical to the
PD-Q Series, except that it has electric
reset (ER) for remote operation, allowing either local or remote use.
Technical Data and
Specifications
■ Number of Digits: 5
■ Speed: 1000 cpm
■ Window: Acrylic
■ Shaft: Stainless Steel
■ Frame: Zinc Alloy Die Cast
■ Digit Size: 3/16 inch high by
7/64 inch wide (4.8 x 2.8 mm)
■ Weight —
❑ Series PD-Q: 0.53 Lb. (0.24 kg)
❑ Series PD-ER: 1.06 Lb. (0.48 kg)
■ Finish: Dull Instrument Black with
Red RESET Button
■ Power Consumption —
❑ Series PD-Q: 9 Watts
❑ Series PD-ER: Count Coil 9 Watts,
Reset Coil 20 Watts
■ Switch Rating: SPDT, 4 amperes at
250V AC
Counters, Panel Meters, Tachometers and Timers
Count Control
PD-Q and PD-ER Series — Durant
Product Selection
Table 54-55. Product Selection — PD-Q and PD-ER Series Predetermined Counters
Voltage Mounting Wire
12 DC
24 DC
120 AC
240 AC
24 AC
12 DC
24 DC
120 AC
240 AC
24 AC
12 DC
24 DC
120 AC
240 AC
24 AC
12 DC
24 DC
120 AC
240 AC
24 AC
UL Recognized.
Panel
Panel
Panel
Panel
Panel
Base
Base
Base
Base
Base
Base
Base
Base
Base
Base
Panel
Panel
Panel
Panel
Panel
Leads
Rear
Rear
Rear
Rear
Rear
Rear
Rear
Rear
Rear
Rear
Side
Side
Side
Side
Side
Rear
Rear
Rear
Rear
Rear
When Ordering Specify
When ordering PD-Q and PD-ER Series Predetermined Counters, specify Catalog
Numbers according to the features selected.
Dimensions
2.69
(68.2)
1.69
1.31
(42.8)
(33.3)
3.00
(76.2)
3.38
(85.7)
4.38
(111.1)
4.00
(101.6)
2.69
(68.2)
Figure 54-50. PD-Q and PD-ER Series — Approximate Dimensions in Inches (mm)
®
Catalog
Number
5-Y-41433-401-PD-Q
5-Y-41433-402-PD-Q
5-Y-41433-406-PD-Q
5-Y-41433-407-PD-Q
5-Y-41433-408-PD-Q
5-Y-41469-401-PD-Q
5-Y-41469-402-PD-Q
5-Y-41469-406-PD-Q
5-Y-41469-407-PD-Q
5-Y-41469-408-PD-Q
5-Y-41470-401-PD-Q
5-Y-41470-402-PD-Q
5-Y-41470-406-PD-Q
5-Y-41470-407-PD-Q
5-Y-41470-408-PD-Q
5-Y-41625-401-PD-ER
5-Y-41625-402-PD-ER
5-Y-41625-406-PD-ER
5-Y-41625-407-PD-ER
5-Y-41625-408-PD-ER
1.56
(39.7)
Dia. 0.14
(3.6)
2.97
(75.4)
1.56
(39.7)
1.63
(41.3)
1.69
(42.8)
2.00
(50.8)
3.22
(81.8)
2.72
(69.0)
1.18
(30.1)
1.59
(40.5)
Order
Number
41433401
41433402
41433406
41433407
41433408
41469401
41469402
41469406
41469407
41469408
41470401
41470402
41470406
41470407
41470408
41625401
41625402
41625406
41625407
41625408
3.38
(85.7)
3.00
(72.6)
2.69
(68.2)
Hole Dia.
0.13 (3.2)
3.06
(77.8)
1.69
(42.8)
Price
U.S. $
54-51
54
CA08102001E For more information visit: www.eaton.com
