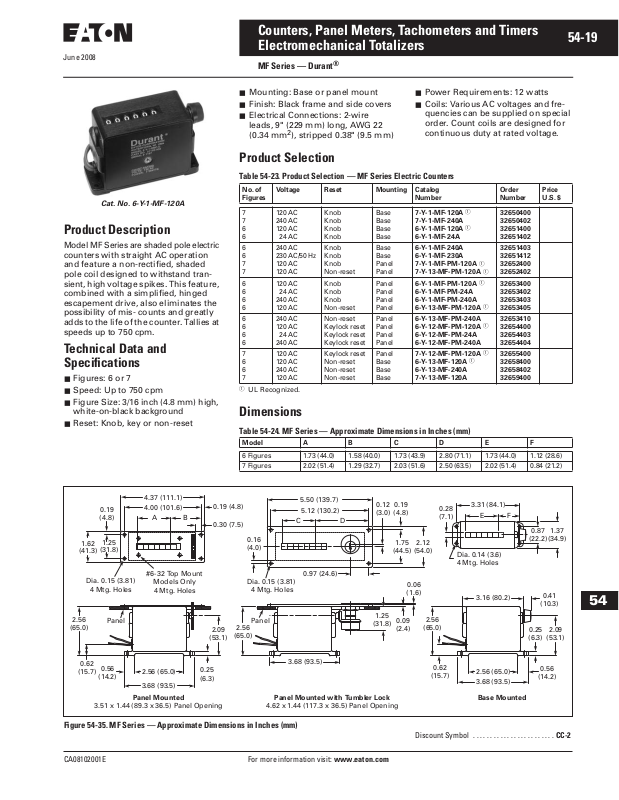

Page 1

June 2008

Counters, Panel Meters, Tachometers and Timers Electromechanical Totalizers

MF Series — Durant

54-19

Cat. No. 6-Y-1-MF-120A

Product Description

Model MF Series are shaded pole electric

counters with straight AC operation and feature a non-rectiﬁed, shaded pole coil designed to withstand transient, high voltage spikes. This feature, combined with a simpliﬁed, hinged escapement drive, also eliminates the possibility of mis- counts and greatly adds to the life of the counter. Tallies at speeds up to 750 cpm.

Technical Data and Speciﬁcations

■ Figures: 6 or 7

■ Speed: Up to 750 cpm

■ Figure Size: 3/16 inch (4.8 mm) high,

white-on-black background

■ Reset: Knob, key or non-reset

1.62

(41.3)

Dia. 0.15 (3.81)

4 Mtg. Holes

2.56

(65.0)

0.19 (4.8)

1.25

(31.8)

Panel

4.37 (111.1)

4.00 (101.6) AB

#6-32 Top Mount

Models Only 4 Mtg. Holes

0.19 (4.8)

0.30 (7.5)

2.09

(53.1)

■ Mounting: Base or panel mount

■ Finish: Black frame and side covers

■ Electrical Connections: 2-wire

leads, 9" (229 mm) long, AWG 22 (0.34 mm

), stripped 0.38" (9.5 mm)

■ Power Requirements: 12 watts

■ Coils: Various AC voltages and fre-

quencies can be supplied on special order. Count coils are designed for continuous duty at rated voltage.

Product Selection

Table 54-23. Product Selection — MF Series Electric Counters

No. of Figures

7 7 6 6

6 6 7 7

6 6 6 6

7 6 6 7



Voltage Reset Mounting Catalog

120 AC 240 AC 120 AC

24 AC

240 AC 230 AC/50 Hz 120 AC 120 AC

120 AC

24 AC 240 AC 120 AC

240 AC 120 AC

24 AC 240 AC

120 AC 120 AC 240 AC 120 AC

UL Recognized.

Knob Knob Knob Knob

Knob Knob Knob Non-reset

Non-reset Keylock reset Keylock reset Keylock reset

Keylock reset Non-reset Non-reset Non-reset

Base Base Base Base

Base Base Panel Panel

Panel Panel Panel Panel

Panel Base Base Base

Number

7-Y-1-MF-120A 7-Y-1-MF-240A 6-Y-1-MF-120A 6-Y-1-MF-24A

6-Y-1-MF-240A 6-Y-1-MF-230A 7-Y-1-MF-PM-120A 7-Y-13-MF-PM-120A

6-Y-1-MF-PM-120A 6-Y-1-MF-PM-24A 6-Y-1-MF-PM-240A 6-Y-13-MF-PM-120A

6-Y-13-MF-PM-240A 6-Y-12-MF-PM-120A 6-Y-12-MF-PM-24A 6-Y-12-MF-PM-240A

7-Y-12-MF-PM-120A 6-Y-13-MF-120A 6-Y-13-MF-240A 7-Y-13-MF-120A



Order Number

32650400 32650402 32651400 32651402

32651403 32651412 32652400 32652402

32653400 32653402 32653403 32653405

32653410 32654400 32654403 32654404

32655400 32658400 32658402 32659400

Dimensions

Table 54-24. MF Series — Approximate Dimensions in Inches (mm)

Model A B C D E F

6 Figures 1.73 (44.0) 1.58 (40.0) 1.73 (43.9) 2.80 (71.1) 1.73 (44.0) 1.12 (28.6) 7 Figures 2.02 (51.4) 1.29 (32.7) 2.03 (51.6) 2.50 (63.5) 2.02 (51.4) 0.84 (21.2)

0.16

(4.0)

Dia. 0.15 (3.81)

4 Mtg. Holes

Panel

2.56

(65.0)

5.50 (139.7)

5.12 (130.2)

0.97 (24.6)

0.12 (3.0)

1.25

(31.8)

0.19 (4.8)

1.75

(44.5)

0.09 (2.4)

0.06 (1.6)

2.12

(54.0)

(65.0)

2.56

0.28 (7.1)

Dia. 0.14 (3.6) 4 Mtg. Holes

3.31 (84.1)

3.16 (80.2)

0.87

(22.2)

0.25 (6.3)

Price U.S. $

1.37

(34.9)

0.41

(10.3)

2.09

(53.1)

0.62

0.56

(15.7)

(14.2)

3.51 x 1.44 (89.3 x 36.5) Panel Opening

2.56 (65.0)

3.68 (93.5)

Panel Mounted

0.25 (6.3)

3.68 (93.5)

Panel Mounted with Tumbler Lock

4.62 x 1.44 (117.3 x 36.5) Panel Opening

Figure 54-35. MF Series — Approximate Dimensions in Inches (mm)

CA08102001E For more information visit: www.eaton.com

0.62

(15.7)

2.56 (65.0)

3.68 (93.5)

Base Mounted

0.56

(14.2)

Discount Symbol . . . . . . . . . . . . . . . . . . . . . . . . CC-2
