Durant-Eaton ME Series Data Sheet
June 2008
Bottom Mount
Wire Leads
Base Mount
Wire Leads
Panel Mount
Wire Leads

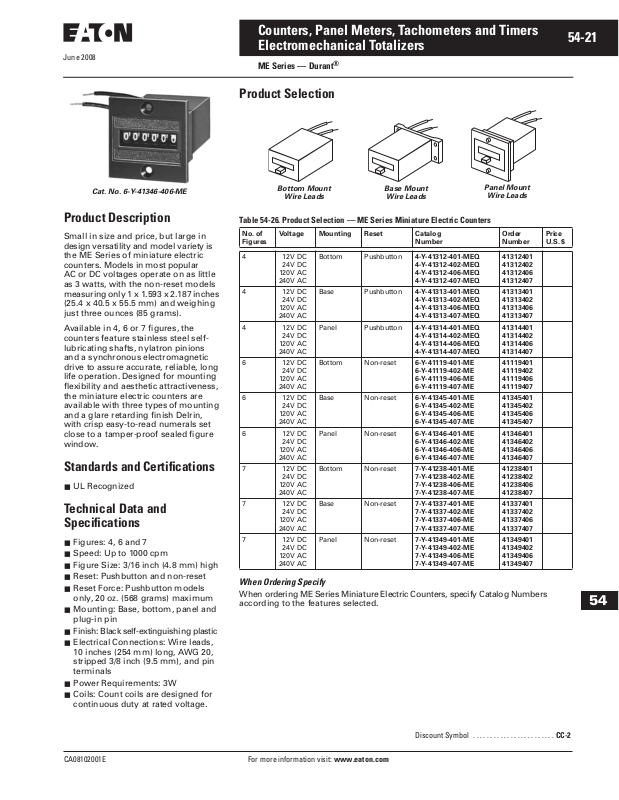

Cat. No. 6-Y-41346-406-ME
Counters, Panel Meters, Tachometers and Timers
Electromechanical Totalizers
ME Series — Durant
Product Selection
®
54-21
Product Description
Small in size and price, but large in
design versatility and model variety is
the ME Series of miniature electric
counters. Models in most popular
AC or DC voltages operate on as little
as 3 watts, with the non-reset models
measuring only 1 x 1.593 x 2.187 inches
(25.4 x 40.5 x 55.5 mm) and weighing
just three ounces (85 grams).
Available in 4, 6 or 7 figures, the
counters feature stainless steel selflubricating shafts, nylatron pinions
and a synchronous electromagnetic
drive to assure accurate, reliable, long
life operation. Designed for mounting
flexibility and aesthetic attractiveness,
the miniature electric counters are
available with three types of mounting
and a glare retarding finish Delrin,
with crisp easy-to-read numerals set
close to a tamper-proof sealed figure
window.
Standards and Certifications
■ UL Recognized
Technical Data and
Specifications
■ Figures: 4, 6 and 7
■ Speed: Up to 1000 cpm
■ Figure Size: 3/16 inch (4.8 mm) high
■ Reset: Pushbutton and non-reset
■ Reset Force: Pushbutton models
only, 20 oz. (568 grams) maximum
■ Mounting: Base, bottom, panel and
plug-in pin
■ Finish: Black self-extinguishing plastic
■ Electrical Connections: Wire leads,
10 inches (254 mm) long, AWG 20,
stripped 3/8 inch (9.5 mm), and pin
terminals
■ Power Requirements: 3W
■ Coils: Count coils are designed for
continuous duty at rated voltage.
Table 54-26. Product Selection — ME Series Miniature Electric Counters
No. of
Figures
4 12V DC
4 12V DC
4 12V DC
6 12V DC
6 12V DC
6 12V DC
7 12V DC
7 12V DC
7 12V DC
Voltage Mounting Reset Catalog
24V DC
120V AC
240V AC
24V DC
120V AC
240V AC
24V DC
120V AC
240V AC
24V DC
120V AC
240V AC
24V DC
120V AC
240V AC
24V DC
120V AC
240V AC
24V DC
120V AC
240V AC
24V DC
120V AC
240V AC
24V DC
120V AC
240V AC
Bottom Pushbutton 4-Y-41312-401-MEQ
Base Pushbutton 4-Y-41313-401-MEQ
Panel Pushbutton 4-Y-41314-401-MEQ
Bottom Non-reset 6-Y-41119-401-ME
Base Non-reset 6-Y-41345-401-ME
Panel Non-reset 6-Y-41346-401-ME
Bottom Non-reset 7-Y-41238-401-ME
Base Non-reset 7-Y-41337-401-ME
Panel Non-reset 7-Y-41349-401-ME
Number
4-Y-41312-402-MEQ
4-Y-41312-406-MEQ
4-Y-41312-407-MEQ
4-Y-41313-402-MEQ
4-Y-41313-406-MEQ
4-Y-41313-407-MEQ
4-Y-41314-402-MEQ
4-Y-41314-406-MEQ
4-Y-41314-407-MEQ
6-Y-41119-402-ME
6-Y-41119-406-ME
6-Y-41119-407-ME
6-Y-41345-402-ME
6-Y-41345-406-ME
6-Y-41345-407-ME
6-Y-41346-402-ME
6-Y-41346-406-ME
6-Y-41346-407-ME
7-Y-41238-402-ME
7-Y-41238-406-ME
7-Y-41238-407-ME
7-Y-41337-402-ME
7-Y-41337-406-ME
7-Y-41337-407-ME
7-Y-41349-402-ME
7-Y-41349-406-ME
7-Y-41349-407-ME
Order
Number
41312401
41312402
41312406
41312407
41313401
41313402
41313406
41313407
41314401
41314402
41314406
41314407
41119401
41119402
41119406
41119407
41345401
41345402
41345406
41345407
41346401
41346402
41346406
41346407
41238401
41238402
41238406
41238407
41337401
41337402
41337406
41337407
41349401
41349402
41349406
41349407
When Ordering Specify
When ordering ME Series Miniature Electric Counters, specify Catalog Numbers
according to the features selected.
Price
U.S. $
54
CA08102001E For more information visit: www.eaton.com
Discount Symbol . . . . . . . . . . . . . . . . . . . . . . . . CC-2
54-22
Counters, Panel Meters, Tachometers and Timers
Electromechanical Totalizers
ME Series — Durant
Dimensions
®
June 2008
Panel Mounted
Base Mounted
Bottom Mounting
Bottom Mounted
Figure 54-36. ME Series Counter — Approximate Dimensions
Table 54-27. ME Series Counter — Approximate Dimensions in Inches (mm)
4 Figure Pushbutton Reset Counters 6 and 7 Figure Non-reset Counters
Dimension Inches (mm) Dimension Inches (mm)
A
B
C
D
E
F
G
H
J
K
L
M
N
P
Q
R
S
T
1.00 (25.4)
1.60 (40.6)
2.64 (67.1)
2.19 (55.6)
1.80 (45.7)
1.80 (45.7)
1.40 (35.6)
.69 (17.5)
1.88 (47.8)
.50 (12.7)
.49 (12.4)
.94 (23.9)
2.45 (62.2)
2.45 (62.2)
.45 (11.4)
.63 (16.0)
.19 (4.8)
.68 (17.3)
A
B
C
D
E
F
G
H
J
K
L
M
N
P
Q
R
S
T
1.00 (25.4)
1.60 (40.6)
2.38 (60.5)
2.19 (55.6)
1.80 (45.7)
1.80 (45.7)
1.40 (35.6)
.69 (17.5)
1.88 (47.8)
.50 (12.7)
.49 (12.4)
.94 (23.9)
2.19 (55.6)
2.19 (55.6)
.45 (11.4)
.63 (16.0)
.19 (4.8)
.88 (22.4)
54
Table 54-28. Recommended Panel Mount Cut-Outs in Inches (mm)
4 Figure Counters 6 and 7 Figure Counters
Pushbutton Reset Non-reset
1.72 x 1.11
(43.7 x 28.2)
1.72 x 1.11
(43.7 x 28.2)
For more information visit: www.eaton.com CA08102001E
