ac/dc Powered, 2-Line LCD
•
6-digit, LCD display
•
8.5 mm (0.34”) high digits
•
1 preset
•
Output:
– SPDT 5 A 250 Vac
– 2 A 30 Vdc
•
12 Vdc, 100 mA
•
Removable screw terminals
•
94 – 240 Vac, 12 – 24 Vdc
input power
•
NEMA 4/IP65
•
UL, cUL recognized
•
CE marked
Count Controls are counters that provide output signal(s)
at preset count value(s). Typical applications include
cut-to-length, batching, filling, mixing and dispensing.
Available from Durant are a variety of count controls in different
sizes, display types and feature sets.

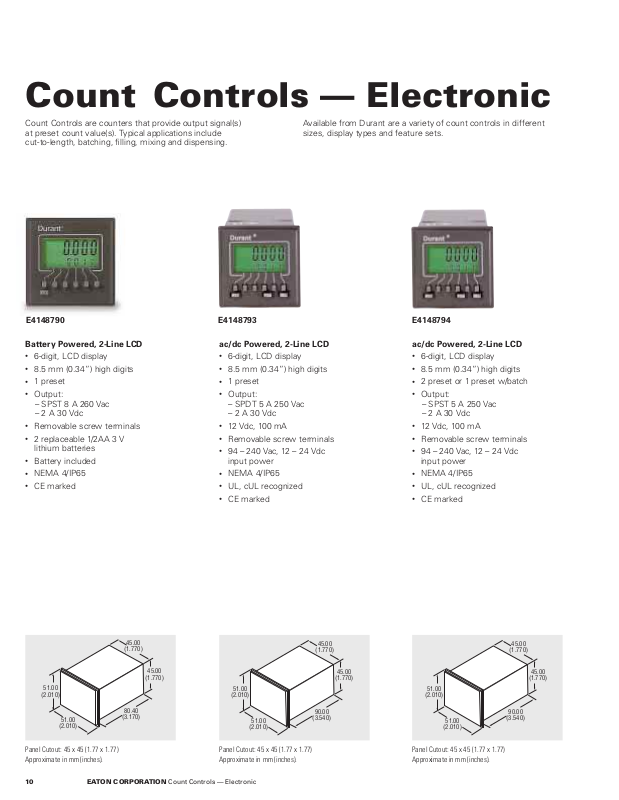

Count Controls — Electronic
E4148793
ac/dc Powered, 2-Line LCD
•
6-digit, LCD display
•
8.5 mm (0.34”) high digits
•
2 preset or 1 preset w/batch
•
Output:
– SPST 5 A 250 Vac
– 2 A 30 Vdc
•
12 Vdc, 100 mA
•
Removable screw terminals
•
94 – 240 Vac, 12 – 24 Vdc
input power
•
NEMA 4/IP65
•
UL, cUL recognized
•
CE marked
E4148790 E4148794
Battery Powered, 2-Line LCD
•
6-digit, LCD display
•
8.5 mm (0.34”) high digits
•
1 preset
•
Output:
– SPST 8 A 260 Vac
– 2 A 30 Vdc
•
Removable screw terminals
•
2 replaceable 1/2AA 3 V
lithium batteries
•
Battery included
•
NEMA 4/IP65
•
CE marked
Panel Cutout: 45 x 45 (1.77 x 1.77)
Approximate in mm (inches).
Panel Cutout: 45 x 45 (1.77 x 1.77)
Approximate in mm (inches).
Panel Cutout: 45 x 45 (1.77 x 1.77)
Approximate in mm (inches).
10 EATON CORPORATION Count Controls — Electronic
45.00
(1.770)
45.00
(1.770)
51.00
(2.010)
80.40
51.00
(2.010)
(3.170)
51.00
(2.010)
51.00
(2.010)
45.00
(1.770)
90.00
(3.540)
45.00
(1.770)
51.00
(2.010)
51.00
(2.010)
45.00
(1.770)
90.00
(3.540)
45.00
(1.770)
