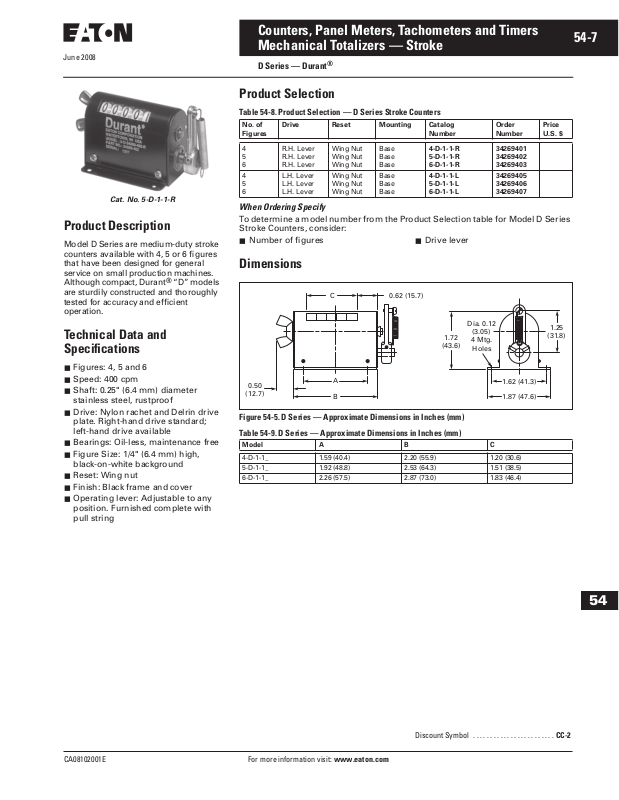

Durant-Eaton D Series Data Sheet
June 2008
Cat. No. 5-D-1-1-R
Product Description
Model D Series are medium-duty stroke
counters available with 4, 5 or 6 figures
that have been designed for general
service on small production machines.
Although compact, Durant
®
“D” models
are sturdily constructed and thoroughly
tested for accuracy and efficient
operation.
Technical Data and
Specifications
■ Figures: 4, 5 and 6
■ Speed: 400 cpm
■ Shaft: 0.25" (6.4 mm) diameter
stainless steel, rustproof
■ Drive: Nylon rachet and Delrin drive
plate. Right-hand drive standard;
left-hand drive available
■ Bearings: Oil-less, maintenance free
■ Figure Size: 1/4" (6.4 mm) high,
black-on-white background
■ Reset: Wing nut
■ Finish: Black frame and cover
■ Operating lever: Adjustable to any
position. Furnished complete with
pull string
Counters, Panel Meters, Tachometers and Timers
Mechanical Totalizers — Stroke
D Series — Durant
Product Selection
Table 54-8. Product Selection — D Series Stroke Counters
No. of
Figures
4
5
6
4
5
6
Drive Reset Mounting Catalog
R.H. Lever
R.H. Lever
R.H. Lever
L.H. Lever
L.H. Lever
L.H. Lever
When Ordering Specify
To determine a model number from the Product Selection table for Model D Series
Stroke Counters, consider:
■ Number of figures ■ Drive lever
Dimensions
0.50
(12.7)
Figure 54-5. D Series — Approximate Dimensions in Inches (mm)
Table 54-9. D Series — Approximate Dimensions in Inches (mm)
Model A B C
4-D-1-1_ 1.59 (40.4) 2.20 (55.9) 1.20 (30.6)
5-D-1-1_ 1.92 (48.8) 2.53 (64.3) 1.51 (38.5)
6-D-1-1_ 2.26 (57.5) 2.87 (73.0) 1.83 (46.4)
®
Wing Nut
Wing Nut
Wing Nut
Wing Nut
Wing Nut
Wing Nut
C 0.62 (15.7)
A
B
Base
Base
Base
Base
Base
Base
Number
4-D-1-1-R
5-D-1-1-R
6-D-1-1-R
4-D-1-1-L
5-D-1-1-L
6-D-1-1-L
1.72
(43.6)
Dia. 0.12
(3.05)
4 Mtg.
Holes
Order
Number
34269401
34269402
34269403
34269405
34269406
34269407
1.62 (41.3)
1.87 (47.6)
Price
U.S. $
1.25
(31.8)
54-7
CA08102001E For more information visit: www.eaton.com
54
Discount Symbol . . . . . . . . . . . . . . . . . . . . . . . . CC-2
