INSTRUCTION MANUAL

Please read this manual carefully before operating this plane.

Page 2

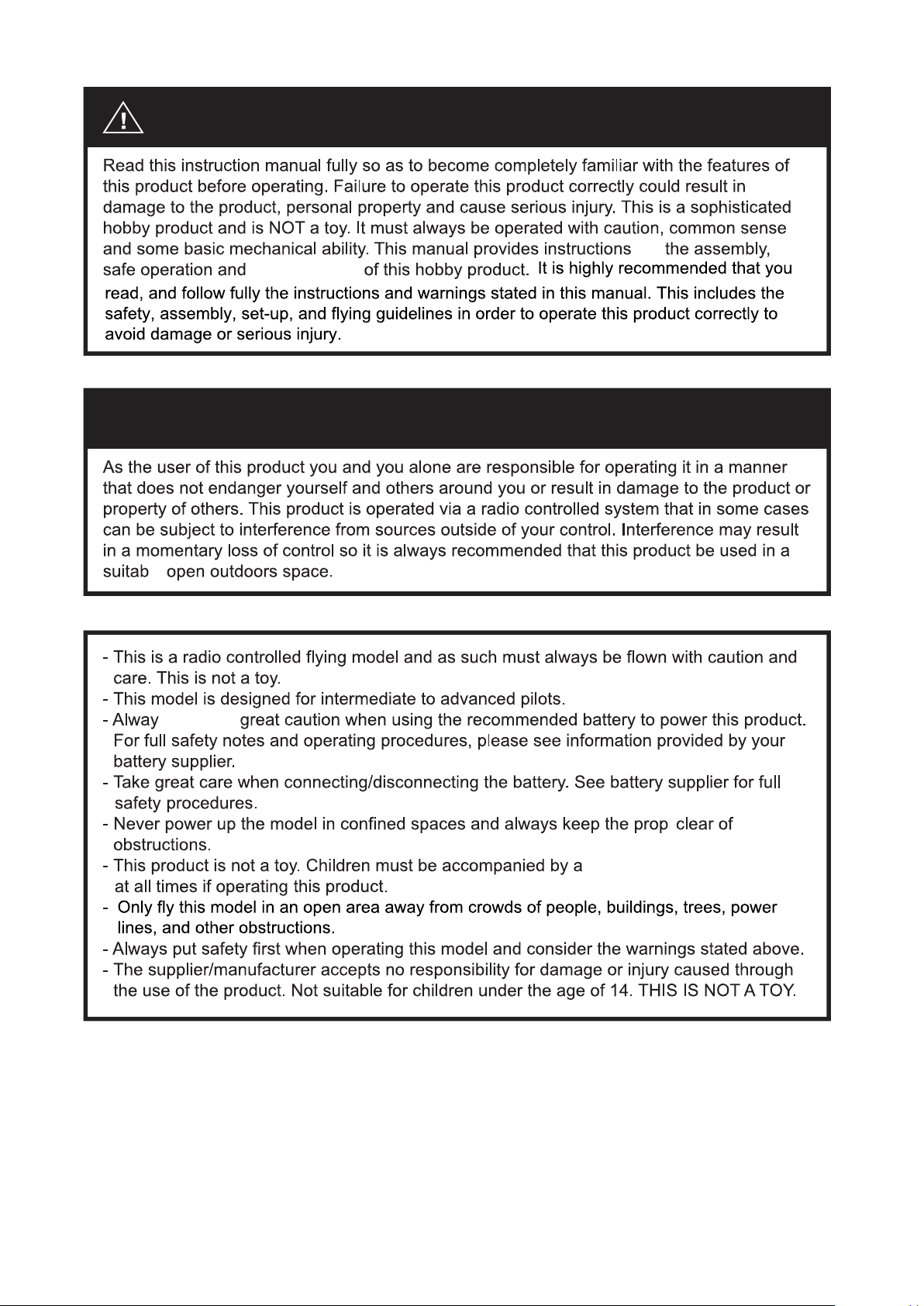

WARNING

maintenance

SAFETY PRECAUTIONS

exercise

capable and responsible adult

Page 3

CONTENTS

Introduction 1

Specifications 1

Content 2

Assembly (PNF) 3-7

Setting Up Your Model 8-10

Tundra Options 11

Floats 11-12

FPV Canopy 13

Tow line mounting point 14

Optional Candy Dropper 14

Optional Skis 15

Model Flying Precautions 16

Pre-flight Checks 16

Flying The Tundra 17

Tundra Tips 18

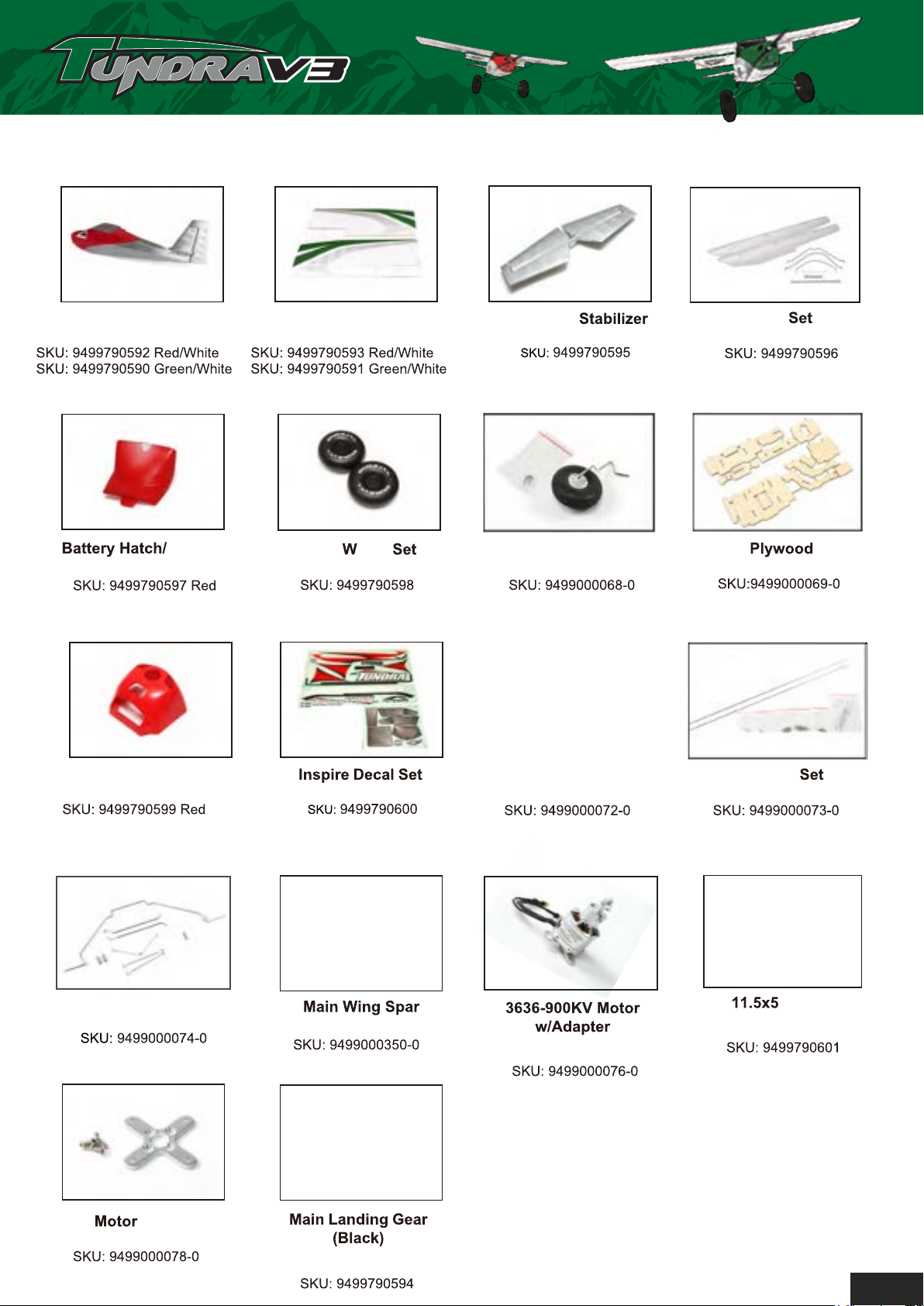

Spare Parts Listing

Trouble Shooting 2

Contact

Notes 2 -2

Page 4

INTRODUCTION

Thank you for purchasing the Durafly Tundra V3. After the incredible success of the Tundra V1 and V2, Durafly has decided to produce yet another version with even more improvements to bring this model bang up to date. The V3 is now a pure 4S set-up so it has power in abundance to make your flying even more fun than it was before (if that is at all possible!). Other changes/ improvements are daylight bright LEDs (so bright they are suitable for dawn to dusk flying), a reinforced nylon prop that is more efficient, and better balanced, a return to the classic EPO foam wheels which are lighter, and stronger, and hex-head bolts and screws throughout. The V3 is available in a "Classic" green color scheme, and also a new red and silver scheme Durafly has called the "Inspire". The reason being is that the original Tundra was "Inspired" by the "Highlander" full-size SuperStol experimental airplane.

So if you are looking for flying with no limits then you’ve found it with the Tundra V3. Whether it’s flying from rough bush fields, water, snow, or sand, FPV flying, aerobatics, glider towing, candy dropping, or just good old fashioned super STOL slow flying, then the Tundra V3 takes it all on with ease. Its lightweight yet rugged construction, powerful brushless set-up, and perfectly harmonized design give you an instant feeling of confidence on the sticks as quickly as it puts a smile on your face.

The Tundra V3 also includes the revolutionary Aerostar RVS (reverse function system) G2 ESC, this ESC offers instantaneous reversing, so there is now no need to stop the prop before reversing. This makes it perfect when using the Tundra V3 on the water as a floatplane, but it is also great fun in the air, and really good for short landings, just ensure the prop is on nice and tight!!

Simply put, the Tundra V3 is even more fun to fly than previous versions, and you will be flying even quicker as there is now even less assembly on the V3. With either the included floats, tow mounting point, and FPV canopy, or with the optional skis and candy dropper, the choice is yours regarding how you put your Tundra V3 to work.

SPECIFICATIONS

•

• Wingspan: 1300mm (51")

• Length: 920mm (36.25")

• Wing Area: 26dm2

• Flying Weight: 1150g

• Number of Channels: 6 (throttle, ailerons, elevator, rudder, flaps, reverse (RVS))

Motor: 3636-900KV brushless outrunner

• ESC: Aerostar G2 40amp Brushless ESC w/reverse

• Servos: 6 x 9g

• Prop: Durafly nylon reinforced 11.5 x 5

• Battery Suggestions: 1800-2200mAh, 4S, 20-40C

Page 5

CONTENTS

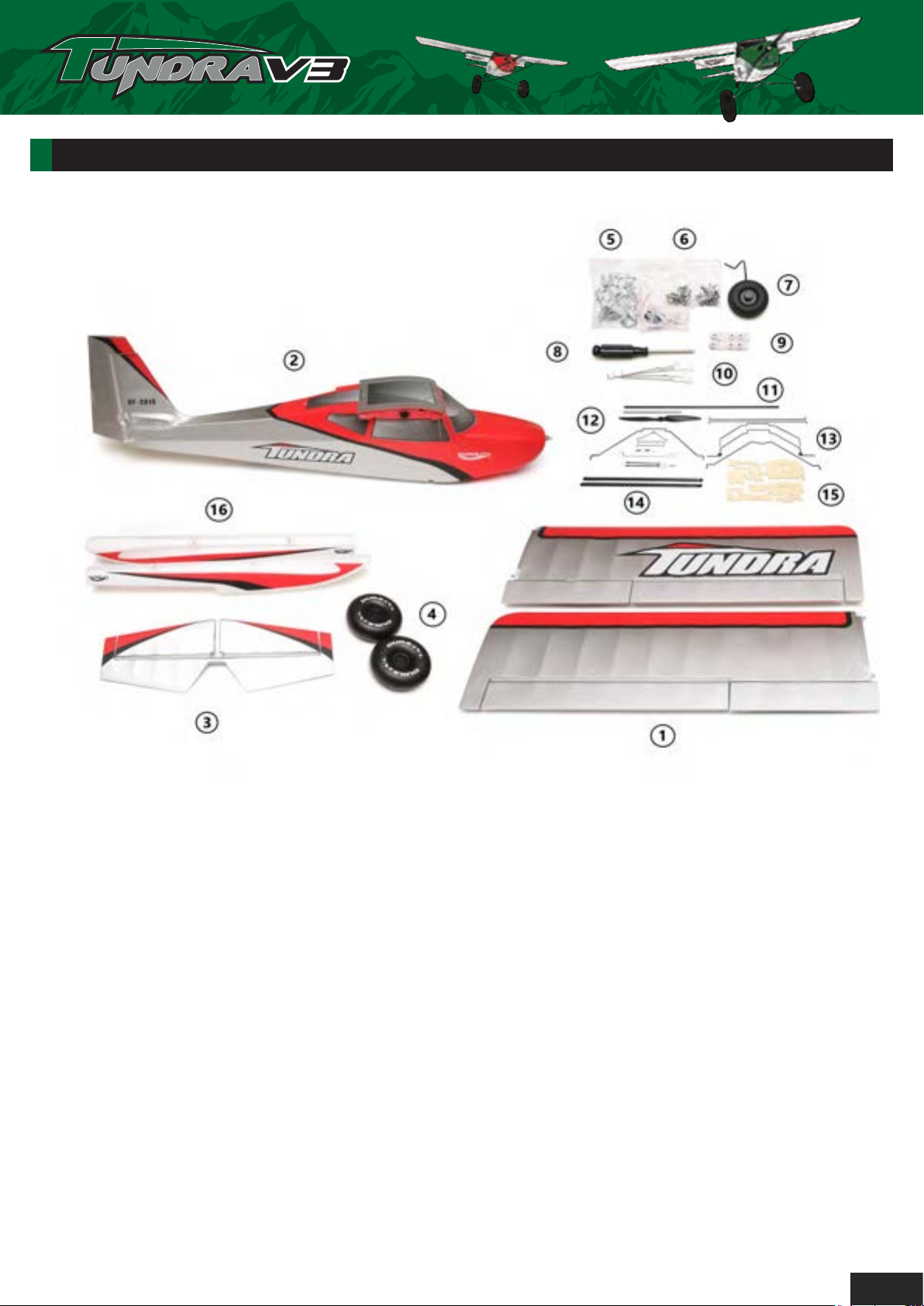

1. Main wing halves

2. Fuselage

3. Horizontal stabilizer

4. EPO main wheels

Vortex

generators

6. Hex bolts, screws, and linkages

7. Tailwheel

8. Hex screwdriver

9. Main landing gear straps

10. Linkages

11. Carbon wing joiners

12. 11.5"x5" nylon reinforced propeller

13. Main landing gear components for wheels, and floats

14. Main wing struts

15. Plywood FPV tray

16. Float set

Page 6

ASSEMBLY (PNF)

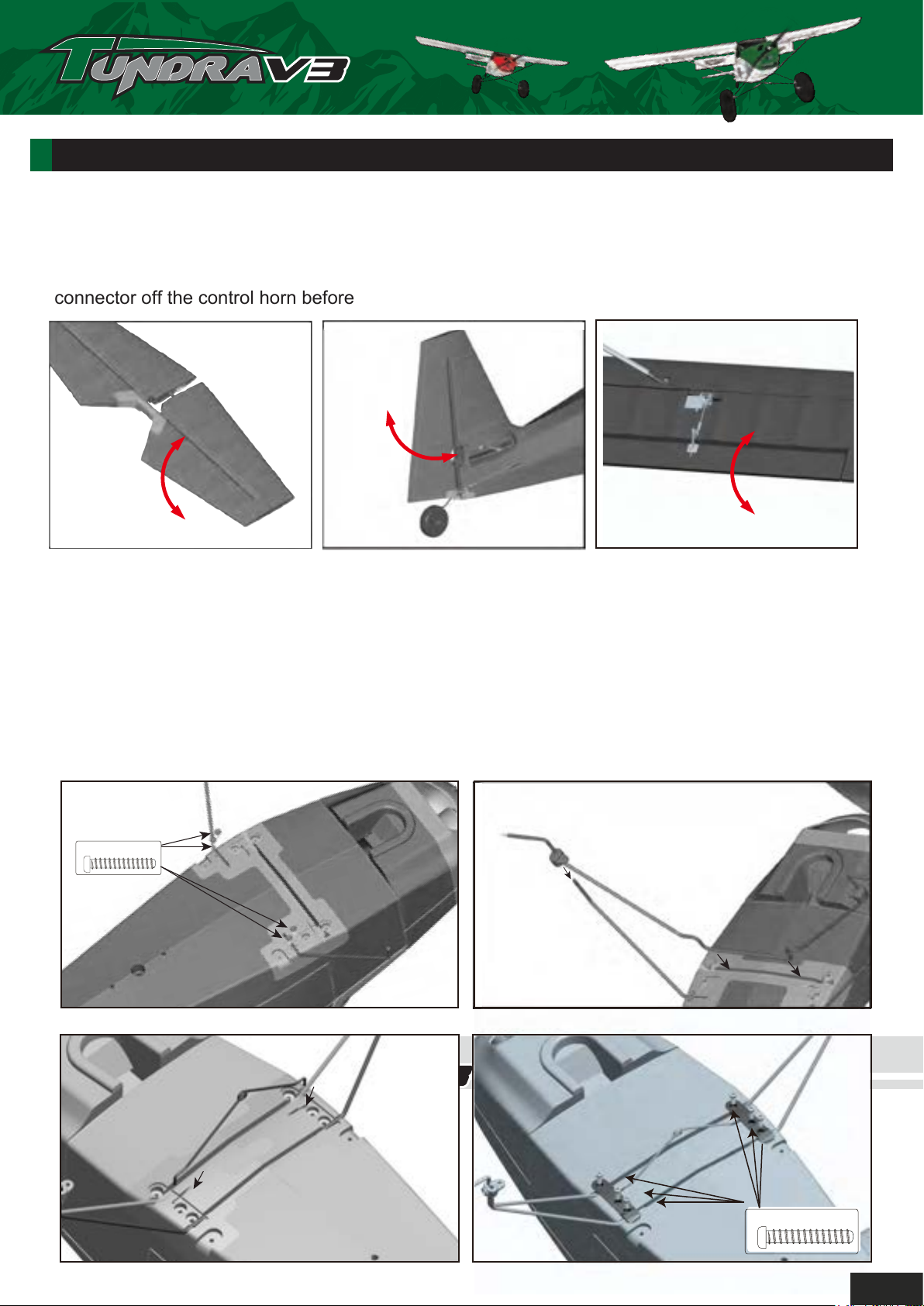

Out of the box your Tundra comes with reinforced foam hinges. However, before you start the assembly, each hinge line must be flexed back and forth 5 to 6 times to reduce the tension and load on the servo. Do this to all the control surfaces before continuing. The aileron pushrods are factory installed, so you will need to use some pliers, or better still, ball-link pliers to pop the ball-link connector off the control horn before you do this.

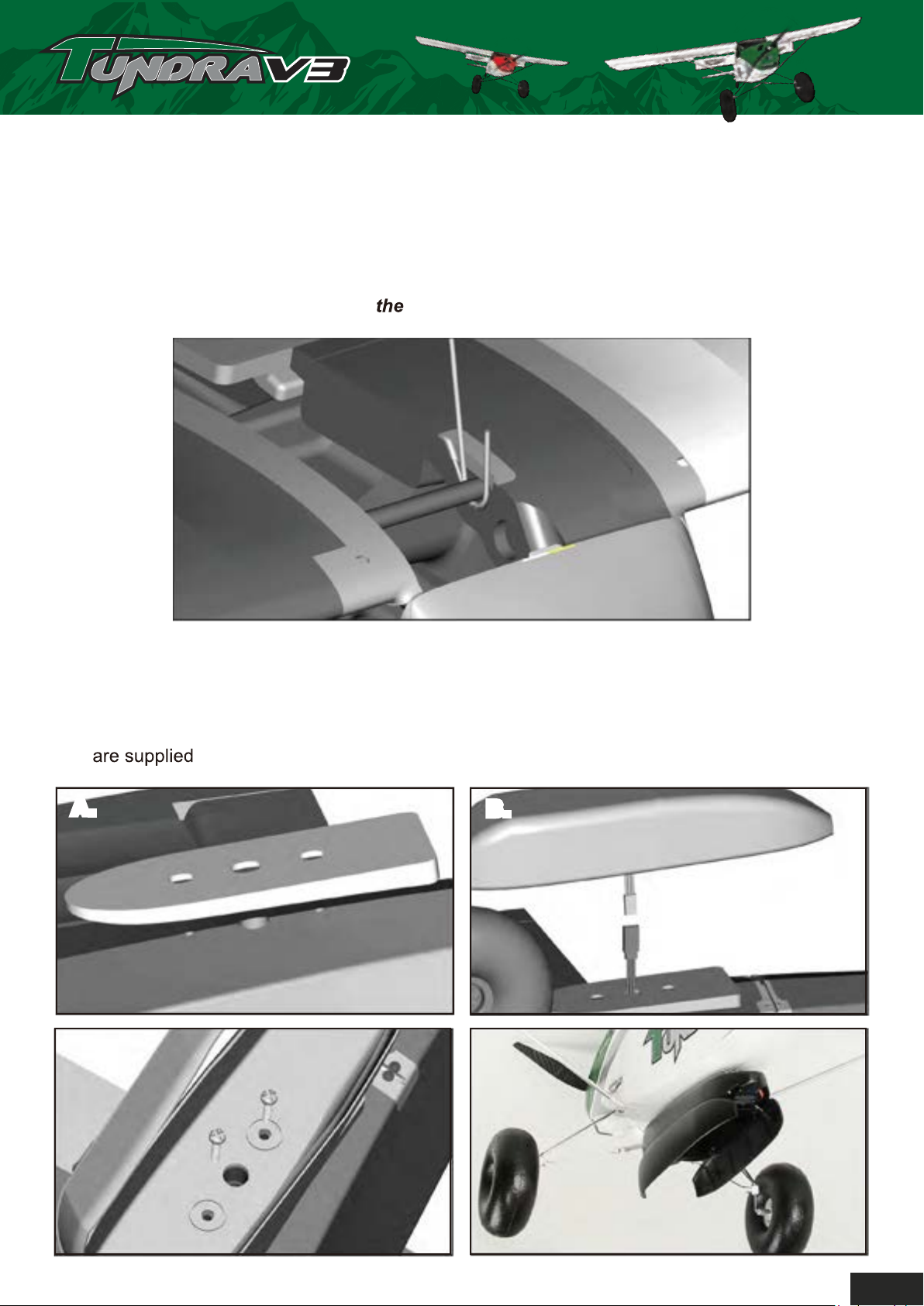

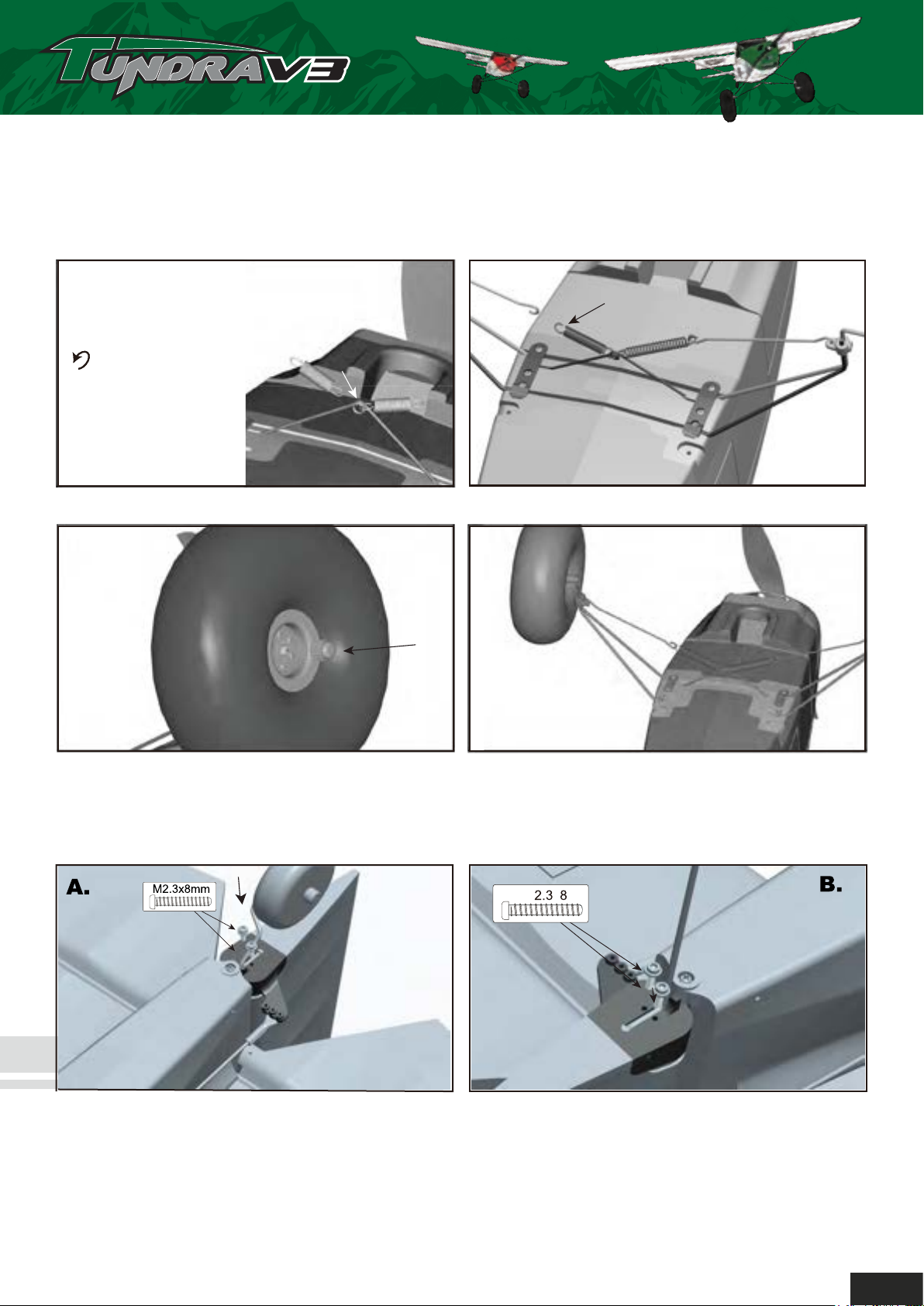

2A.To mount the undercarriage to the fuselage, start by inserting and securing the two rear braces with

the supplied M2.5x8mm hex screws (A). Now insert the main gear wire into the fuselage slot and slide the plastic brace keepers over the rear braces (B) to bring these two parts together. Insert the spring support wire between the main gear wire (C) . Use secure the main gear and spring support wire in place with the plastic undercarriage straps (D).

the supplied M2.5x8mm hex bolts to

Notes: Ensure the main gear rakes forward at stage B. Note left (L) and right (R) marked plastic straps and install accordingly during stage D.

M2.5x8mm

Page 7

2B.Hook the supplied coil springs through the center ring of the spring support wire and the wire cross

braces through the ring of the plastic brace keepers (E) to complete the sprung cross bracing assembly (F). Now slide the main wheels onto the axle and secure in place with the plastic grip nut (G). Assembly of the undercarriage is now complete (H).

E. F.

G. H.

3.Insert the tail wheel assembly into the plastic slot on the bottom of the rudder and secure with two hex M2.3x8mm self-tapping screws (A). The same method is used when mounting the water rudder (B).

M x m m

4.Insert one half of the carbon tail spar into one of the horizontal tail pieces before sliding this half into the tail slot on the fuselage. Now install the remaining tail piece (A). Secure both halves in place with the supplied M2.3x8mm hex self-tapping screws and join the elevator with the single M2.3x8mm hex self-tapping screw (B). This installation is self aligning, but do double check to ensure equal aligment to the vertical stabilizer and wing.

Page 8

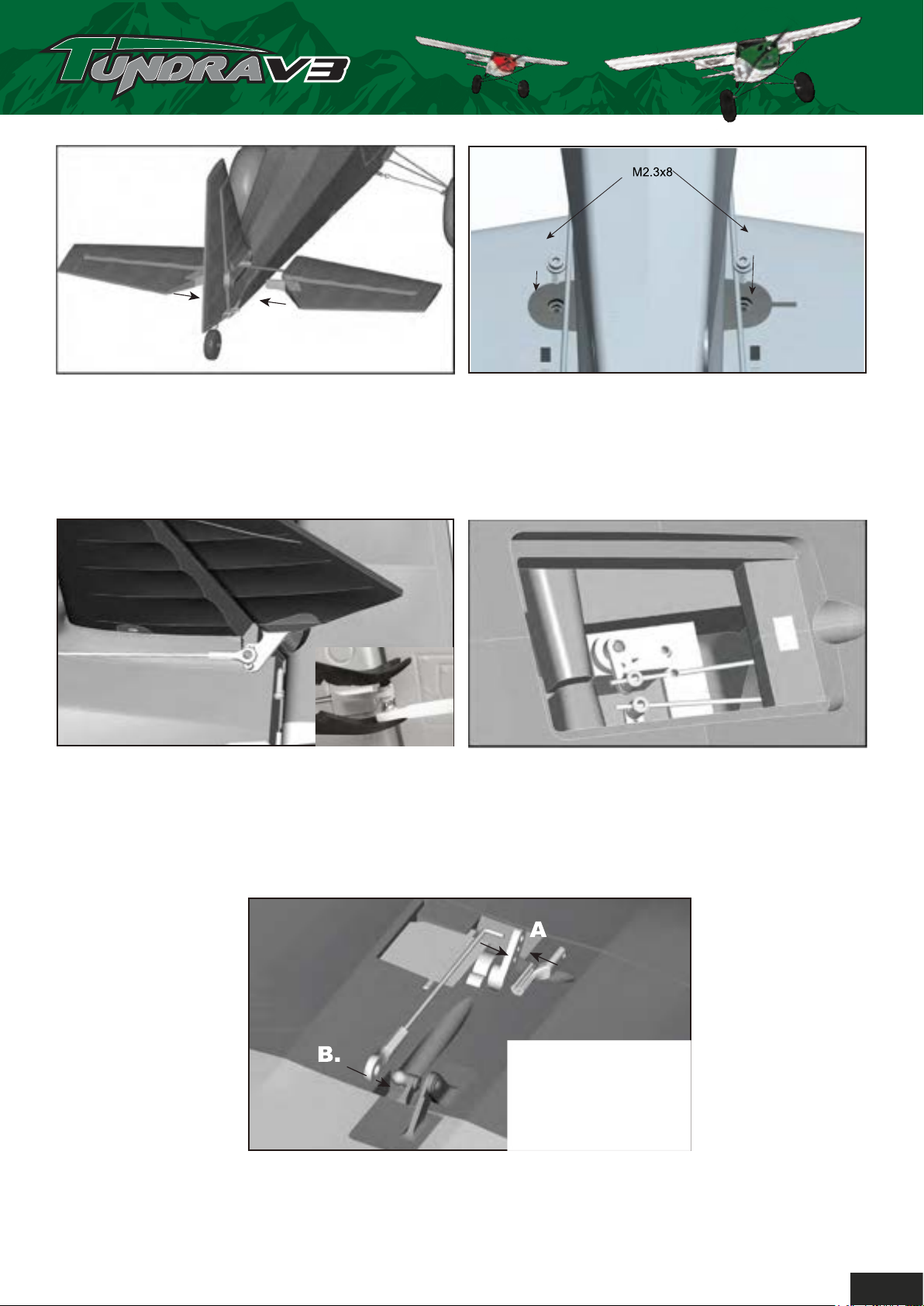

5.Using a pair of pliers (ball-link pliers preferably) connect the elevator push rod to the elevator horn(A). To ensure both the elevator and rudder are neutral (with the servos centered) loosen the grub screw of the piano wire fastener and slide the push rods until both surfaces are neutral.(B) Tighten firmly when done. For added security if you wish, the tail can also be glued in place.

As mentioned earlier in this manual, the aileron pushrods are already installed, but you will still need to attach the flap pushrods. Insert the flap push rod through the servo arm and secure in place with the plastic keeper (A). Now set the flap servo arm as far forwards as possible, then connect the ball-link to the flap horn and adjust so that the flap is in the fully up (B).

(no flap) position

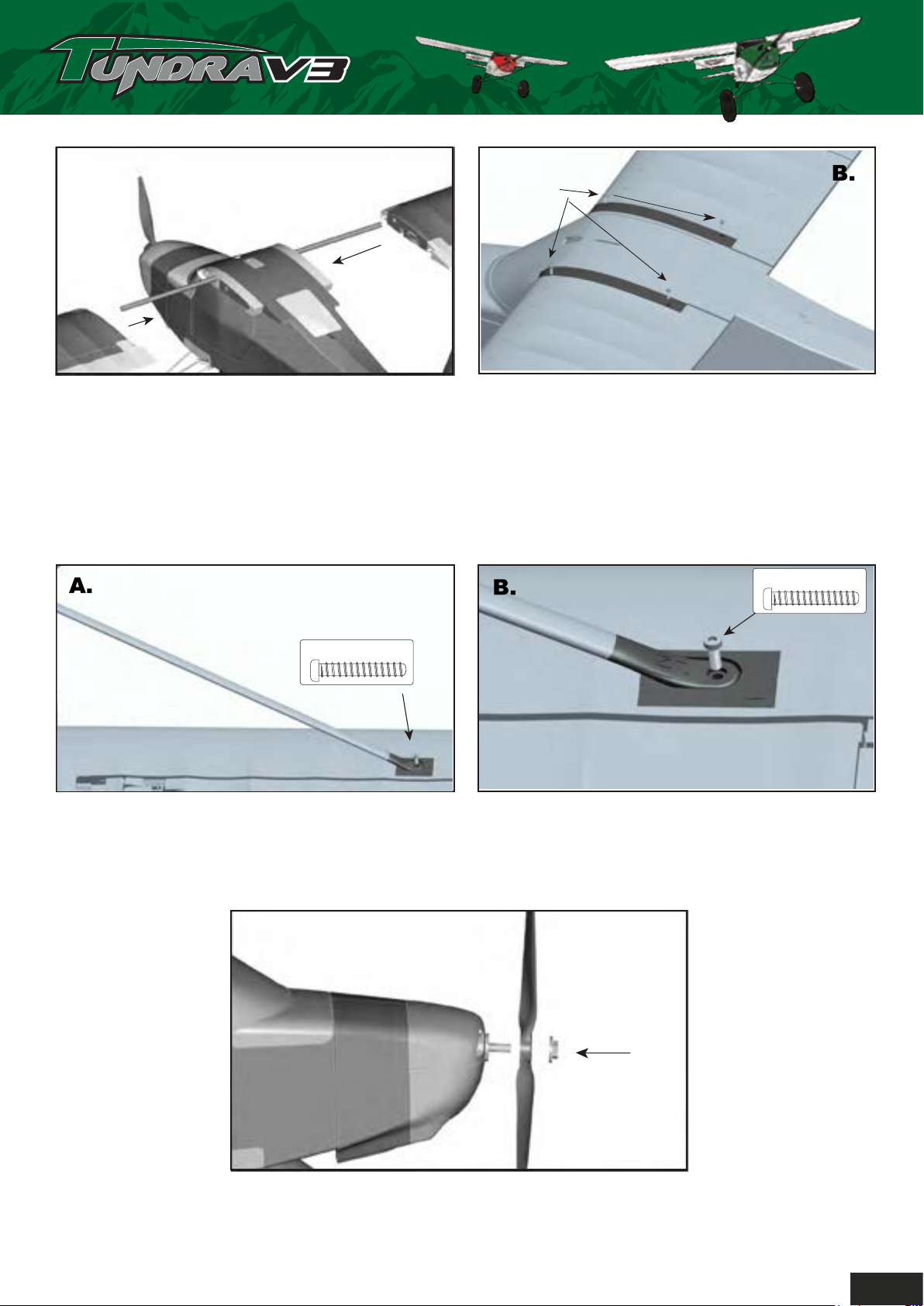

Insert the wing spar into the fuselage at the wing root (A) ensuring it is centered. Slide one wing half at a time onto the spar, pushing each panel firmly into place on the fuselage (A) and secure

panel with the provided M2.5x8mm hex bolts (B). Take care to ensure the wing servo PCB

each is not damaged when connecting the wing to the fuselage.

Page 9

M2.5x8m m

Notes: For convenience clear tape alone can be used to secure the wing to the fuselage by running the tape along the entire span of the wing join. However this is not recommended if you intend to fly the Tundra aggressively.

Attach each wing strut to their respective sides (A), both struts are marked ‘L’ and ‘R’ to note

left and right hand sides if looking forward from the cockpit. Secure firmly in place using the M2.5x8mm hex bolts supplied (B)..

M2.5x8mm

The final stage of assembly is to mount the Durafly 11.5”x5” nylon reinforced propeller using the

prop nut as shown (A). However at this stage it is HIGHLY recommended that all set-up and final checks of the model should be done before finally installing the prop firmly in place.

Note: The propeller should be balanced out of the box, however it is recommended a final balance check be carried out before attaching to the model. A well balanced prop will greatly increase all round performance and efficiency of the model in flight..

6A.7

Page 10

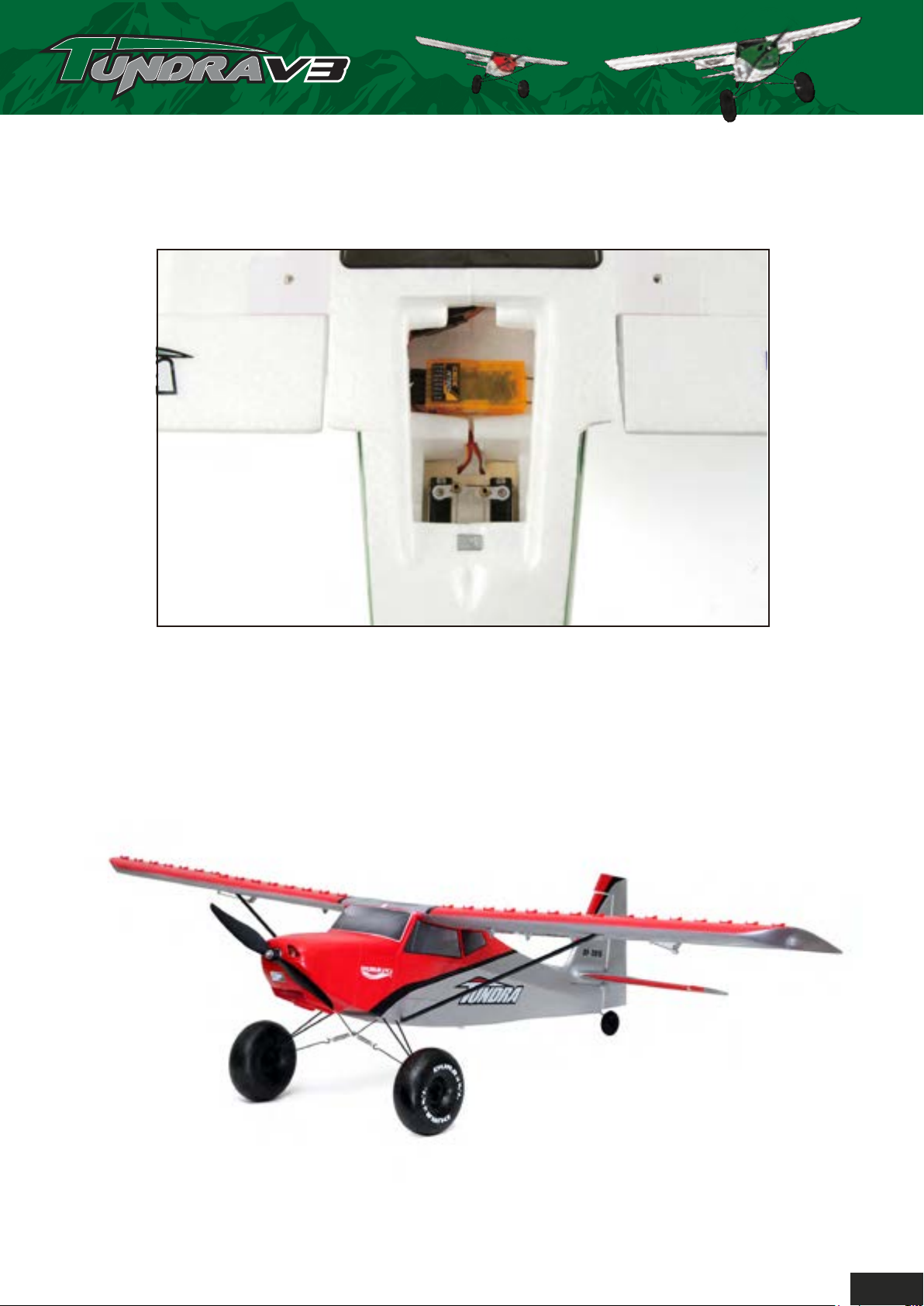

10.Install your choice of 6-channel receiver (OrangeRx R620X shown) using double sided foam

tape or hook & loop self adhesive tape in the location shown (A) under the rear fuselage access hatch. Ensure the Rx aerials are held away from the servos.

Congratulations, basic assembly of your Tundra V3 is now complete.

Please perform a final check on all screws, bolts and components,

ensuring all are secure and firmly in place.

Page 11

Setting Up Your Model:

With your receiver installed and all servos plugged into their corresponding channels, connect the

1. flight battery to the ESC to power up the electronics.

With the model now armed, ensure all servos are centered and all control surfaces are level. If not, adjust by turning the control clevises by hand accordingly until the control surfaces are level as shown.

Note: For safety reasons, it is advised that this is done with the prop removed from the model.

Aileron Elevator Rudder

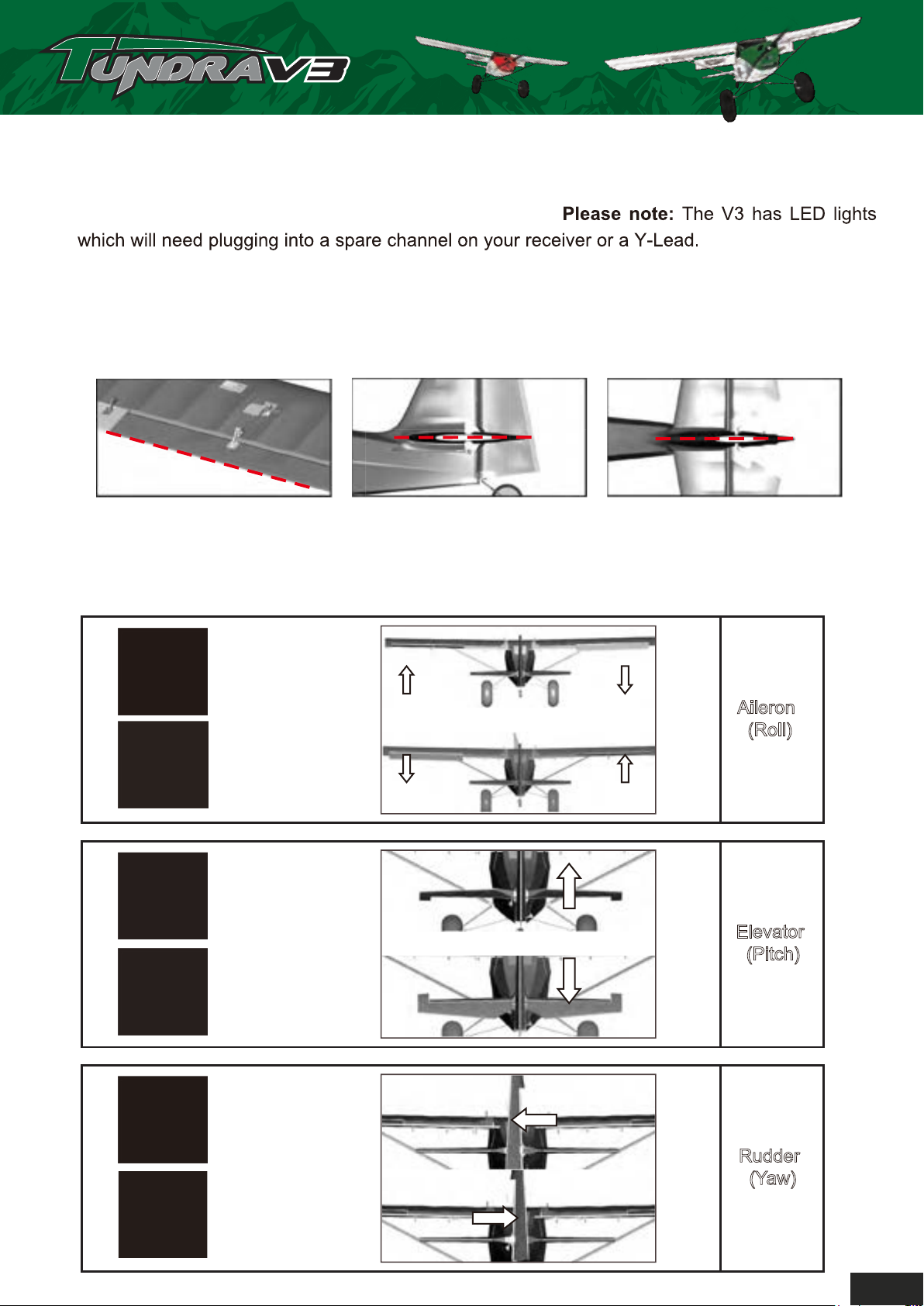

2. Check all control surfaces are moving in the correct direction with the correct stick input (see below).

Roll left

Roll right

Pitch up

Pitch down

Yaw left

Aileron (Roll)

Elevator (Pitch)

Yaw right

Rudder (Yaw)

Page 12

Control throws:

8-14mm

8-12mm

Elevator

Rudder

50-60mm

Aileron

10-20mm

*Elevator: ‘low rates’ 8mm, ‘high rates’ 14mm in either direction from neutral. *Rudder: ‘low rates’ 8mm, ‘high rates’ 12mm in either direction from neutral.

*Ailerons: ‘low rates’ 10mm, ‘high rates’ 20mm in either direction from neutral.

50-60mm

Flaps

45 degrees

90 degrees

Page 13

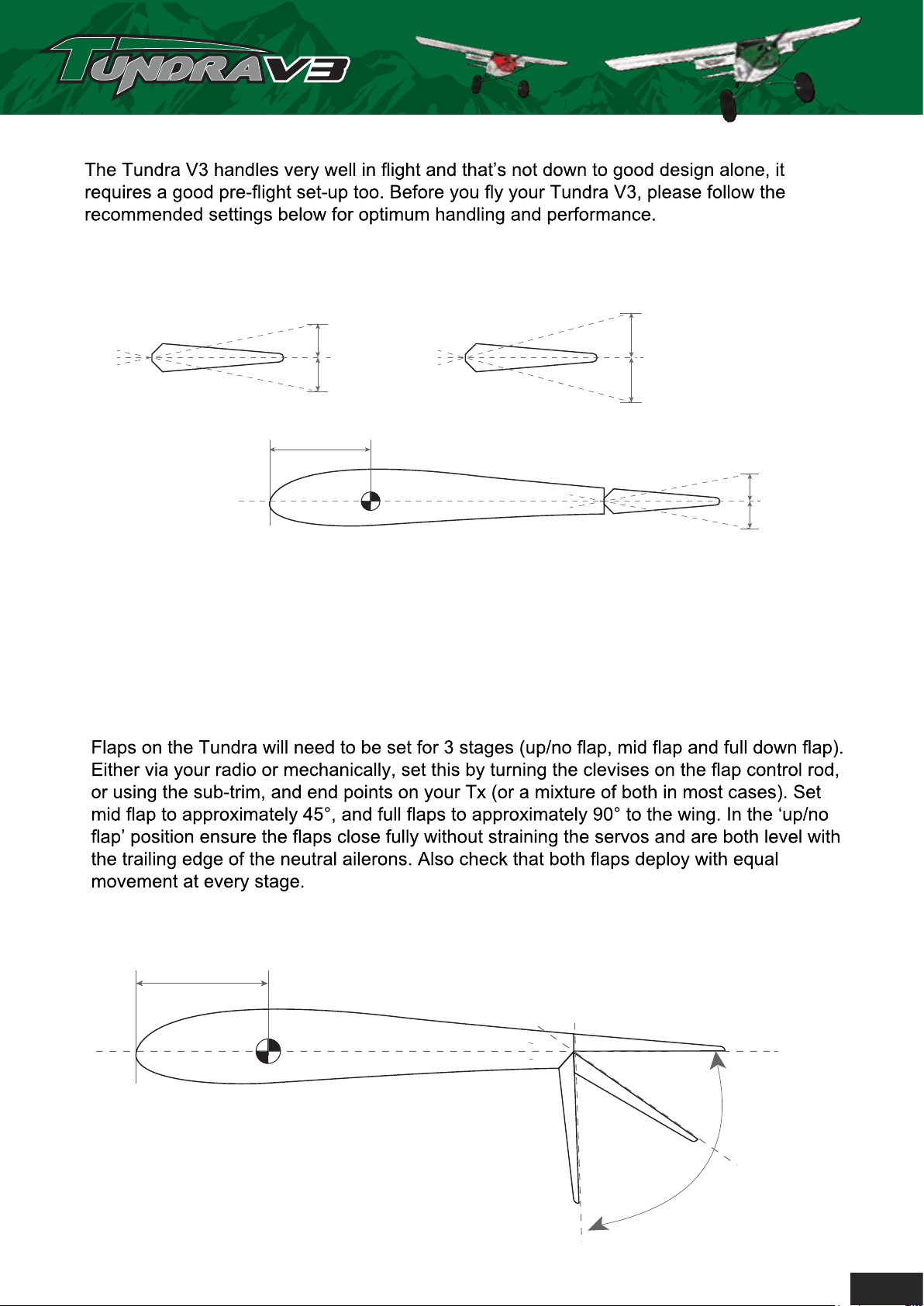

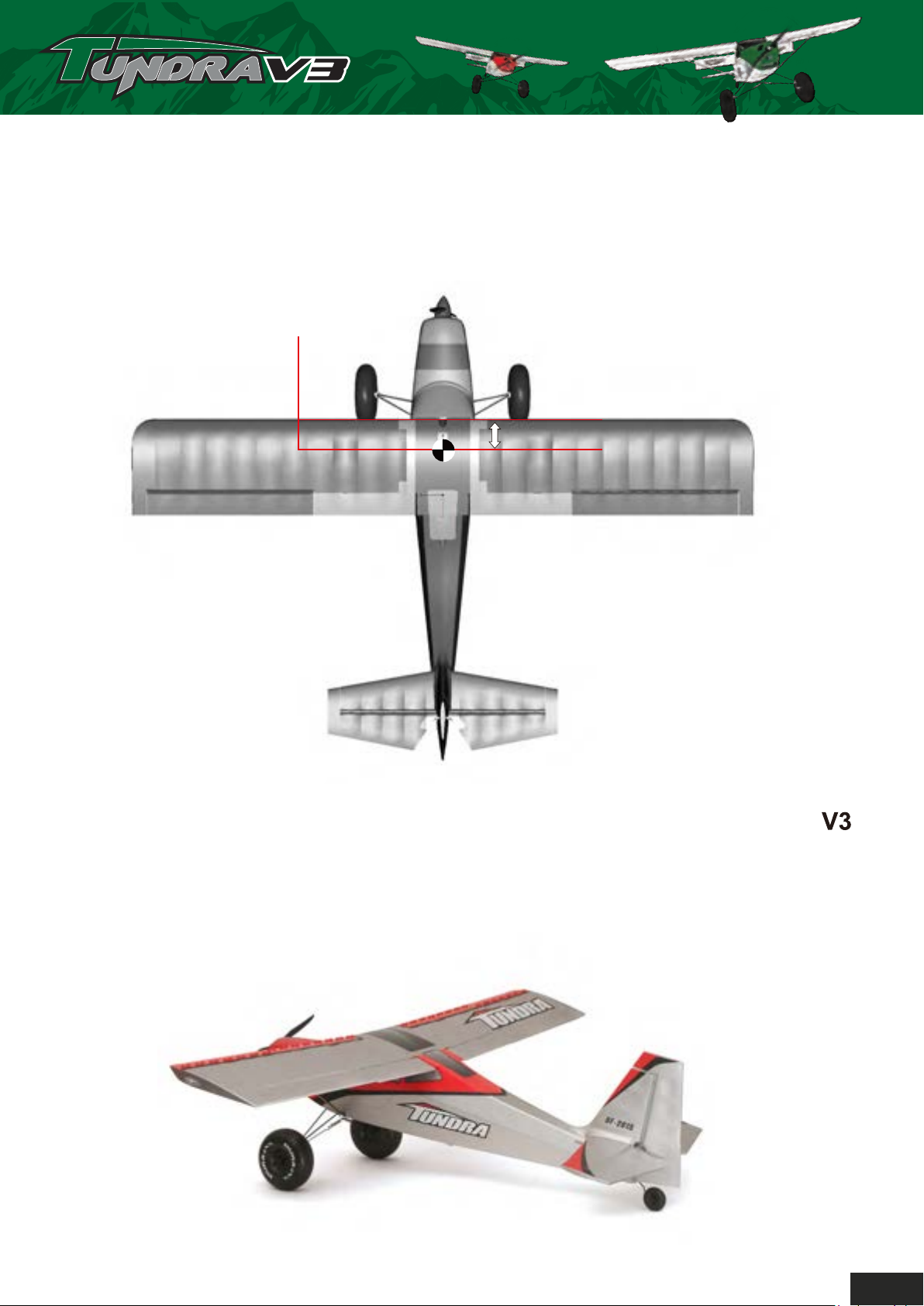

The recommended center of the gravity (CG) for the Tundra V3 is approximately 50-60mm from

the leading edge of the wing. Your Tundra V3 should balance within this range with anything from a 1800mAh - 2200mAh 4S LiPo installed in the battery bay. Your battery can be secured in the battery bay area with the provided hook and loop tape.

CG Location:

50-60mm

CG 50-60mm from leading edge.

With assembly and set-up now complete, your Durafly Tundra

should now be ready for flight. However we recommend your read

and follow the advice given in the following pages of

this manual before flying your model.

Page 14

Tundra Options:

Your Tundra comes with several features available to you during the assembly. Floats , FPV canopy and tow mounting point are all included in the box. Use of a Candy dropper and skis are optional extra’s

Floats

not included. All however are covered in these following pages.

Page 15

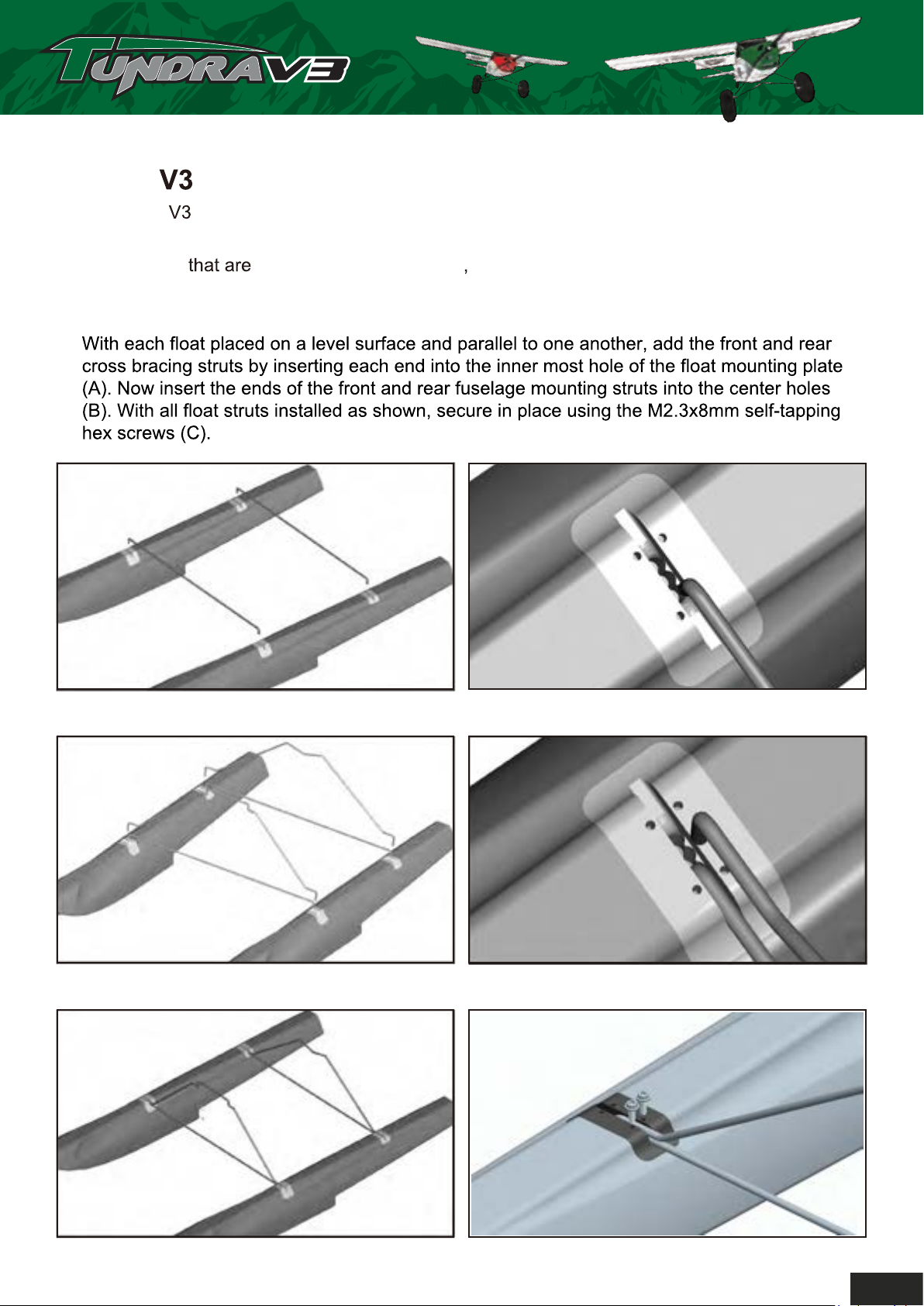

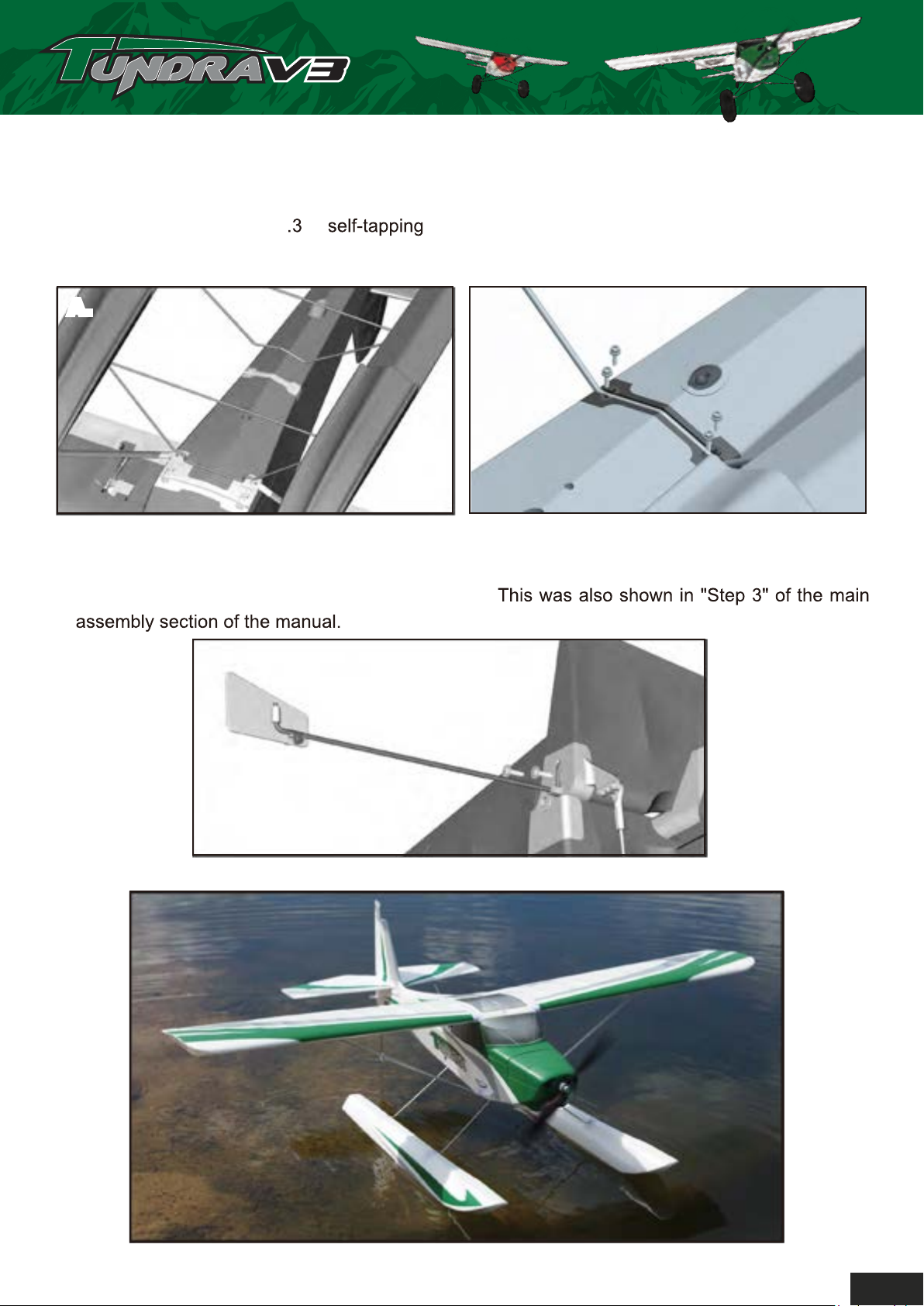

2. With the floats now fully assembled and landing gear completely removed, insert the front fuselage mounting strut into the main gear housing and onto the rear mounting plate (A). Secure the rear with supplied M2 mounting plate and screws.

x8 screws (B) and the front using the original main gear

Although not always required, a water rudder does help with steering in less than calm water

3. conditions. Simply remove the tail wheel and replace with the water rudder (A). Both tail wheel and water rudder mount in exactly the same way.

Page 16

FPV Canopy

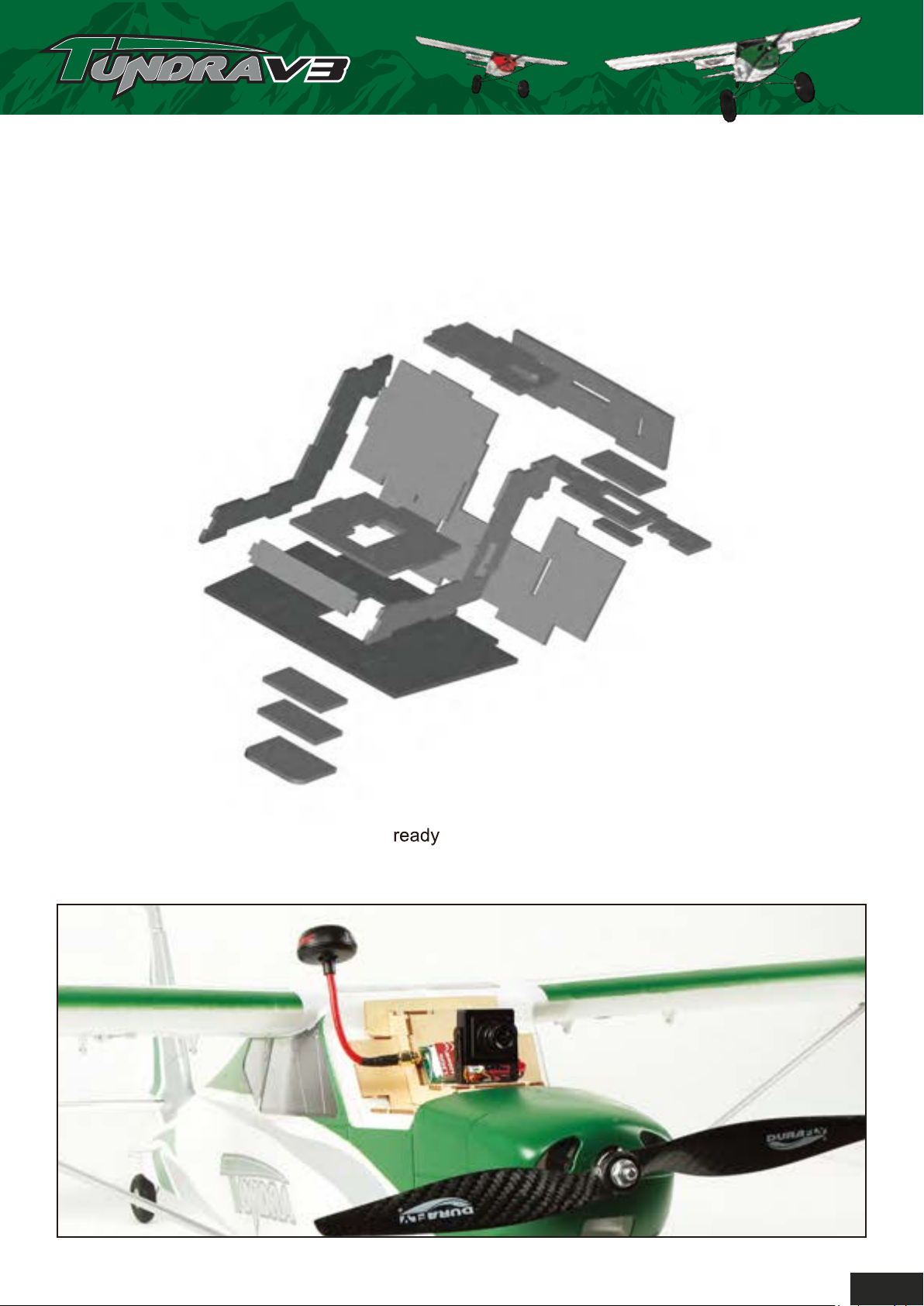

To assemble the plywood FPV canopy you’ll need some CA and no more than 10 minutes to glue it all together. All parts are laser cut and following the below exploded diagram, the assembly should be self-explanatory. Note to allow some time for the glue to cure on the magnet so the bond is as strong as possible. Also be mindful not to let any glue get to the exposed surface of the magnet.

With the canopy now assembled you are However you may wish to follow the simple example shown below.

to install your FPV equipment as you see fit.

Page 17

Tow line mounting point

The built-in tow line hard mounting point gives the Tundra a solid point close to the CG to attach a tow line for gliders etc. The below cutaway shows how the tow line should be inserted and attached to the main spar through the tow line slot.

Note: The model you are towing will need a tow release system of some kind. The hard point on the Tundra is for attaching

tow line only.

Optional Candy Dropper

Mounting the optional Candy Dropper is quick and easy. Position the foam filler over the mounting holes on the underside of the fuselage (A). Feed the Y-lead supplied with the dropper through the center hole and connect to a spare channel on your Rx (B). Secure the dropper using the bolts that

with it to the fuselage (C).

B.B.

Page 18

Optional Skis

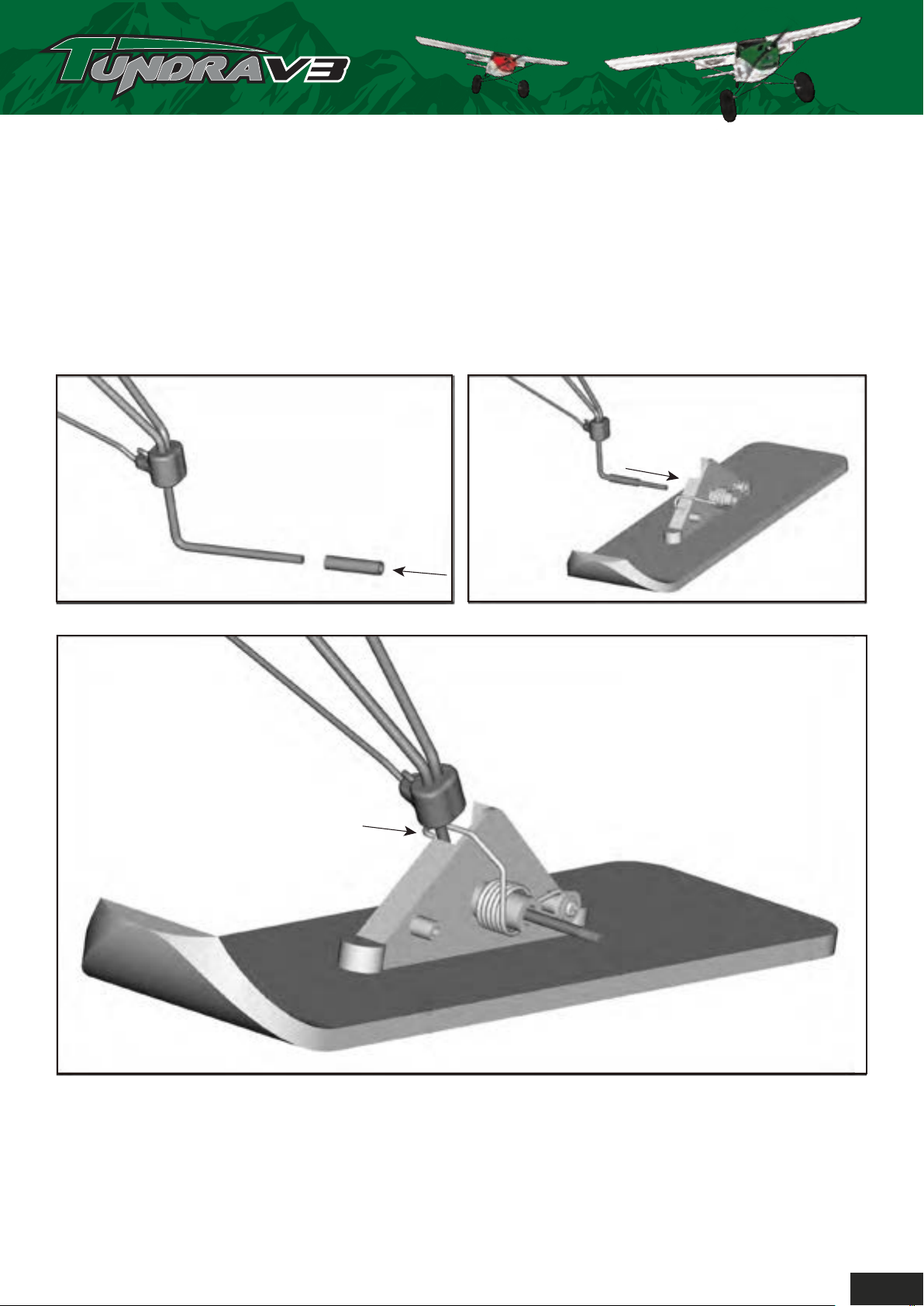

The optional skis are a worth while addition to the Tundra for flying from both snow and soft sand. First remove the main wheels and slide the plastic sleeve over both axles (A). Then slide each ski onto the axle/sleeve (B) and once in position hook the tension spring around the back of the landing gear wire (C).

Note:

You may wish to add a collet to the axle to give the assembly additional security.

A. B.

Page 19

Model Flying Precautions

Select your fl and buildings and away from crowed areas. Avoid flying in areas with roads, electric/telephone poles/wires and water near by (unless using the floats) or within close proximity to full size air traffic.

Do not fly this model in poor weather. High winds, low visibility, inclement temperatures, rain and

storms are to be avoided.

Never attempt to catch this model whilst in flight. Even a slow moving model can cause harm to yourself and others, and also risks damage to the model.

This model is what age, should always be supervised by a capable and responsible adult when operating this model.

Always unplug your model battery when not in use. Never leave the battery installed in the model.

Remember to keep clear of the propeller at all times when your flight battery is connected.

Before flying, always turn on your transmitter first then plug your flight battery into the model.

After flying, always unplug your flight battery first then turn off your radio transmitter.

ying area carefully. Always choose an open space that is unobstructed from trees

not recommended for children younger than 14 years of age. All children, no matter

Exercise caution when charging your batteries and follow in full your battery manufacture s safety guideline when doing so.

Pre-flight Checks

1. Always range check your model before any flight (especially when flying a new model for the first time). Follow your radio manufacturers guidelines for performing this check.

2. Check all screw/bolts and mounting points are firmly secured, including control horns and clevises.

3. Only fly with fully charged batteries (both in your radio and model). Failure to do so could result in loss of control, damage to the model and/or persons/property around you. Check your batteries are fully charged.

With the free from damage/obstructions, moving in the correct directions and freely with the stick inputs.

5. Inspect the model and prop for any damage that may have occurred during transit and listen for any unusual sounds from the electronics when powered up. If in doubt, do not fly.

With the model held securely and the prop free of obstructions, increase the throttle just slightly to confirm the rotation of the prop is correct. The model should want to pull straight forward with throttle and with forwards selected on the ESC.

model powered up (Transmitter on first, then receiver/model) check that all surfaces are

If this the battery position inside the model accordingly.

If you are an inexperienced model pilot seek the help and assistance of an experienced pilot to perform these final checks and to test fly the model for you.

is your first flight with the model double check the C/G is at the correct position. If not adjust

Page 20

Flying The Tundra :

The Durafly Tundra is both an easy and versatile aircraft to fly and has no special

considerations when it comes to flying but do make sure you’ve followed the set-up guidelines

and recommendations in this manual thoroughly

Thanks to the powerful motor and prop combination you can be off the ground (or water) within just

a matter of meters

that! Once you have your model trimmed, the real fun starts with the zero rollout, full flap take offs,

just be ready to hold in some down

, full throttle sport flying allows you to explore the full aerobatic potential of the Tundra, where as

at lower speeds and with an indulgent use of the flaps, the Tundra really comes into its own with

almost full STOL type flying characteristics, flying slow has never been so much fun. On the ground

too, with the very authentic bush style tires and functional sprung undercarriage, the ground never

looked so inviting. With the Tundra rolling across the ground is just as exhilarating as rolling through

the air.

if you are looking for a nice long rolling take-offs however where’s the fun in

! In the air the Tundra is super stable at a speeds

the best flying experience.

As mentioned in the introduction, the Tundra V3 is fitted with extremely bright LED's, this makes it

suitable for flying from dawn to dusk. This and all the other attributes makes the Tundra V3 one of

the most versatile RC planes on the market today.

Page 21

Tundra Tips:

If flying from a hard surface (tarmac, asphalt) then remove the spring system from the

undercarriage to avoid excessive bouncing on landings.

When flying with floats of water, it is advised to always use at least half flaps on takeoff. Semi deployed flaps will greatly increase the Tundra's ability to lift off the water surface.

When landing on water, always land with a good amount of forward momentum to help achieve the smoothest water landings possible.

Use of water rudder should only be needed when flying from rough water . Generally the standard rudder alone is sufficient for flying off calmer waters

. Due to the added weight of the floats, a 1800mAh 4S would be a more suitable LiPo to use rather than the heavier 2200mAh 4S when flying from water. This will keep the overall wing loading .

If you intend to perform STOL style landings often with your Tundra, it is suggested you use the optional tail brace upgrade supplied with most models. This will greatly improve the strength and rigidity of the tail which will be of great benefit with the higher forces at play with landing STOL

For optimum flight performance/model longevity, it is highly recommended that you always fly with a balanced prop. The supplied prop should be balanced, but it’s always good to check first.

Keep all leads within the fuselage area as tidy as possible. Tidy wires look better, allow for easier access to all internal components, better battery installation, increased airflow around

electronics and a reduction in potential electronic signal interference (noise).

Do not leave your model in direct sunlight for prolonged periods of time. This will have an adverse effect on the foam surface of the model.

Thank you again for purchasing the Durafly Tundra,

we know you’ll enjoy it immensely.

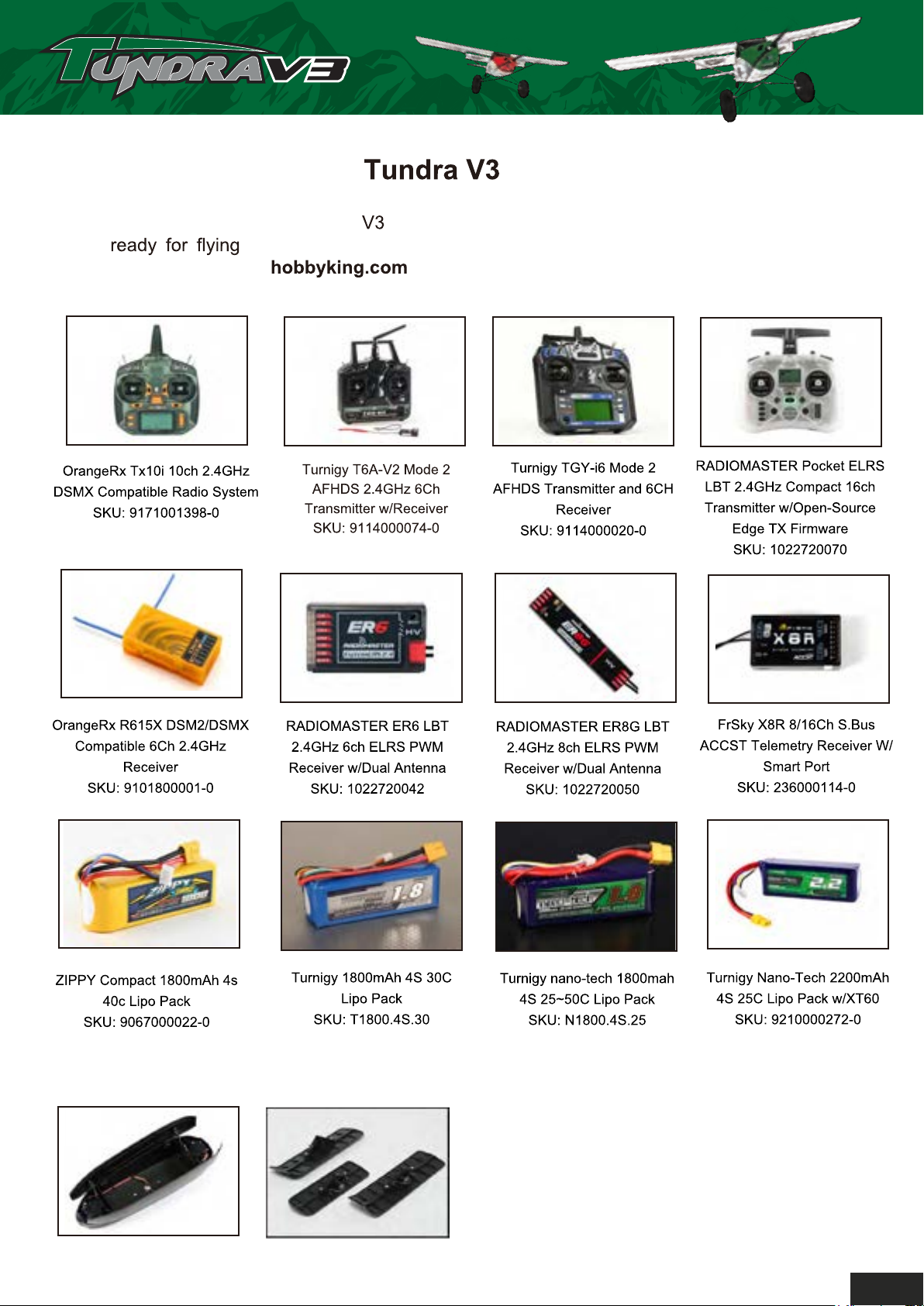

Don’t forget, spare parts are available for this model,

please see below for details.
